House Plan 418 Canoe Point, Riverbend House Plan

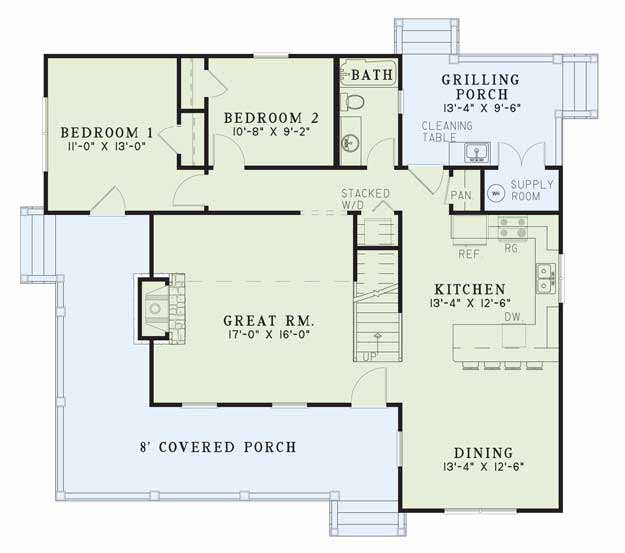

House Plan NDG 418 Main Floor
>
House Plan NDG 418 Main Floor

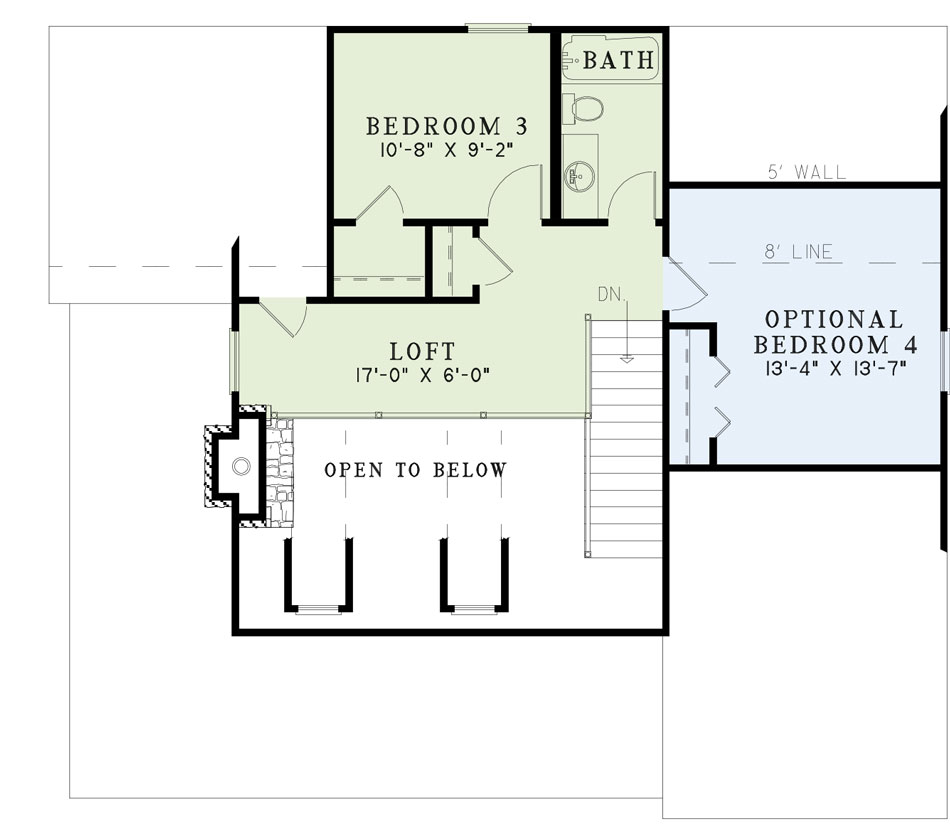

Floor plans

NDG 418

House Plan 418 Canoe Point, Riverbend House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 418
  • Total Living Space:1472Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 44
  • Width In.: 2
  • Depth Ft.: 39
  • Depth In.: N/A

Description

They sat down on the front porch and watched as the canoes floated by. People always enjoyed canoeing at this point of River Bend because of its thrilling rapids. Watching the canoes was a family event because of the variety of expressions on the canoeist faces and the screams of excitement as they battled the rapids. Mom would make scorecards for everyone to hold up to rate the thrill seekers on their skills. Canoe Point was a memorable place that was familiar to all.

Specifications

  • Total Living Space:1472Sq.Ft.
  • Main Floor: 1140 Sq.Ft
  • Upper Floor (Sq.Ft.): 332 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 199 Sq.Ft.
  • Porch (Sq.Ft.): 519 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1991 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
