House Plan 434 Dogwood Avenue, French Traditional House Plan

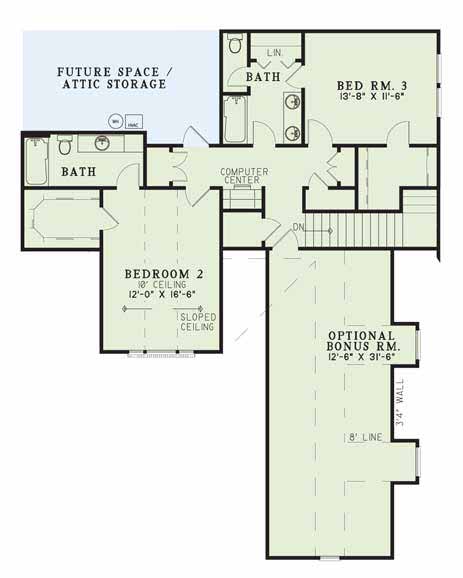

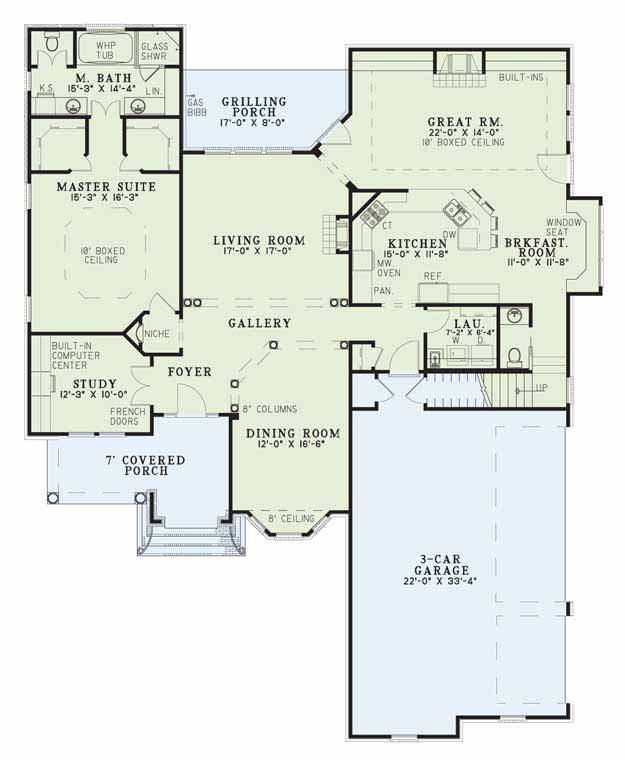

Floor plans
NDG 434
House Plan 434 Dogwood Avenue, French Traditional House Plan
Plan Details
- Plan Number: NDG 434
- Total Living Space:2949Sq.Ft.
- Bedrooms: 3
- Full Baths: 3
- Half Baths: 1
- Garage: Yes 3 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 59
- Width In.: N/A
- Depth Ft.: 73
- Depth In.: N/A
Description
The unmatched curb appeal of this spacious home showcases a covered, arched entry, bay window and multiple gables as part of an eye-catching exterior. Inside, the great room is located at the rear of the house, blending with the breakfast room and kitchen. A snack bar, fireplace, wide window seat and built-ins make this a special family gathering place. Also included are three elegant bedroom suites so there is no squabbling over shared bathroom time. Upstairs you’ll find a centrally located computer center providing a great place for homework.
Specifications
- Total Living Space:2949Sq.Ft.
- Main Floor: 2126 Sq.Ft
- Upper Floor (Sq.Ft.): 823 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 442 Sq.Ft.
- Porch (Sq.Ft.): 390 Sq.Ft.
- Garage (Sq.Ft.): 733 Sq.Ft.
- Total Square Feet: 4514 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 12:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 32
- Ridge Height (In.): 10
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
