House Plan 453 Heather Ridge, Multi-Family House Plan

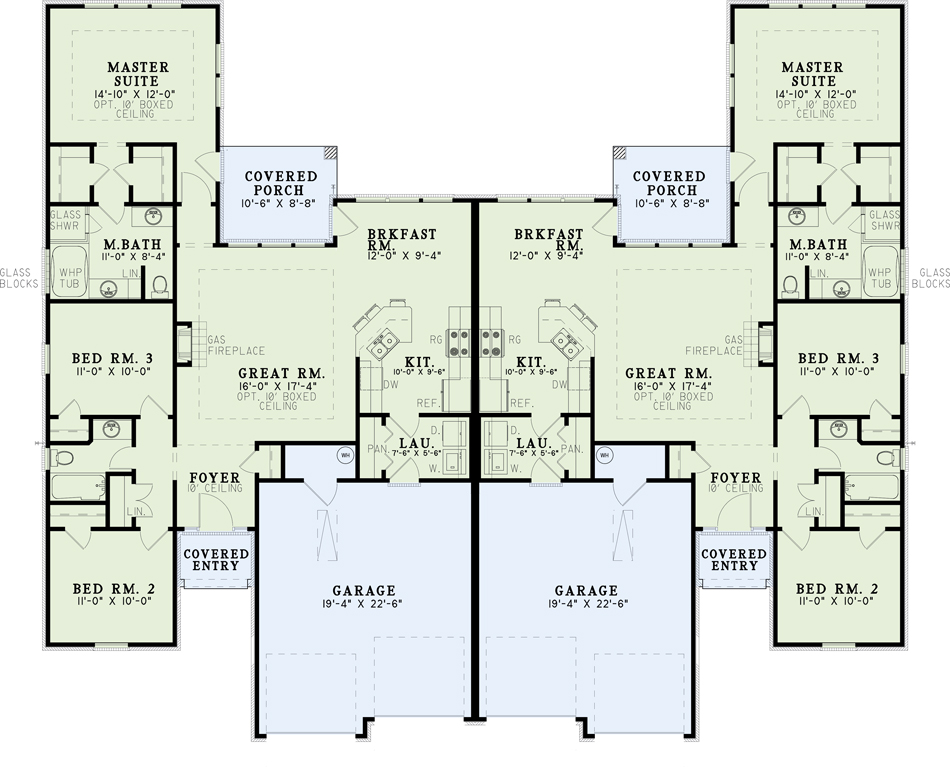

Floor plans

NDG 453

House Plan 453 Heather Ridge, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 453
  • Total Living Space:1379Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 76
  • Width In.: 8
  • Depth Ft.: 65
  • Depth In.: 6


This duplex incorporates living areas at the rear of the home along with a covered porch making this perfect for a lake or golf course community. The foyer has a ten foot ceiling giving a feeling of spaciousness as well as ten foot boxed ceilings in both the Great Room and Master Suite. The kitchen has bar seating and immediate access to a large pantry and laundry room for convenience. The Master Suite includes his and her closets that separate the master bathroom from a spacious Master Bedroom full of windows for plenty of natural lighting.


  • Total Living Space:1379Sq.Ft.
  • Main Floor: 1379 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 400 Sq.Ft.
  • Garage (Sq.Ft.): 579 Sq.Ft.
  • Total Square Feet: 2358 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
