House Plan 480 Aspen Heights, French Traditional House Plan
Plan Details
- Plan Number: NDG 480
- Total Living Space:1764Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 47
- Width In.: 8
- Depth Ft.: 44
- Depth In.: 10
Description
A life of leisure awaits you in this stylish, split bedroom home. A romantic corner fireplace and vaulted ceiling welcome you to an impressive great room. The U-shaped kitchen serves the nearby breakfast bay and dining room. A large grilling porch adorned with decorative columns is ideal for enjoying the outdoors while entertaining friends and family. A lavish master suite showcases a vaulted ceiling, his and her walk-in closets, separate sink vanities and a whirlpool tub. The bonus area downstairs offers plenty of options for future expansion.
Specifications
- Total Living Space:1764Sq.Ft.

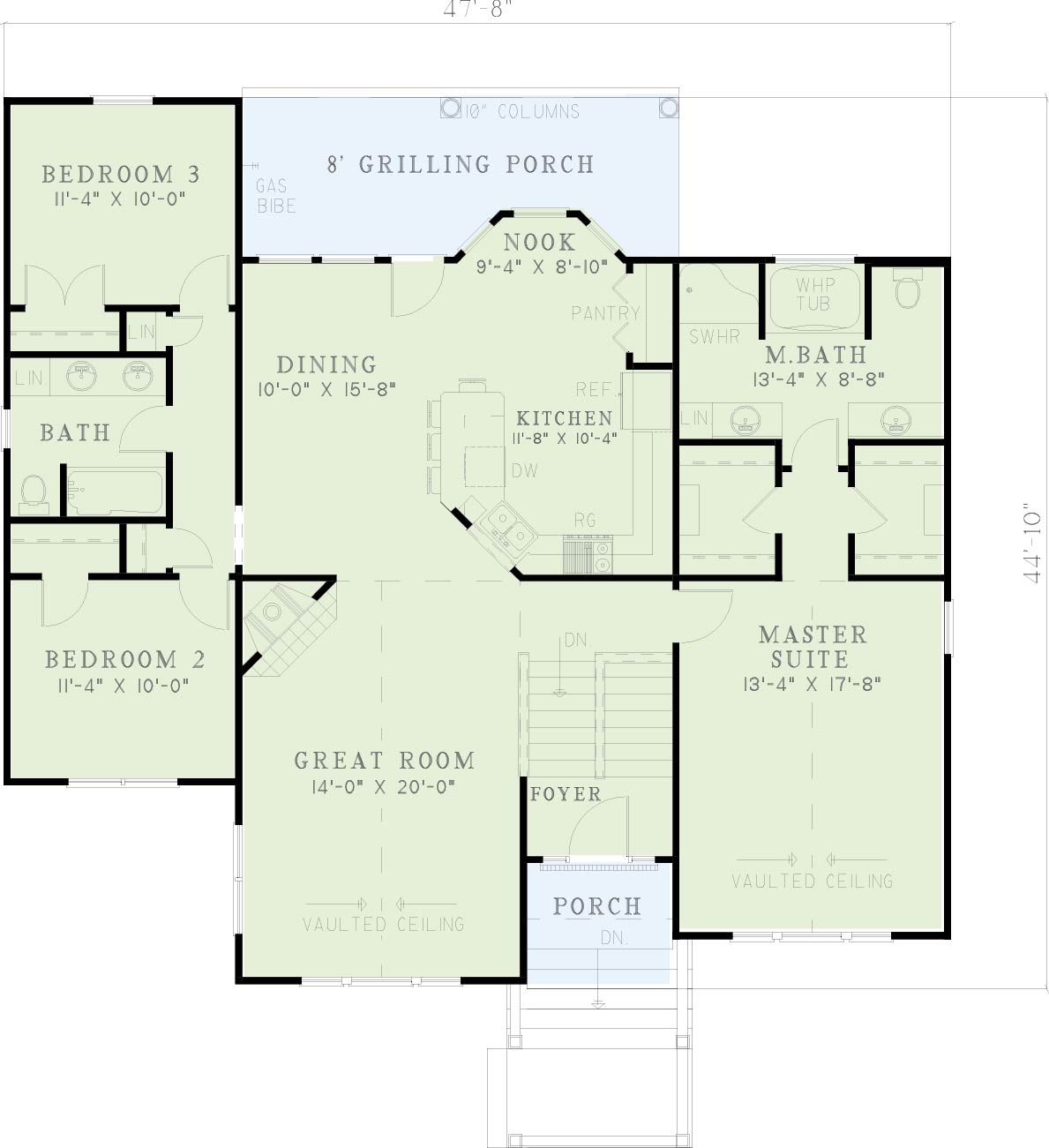

- Main Floor: 1661 Sq.Ft
- Upper Floor (Sq.Ft.): N/A

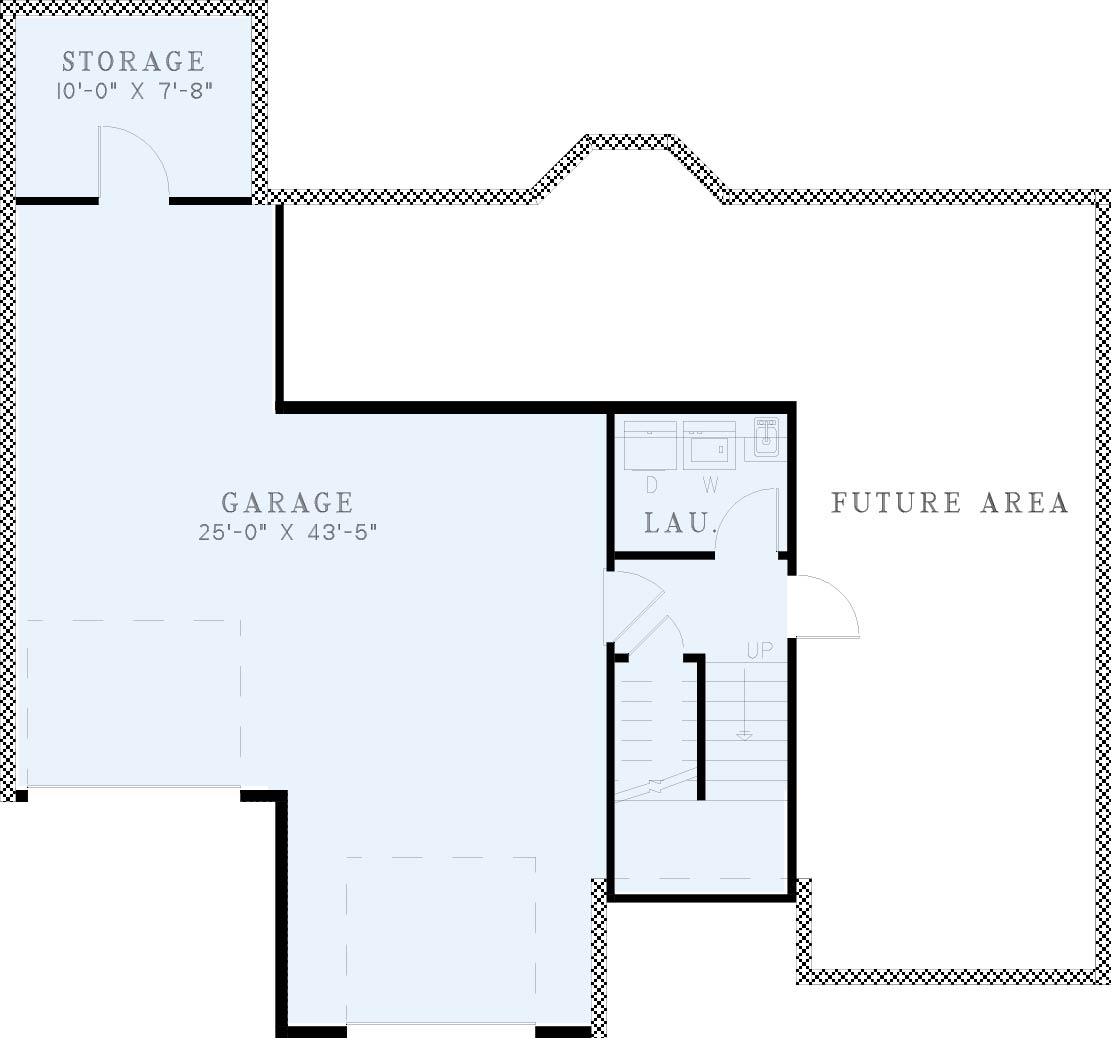

- Lower Floor (Sq.Ft.): 103 Sq.Ft.
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 192 Sq.Ft.
- Garage (Sq.Ft.): 737 Sq.Ft.
- Total Square Feet: 3376 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: 8
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: 10:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 32
- Ridge Height (In.): 1
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): 683 Sq.Ft.
