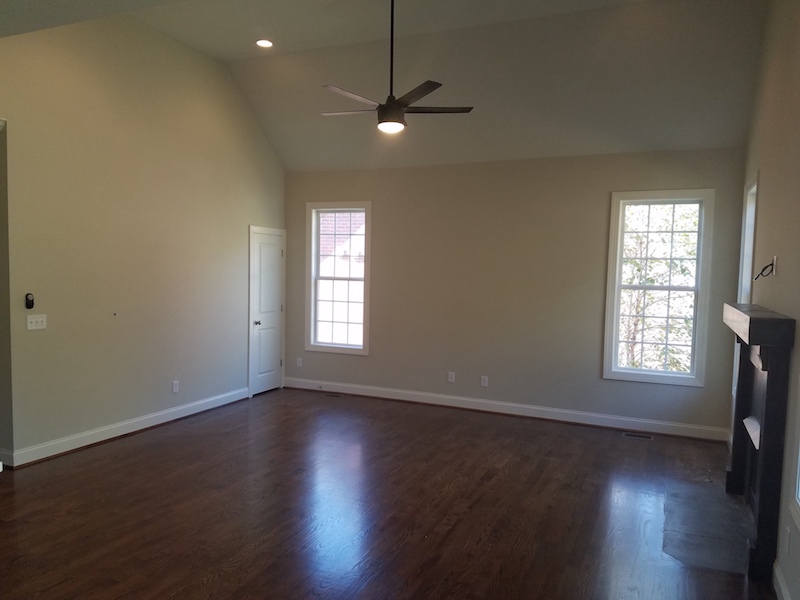

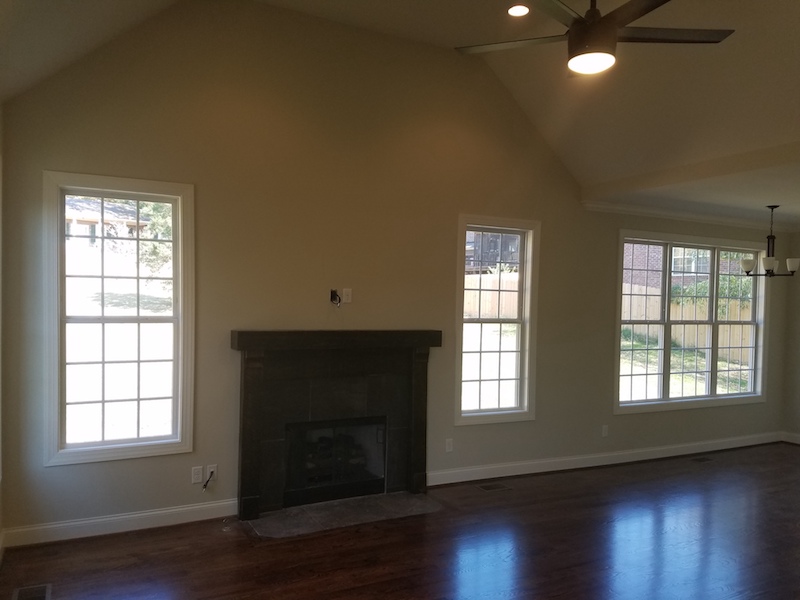

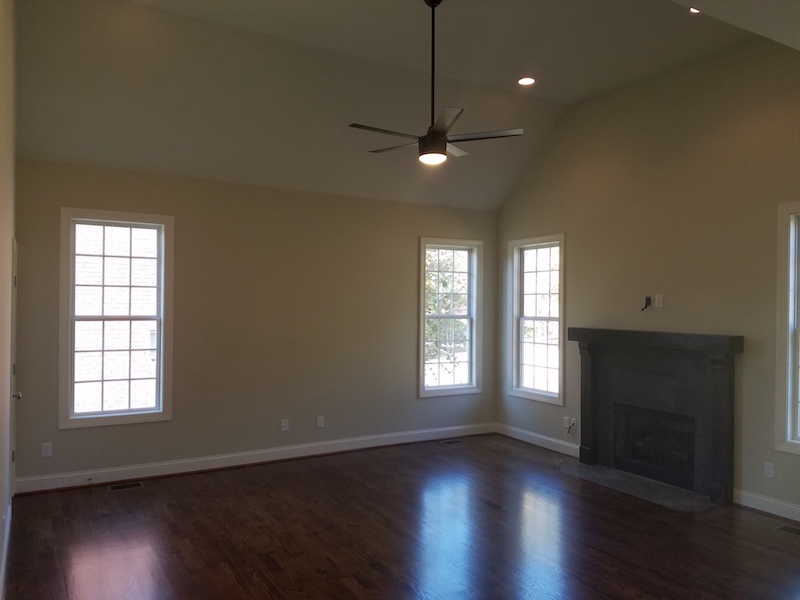

House Plan MEN 5017 Great Room>
House Plan MEN 5017 Great Room>
House Plan MEN 5017 Great Room>
House Plan MEN 5017 Great Room>

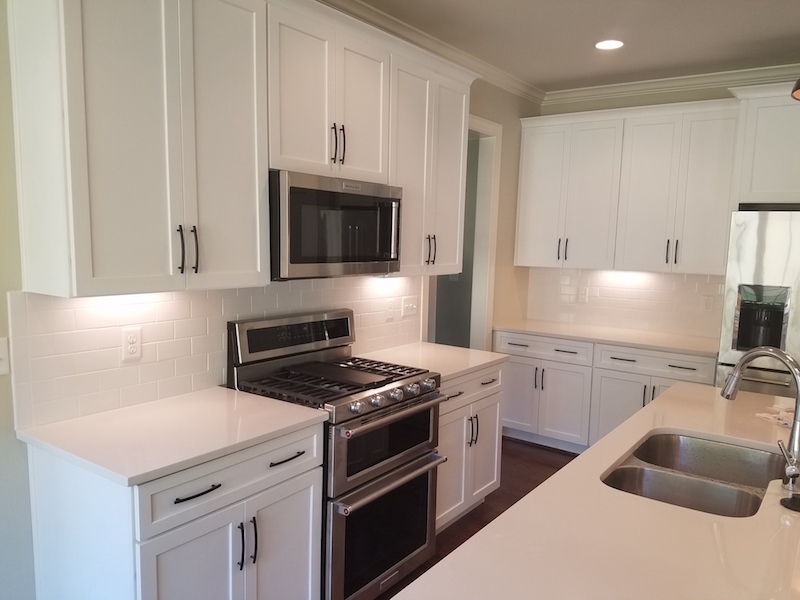

House Plan MEN 5017 Kitchen>
House Plan MEN 5017 Kitchen>
House Plan MEN 5017 Kitchen>

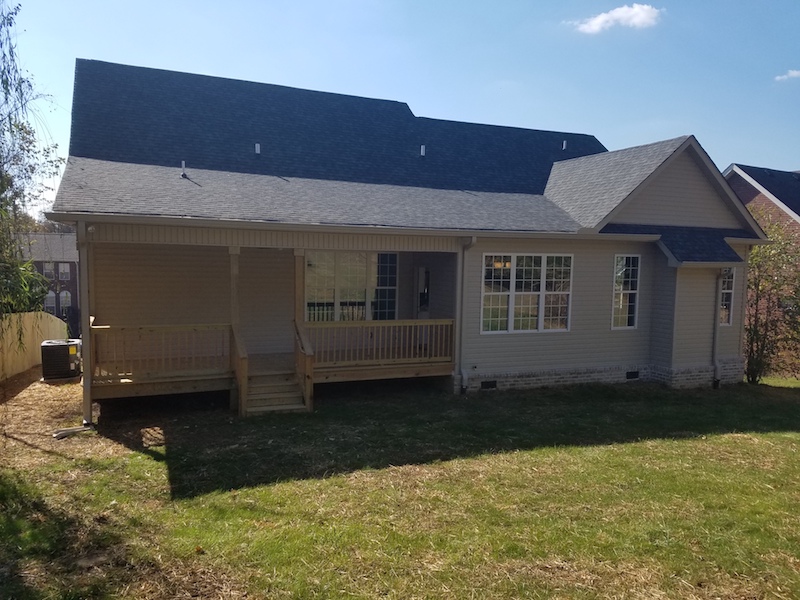

House Plan MEN 5017 Rear Exterior>

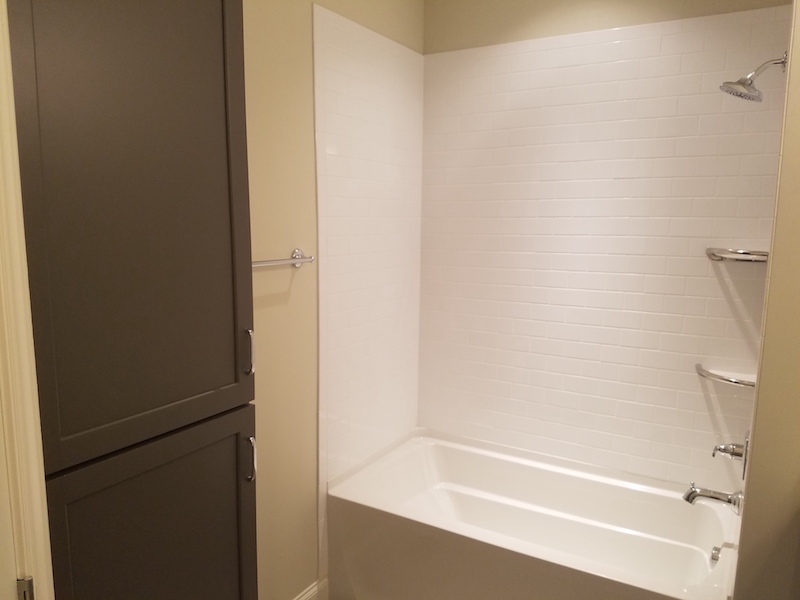

House Plan MEN 5017 Hall Bath>
House Plan MEN 5017 Hall Bath>

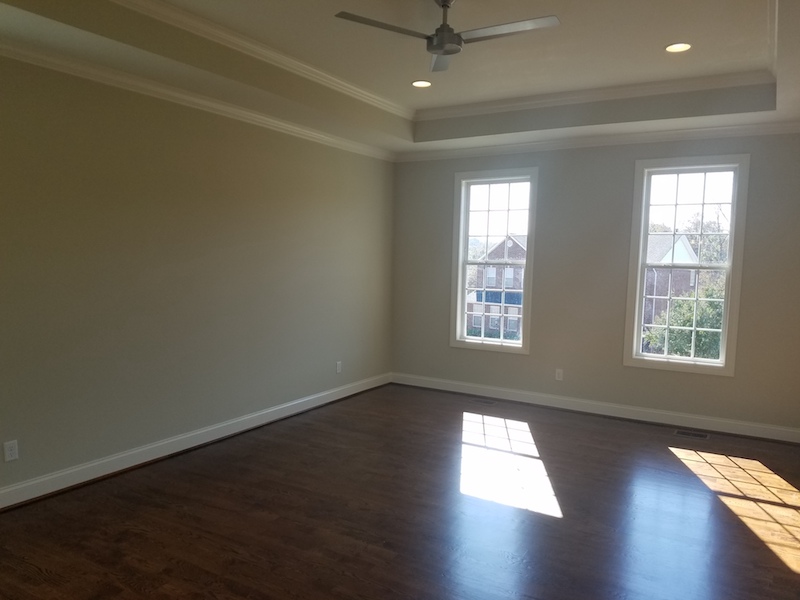

House Plan MEN 5017 Master Suite>
House Plan MEN 5017 Master Bath>

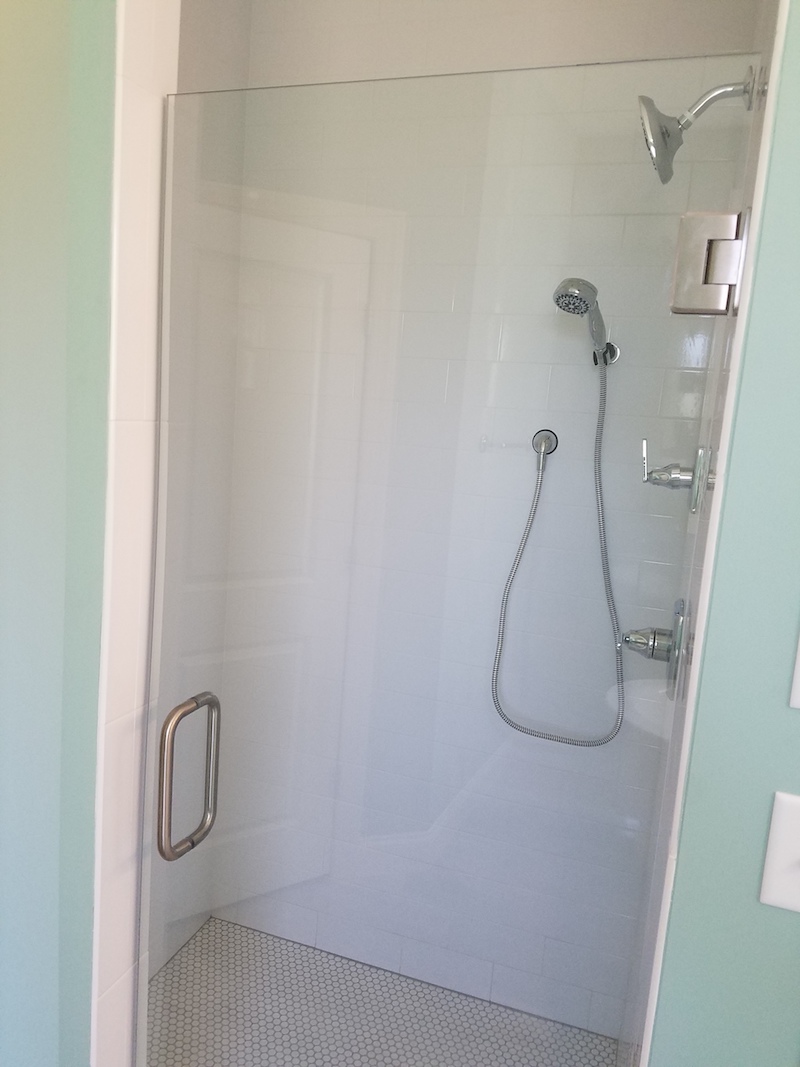

House Plan MEN 5017 Master Bath>

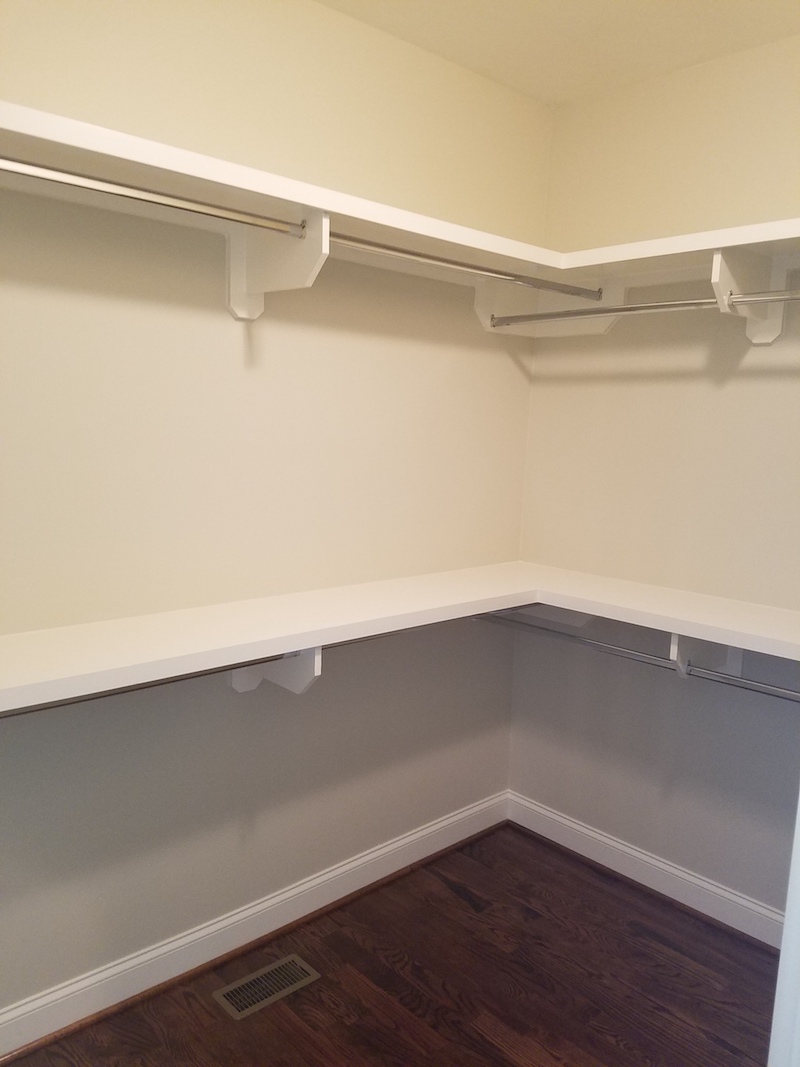

House Plan MEN 5017 Master Closet>

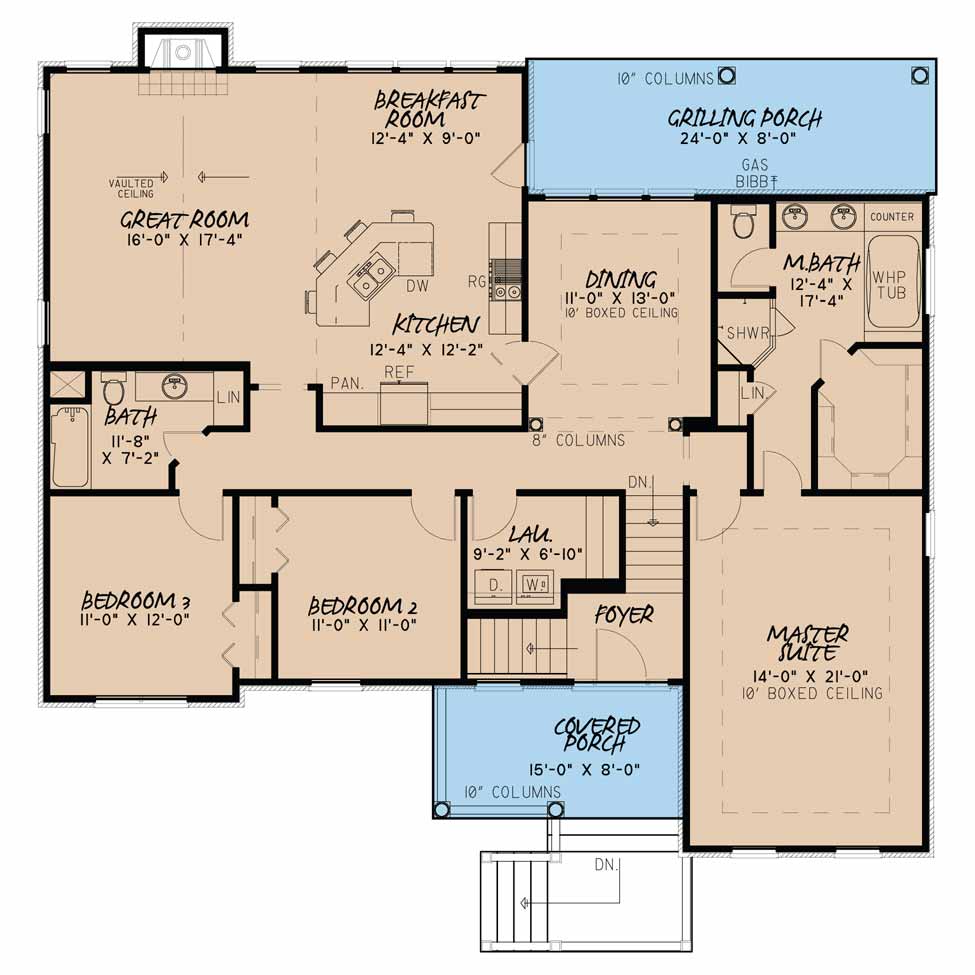

House Plan MEN 5017 Main Floor

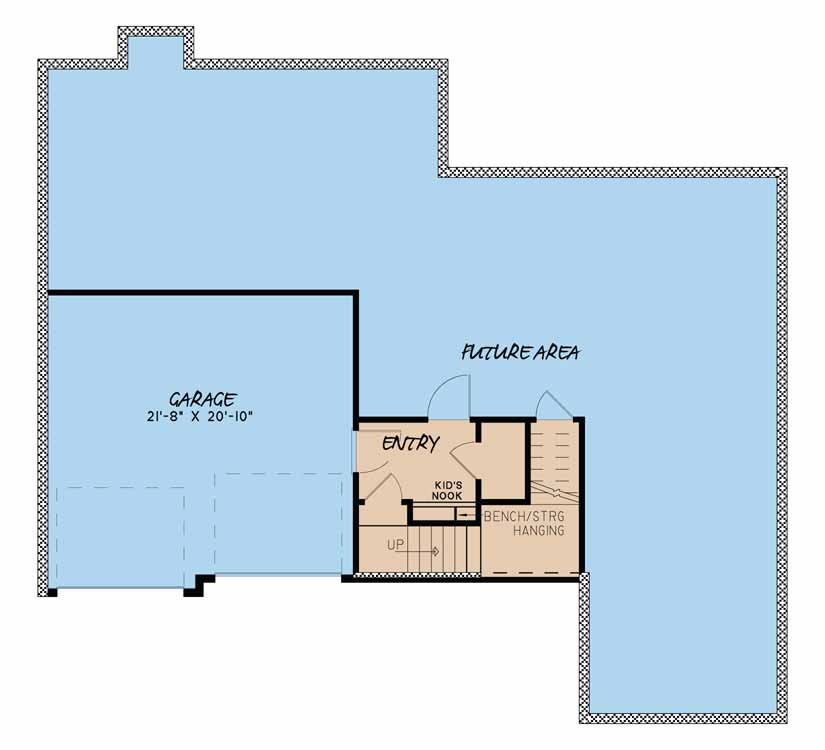

House Plan MEN 5017 Basement

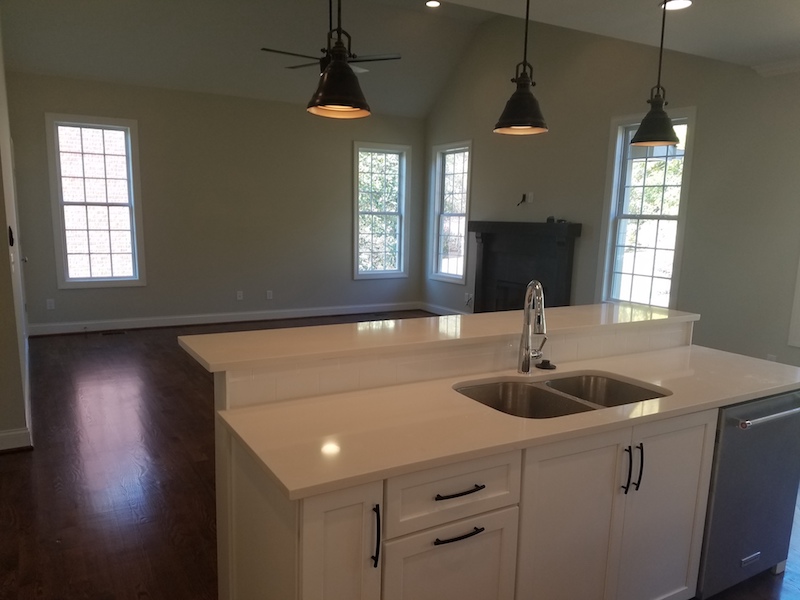

House Plan MEN 5017 Great Room
House Plan MEN 5017 Great Room
House Plan MEN 5017 Great Room
House Plan MEN 5017 Great Room

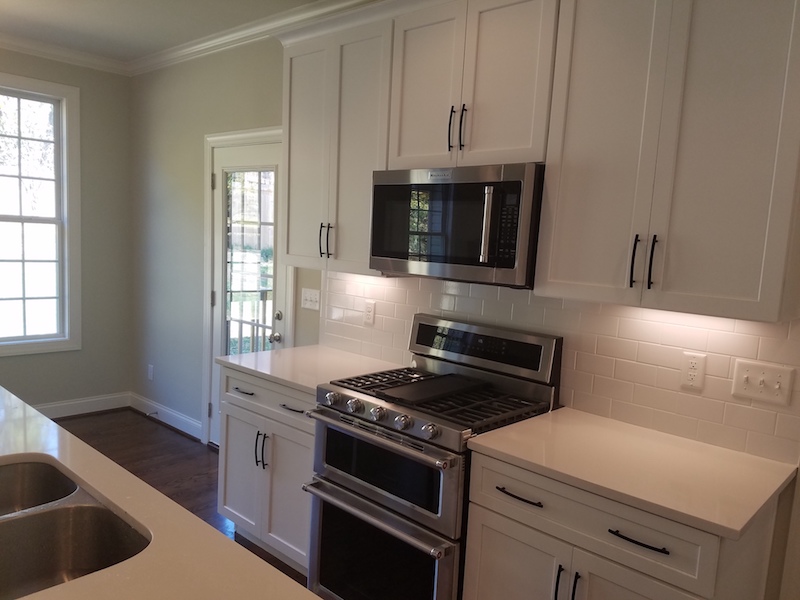

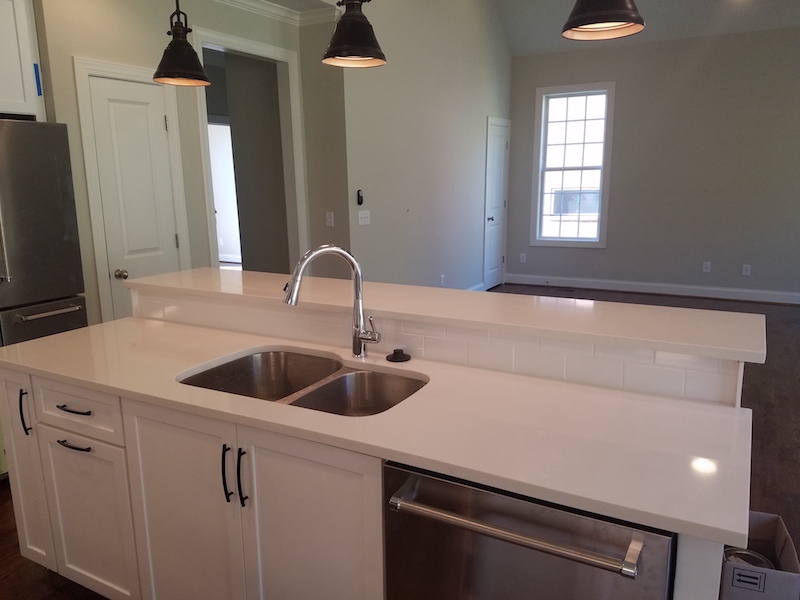

House Plan MEN 5017 Kitchen
House Plan MEN 5017 Kitchen
House Plan MEN 5017 Kitchen

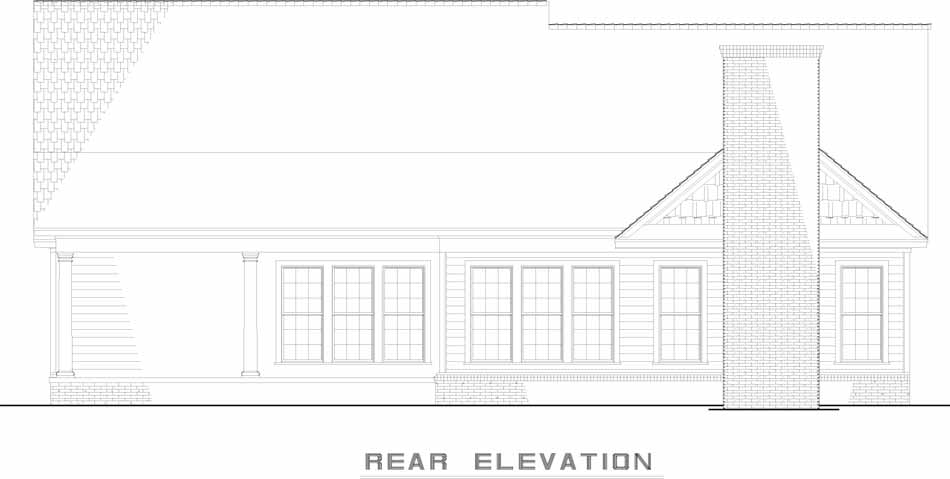

House Plan MEN 5017 Rear Exterior

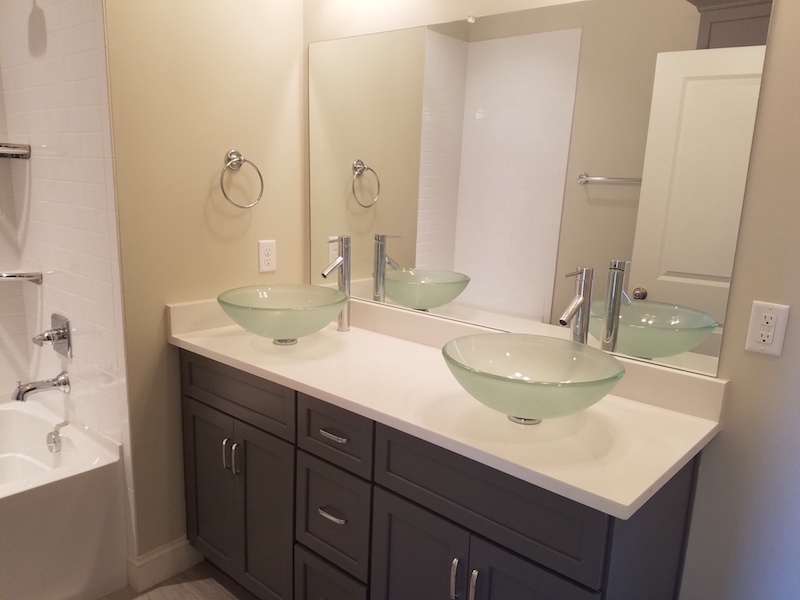

House Plan MEN 5017 Hall Bath
House Plan MEN 5017 Hall Bath
House Plan MEN 5017 Master Suite
House Plan MEN 5017 Master Bath
House Plan MEN 5017 Master Bath
House Plan MEN 5017 Master Closet

Floor plans

MEN 5017

House Plan 5017 Hamilton Cove, Traditional House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: MEN 5017
  • Total Living Space:2035Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 53
  • Width In.: N/A
  • Depth Ft.: 49
  • Depth In.: 4

Description

This Michael E. Nelson design combines luxury and tradition. Entry into this home will lead you to the upper level which is the main living area. You will find an open floor plan, split bedroom design. The spacious master suite is located on the right side of the home and features a large walk-in closet and luxurious bath. Bedrooms 2 and 3 and a hall bath are located on the opposite side of the home. Downstairs you will find a large area that can be used for future expansion needs.

Future Area 1266 Sq.Ft

Specifications

  • Total Living Space:2035Sq.Ft.
  • Main Floor: 1935 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 100 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 304 Sq.Ft.
  • Garage (Sq.Ft.): 466 Sq.Ft.
  • Total Square Feet: 4071 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 8
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): 1266 Sq.Ft.
