House Plan 5033 Cozy Point, Rustic House Plan

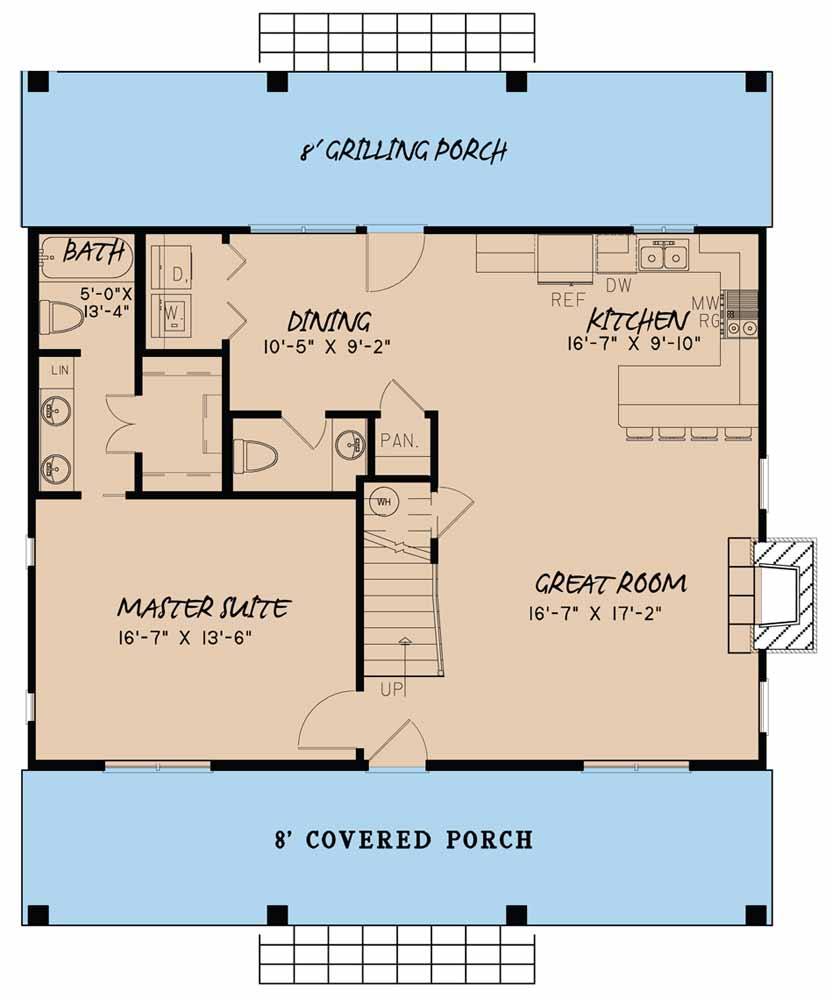

House Plan MEN 5033 Main Floor

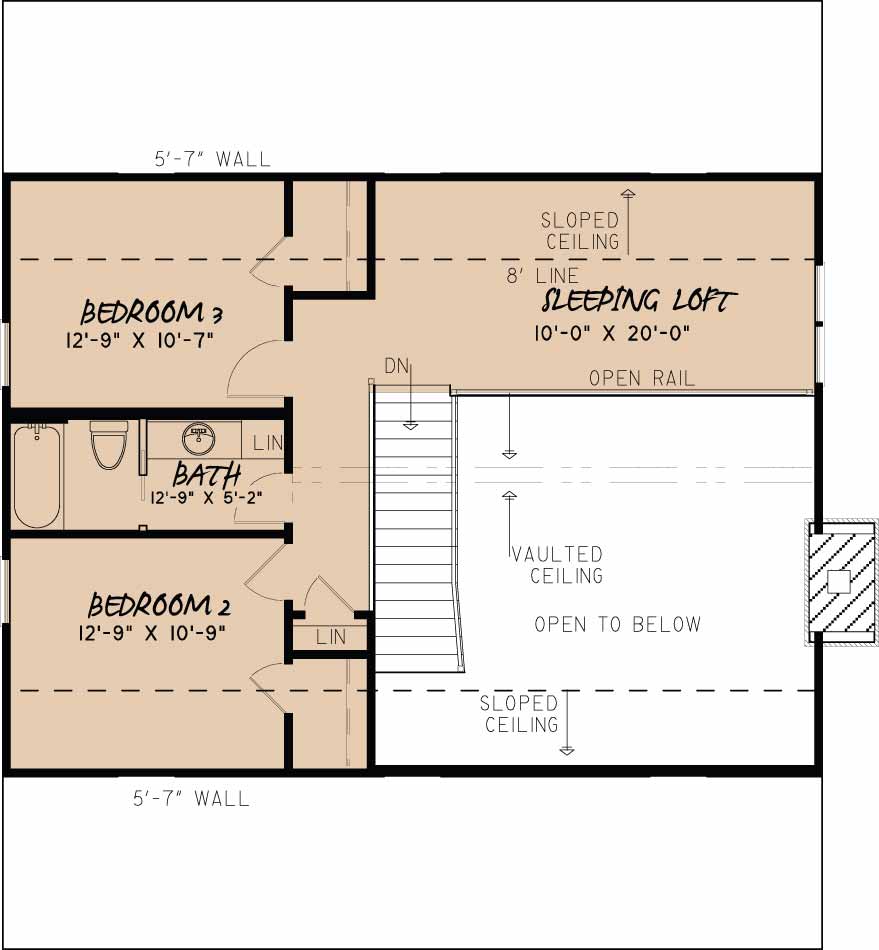

House Plan MEN 5033 Upper Floor
>
House Plan MEN 5033 Main Floor
House Plan MEN 5033 Upper Floor

Floor plans

MEN 5033

House Plan 5033 Cozy Point, Rustic House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: MEN 5033
  • Total Living Space:1764Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 38
  • Width In.: N/A
  • Depth Ft.: 44
  • Depth In.: N/A

Description

Welcoming you into this cozy home is a lovely covered front porch, perfect for spend the evenings enjoying the beautiful outdoors. Step inside and you'll see that designer Michael E. Nelson used ever inch of space in this home. With a great open floor plan and plenty of bedrooms and a sleeping loft this house is perfect for a cozy home-away-from-home retreat.

Specifications

  • Total Living Space:1764Sq.Ft.
  • Main Floor: 1064 Sq.Ft
  • Upper Floor (Sq.Ft.): 700 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 608 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2372 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
