House Plan 5090 Ozark Retreat, Craftsman Bungalow House Plan

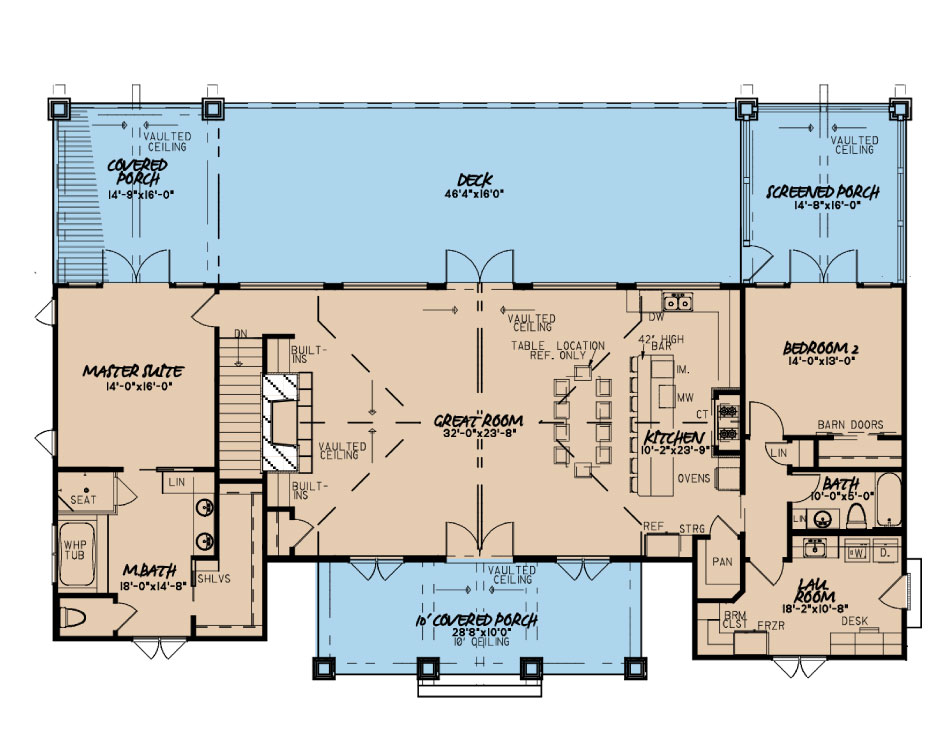

House Plan MEN 5090 Main Floor

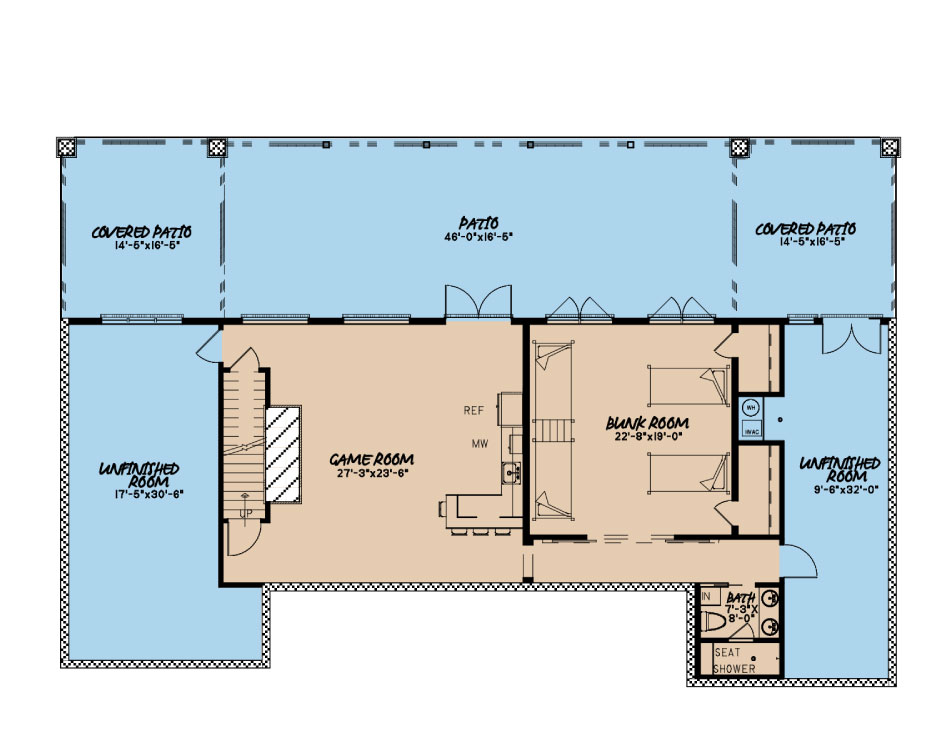

House Plan MEN 5090 Basement
House Plan MEN 5090 Main Floor
House Plan MEN 5090 Basement

Floor plans

MEN 5090

House Plan 5090 Ozark Retreat, Craftsman Bungalow House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: MEN 5090
  • Total Living Space:3415Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: N/A
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 75
  • Width In.: 8
  • Depth Ft.: 50
  • Depth In.: 8

Description

Take in every bit of your amazing view with this rustic house plan. The vaulted ceiling through the center of the home displaying large windows lets in an abundance of natural light that is shared by the open great room, dining room and kitchen. The master suite is privately situated on the left side of the home with a spacious walk-in closet and bathroom as well as a covered porch. On the opposite side of the home is bedrooms 2, a hall bath and the laundry room. Head down stairs and you'll find yourself in game room complete with a kitchenette, bunk room, bath room, unfinished basement storage and large patios.

Specifications

  • Total Living Space:3415Sq.Ft.
  • Main Floor: 2159 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1256 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 756 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 4171 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
