House Plan 522 Calais Drive, Renaissance House Plan

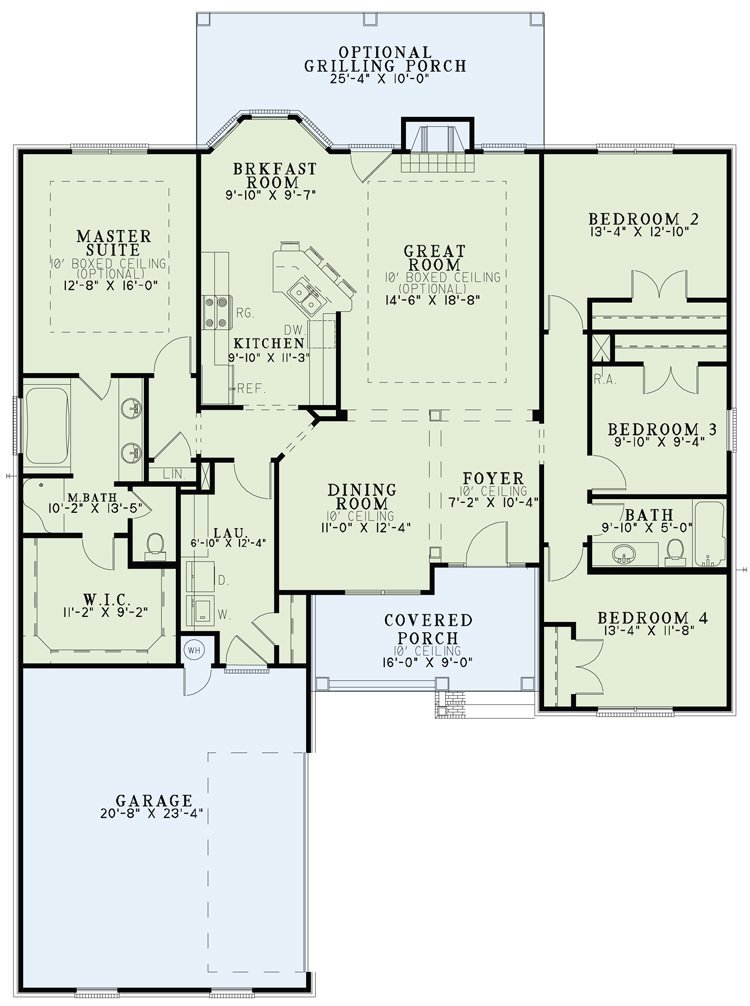

House Plan NDG 522 Main Floor
House Plan NDG 522 Main Floor

Floor plans

NDG 522

House Plan 522 Calais Drive, Renaissance House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 522
  • Total Living Space:1930Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: N/A
  • Depth Ft.: 71
  • Depth In.: 6


This enchanting home incorporates the best floor planning all in one level. The great room- which is convenient for those family gatherings that need extra room, is highlighted by the fireplace and a nine foot boxed ceiling. Easy access from the kitchen to the dining room makes hosting a dinner party more convenient. Entertain family and friends during the summer out on the rear grilling porch. As evening approaches, retreat to your master bath complete with large walk-in closet, double vanities, and corner whirlpool tub.


  • Total Living Space:1930Sq.Ft.
  • Main Floor: 1930 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 357 Sq.Ft.
  • Garage (Sq.Ft.): 509 Sq.Ft.
  • Total Square Feet: 2796 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
