House Plan 551 The Windsor, Florida House Plan

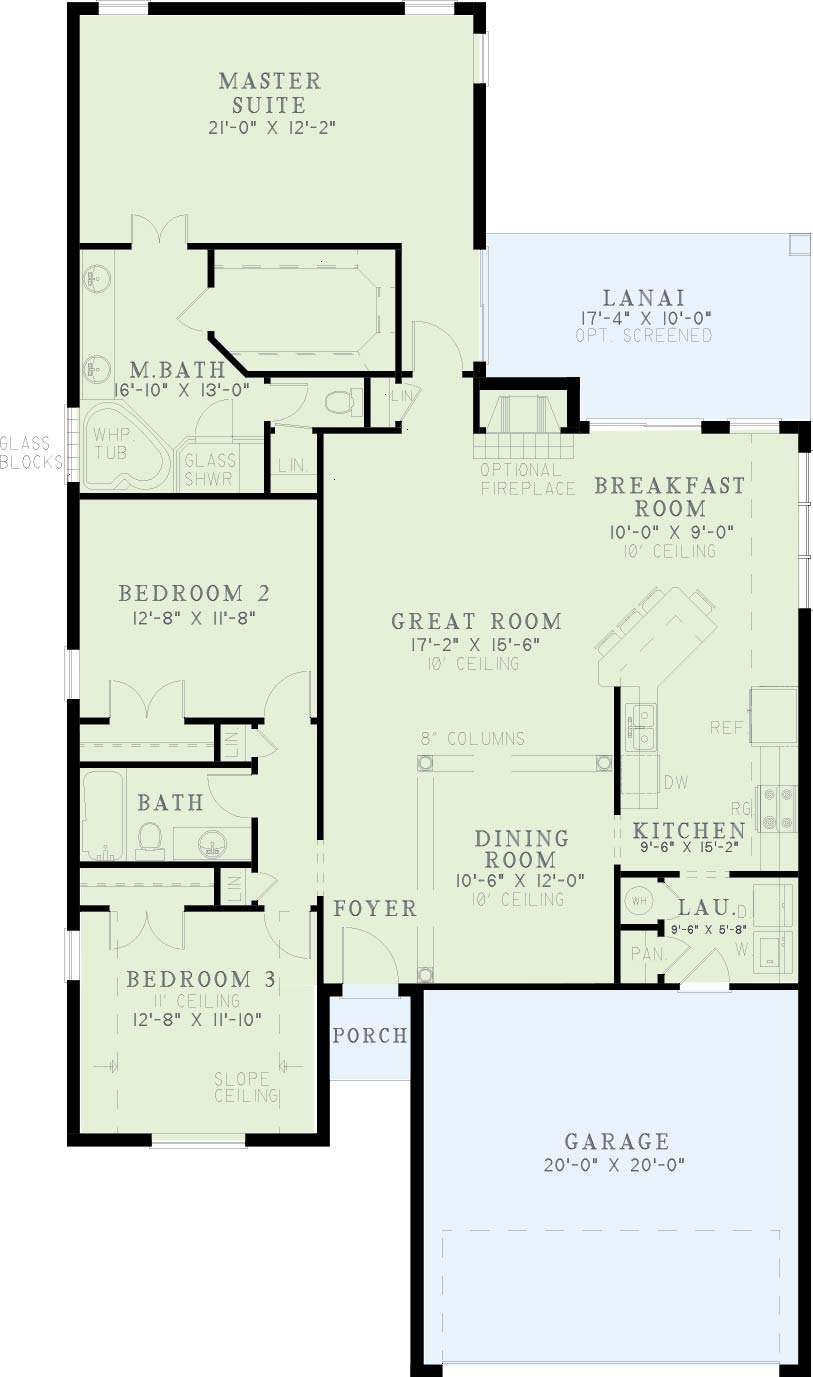

House Plan NDG 551 Main Floor
House Plan NDG 551 Main Floor

Floor plans

NDG 551

House Plan 551 The Windsor, Florida House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 551
  • Total Living Space:1818Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: 8
  • Depth Ft.: 73
  • Depth In.: 4


Note: 8-inch concrete wall construction and tile roofing. See NDG-101 for a standard wood-framed version.

A sheltered porch protects visitors from the elements in this efficient plan. The open foyer blends into the formal dining room offset by three stylish columns. The spacious walk-through kitchen features an angled snack bar and joins a window-filled breakfast room. The optional fireplace brightens the vast great room. The master suite boasts a private sliding door entrance to the lanai and a corner whirlpool tub backed with stylish glass blocks.


  • Total Living Space:1818Sq.Ft.
  • Main Floor: 1818 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 181 Sq.Ft.
  • Garage (Sq.Ft.): 440 Sq.Ft.
  • Total Square Feet: 2439 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: Concrete
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 6
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
