House Plan 557 The Anniston, Florida House Plan

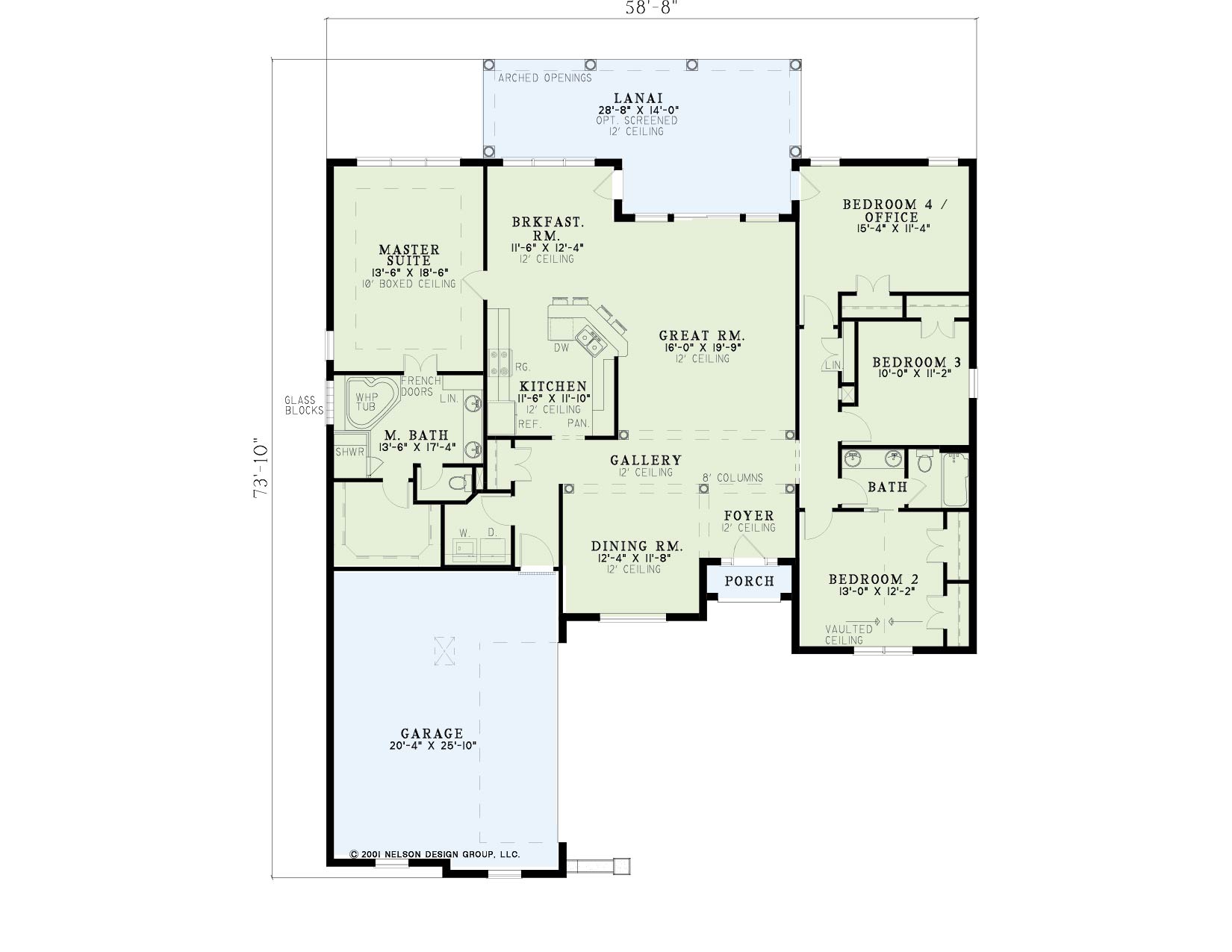

House Plan NDG 557 Main Floor

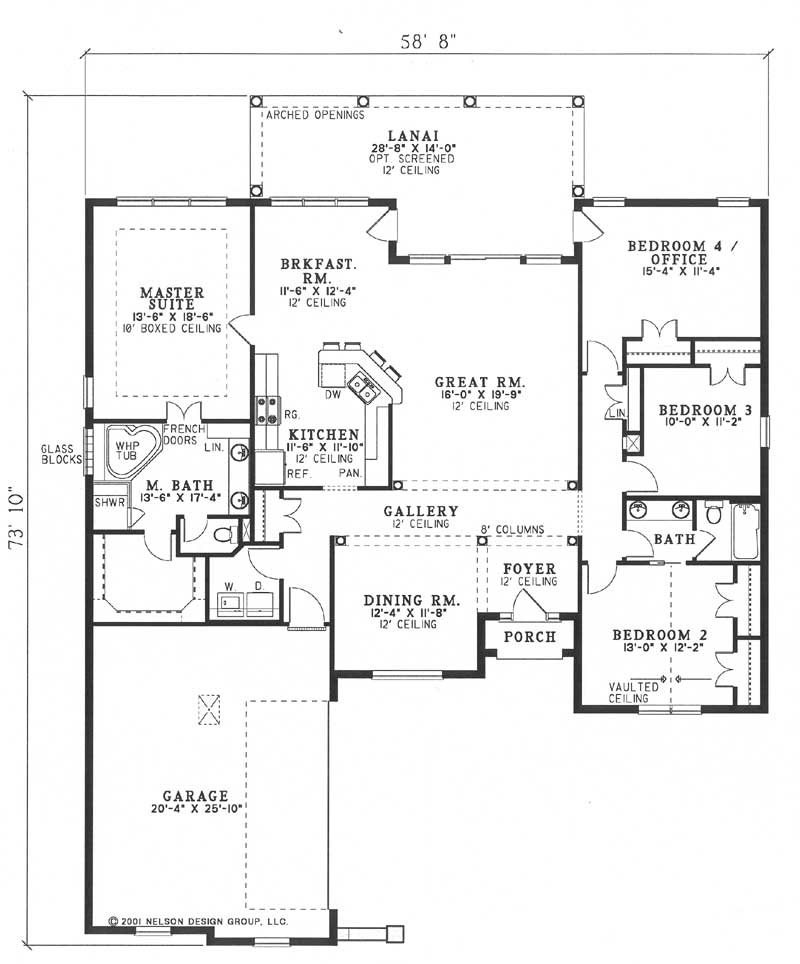

House Plan NDG 557 Main Floor

Floor plans

NDG 557

House Plan 557 The Anniston, Florida House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 557
  • Total Living Space:2287Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 1 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: 8
  • Depth Ft.: 73
  • Depth In.: 10


Note: 8-inch concrete wall construction and tile roofing. See NDG-202 for a standard wood-framed version.

Striking front and rear arches adorn this attractive four-bedroom plan. Inside a spacious foyer opens to an elaborate formal dining room column-lined gallery and expansive great room all sharing 12 foot ceilings. The fourth bedroom can do double-duty as an office and includes a private entrance to the screened lanai. French doors enhance the transition from the master bedroom to the bath that showcases a dual-sink vanity and oversized whirlpool tub backed by glass blocks.


  • Total Living Space:2287Sq.Ft.
  • Main Floor: 2287 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 363 Sq.Ft.
  • Garage (Sq.Ft.): 586 Sq.Ft.
  • Total Square Feet: 3236 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: Concrete
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 10
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
