House Plan 559 The St. August, Florida House Plan

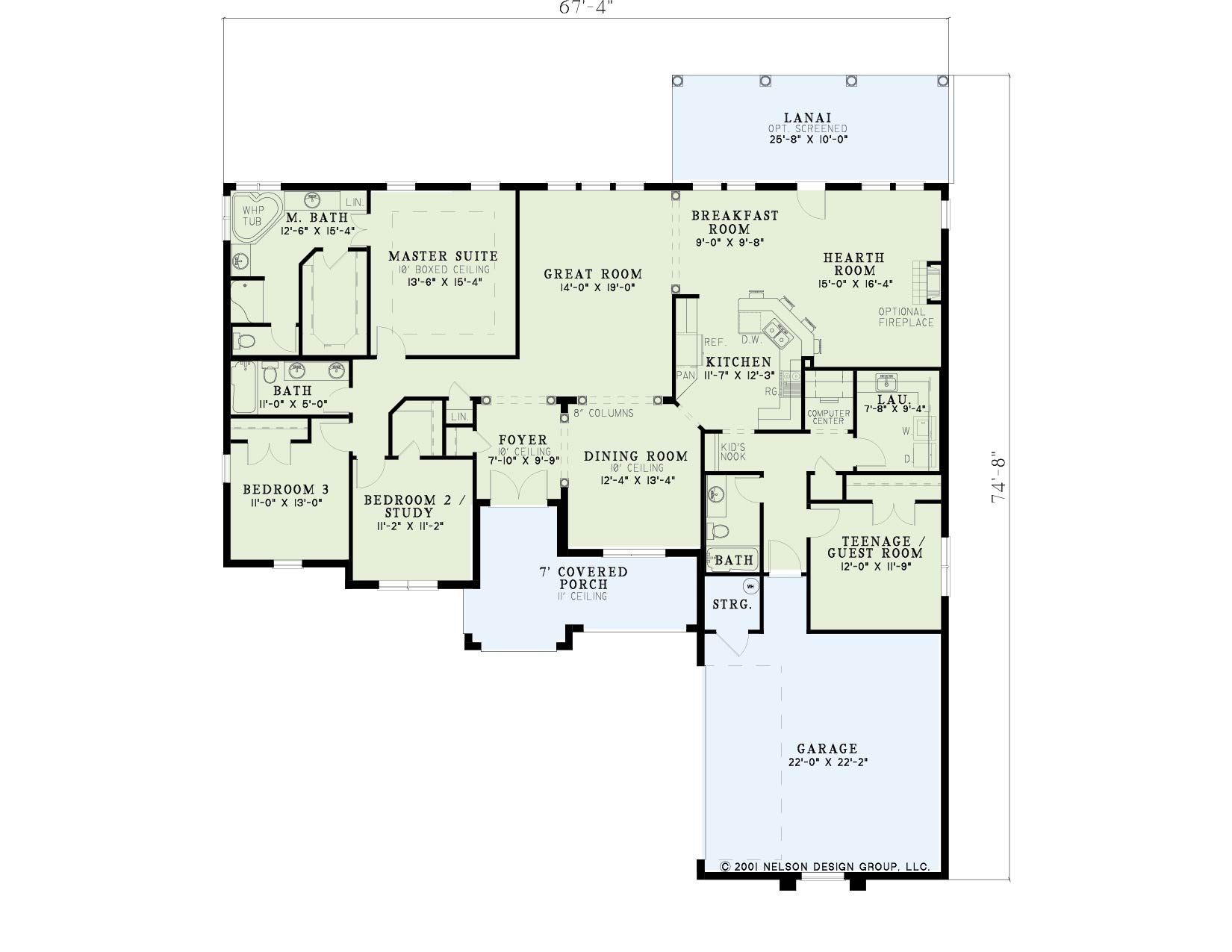

House Plan NDG 559 Main Floor
House Plan NDG 559 Main Floor

Floor plans

NDG 559

House Plan 559 The St. August, Florida House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 559
  • Total Living Space:2501Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 67
  • Width In.: 4
  • Depth Ft.: 74
  • Depth In.: 8


Note: 8-inch concrete wall construction and tile roofing; can be converted to wood. See NDG-472 for a similar standard wood-framed version.

You’re sure to appreciate the courtyard entry garage on this exquisite four-bedroom home. The kid’s nook helps keep backpacks and coats from getting misplaced. The centrally located kitchen enjoys a convenient snack bar and overlooks the radiant hearth room anchored by a cheery fireplace with access to the screened lanai. A teenager or overnight guest will enjoy the privacy offered by the isolated fourth bedroom. The splendid master suite showcases a corner whirlpool tub.


  • Total Living Space:2501Sq.Ft.
  • Main Floor: 2501 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 457 Sq.Ft.
  • Garage (Sq.Ft.): 569 Sq.Ft.
  • Total Square Feet: 3527 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: Concrete
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 8
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
