House Plan 578 Ermalena, Affordable House Plan

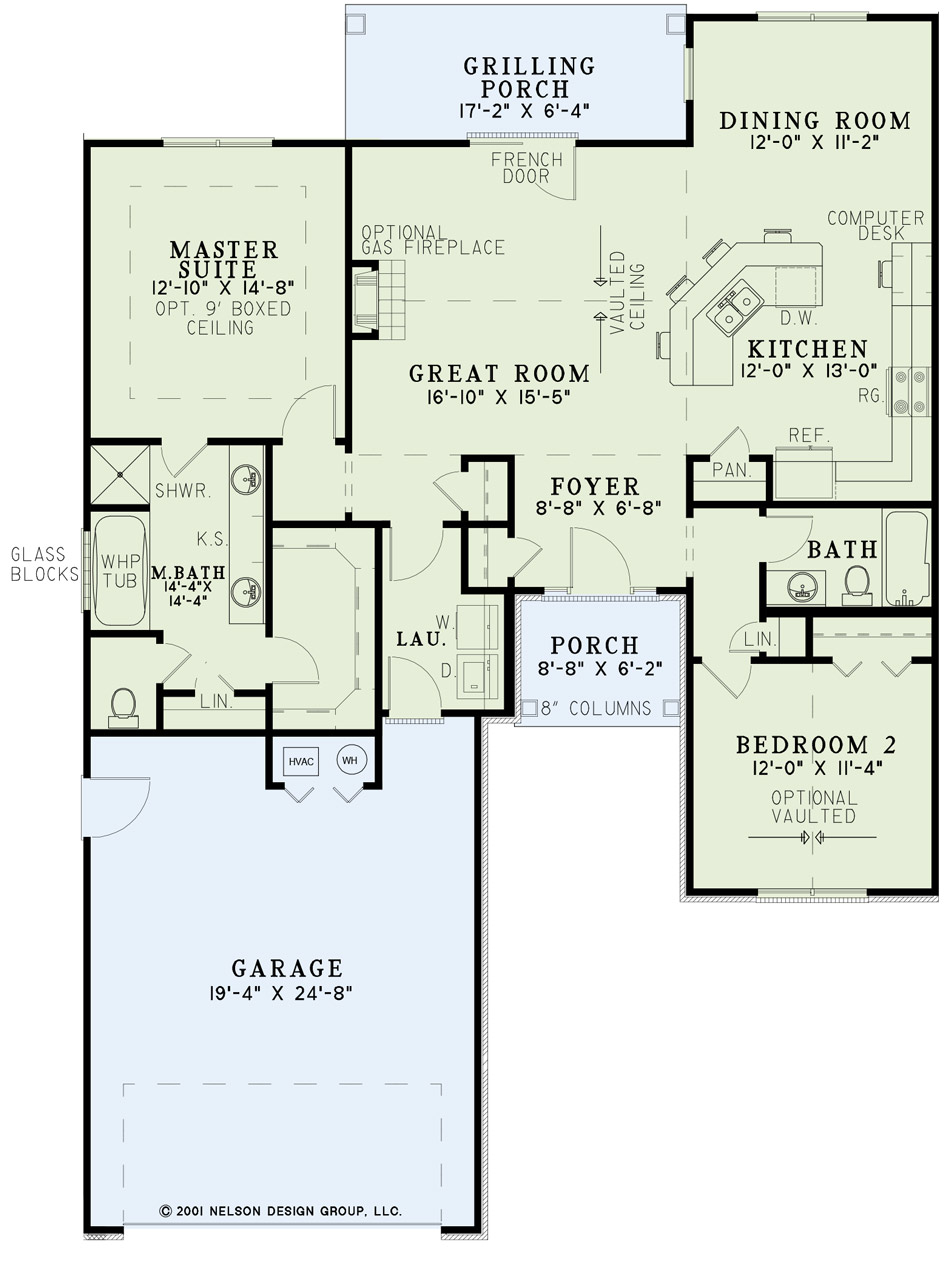

House Plan NDG 578 Main Floor
House Plan NDG 578 Main Floor

Floor plans

NDG 578

House Plan 578 Ermalena, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 578
  • Total Living Space:1403Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 43
  • Width In.: N/A
  • Depth Ft.: 61
  • Depth In.: 4


The boxed column entry and a lovely round-topped window help to give this Nelson Design Group home excellent street appeal. Once inside, the foyer ushers you and your guests into the great room with fireplace. The nearby kitchen merges with the dining room to create the ultimate family dinner or party setting, while the covered rear grilling porch lends outdoor options. A generous master suite and second bedroom help to complete this unique design.


  • Total Living Space:1403Sq.Ft.
  • Main Floor: 1403 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 175 Sq.Ft.
  • Garage (Sq.Ft.): 505 Sq.Ft.
  • Total Square Feet: 2083 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 8:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
