House Plan 593 Hannah Lane, Affordable House Plan
> Floor plans
NDG 593
House Plan 593 Hannah Lane, Affordable House Plan
Plan Details
- Plan Number: NDG 593
- Total Living Space:1344Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 45
- Width In.: N/A
- Depth Ft.: 56
- Depth In.: N/A
Description

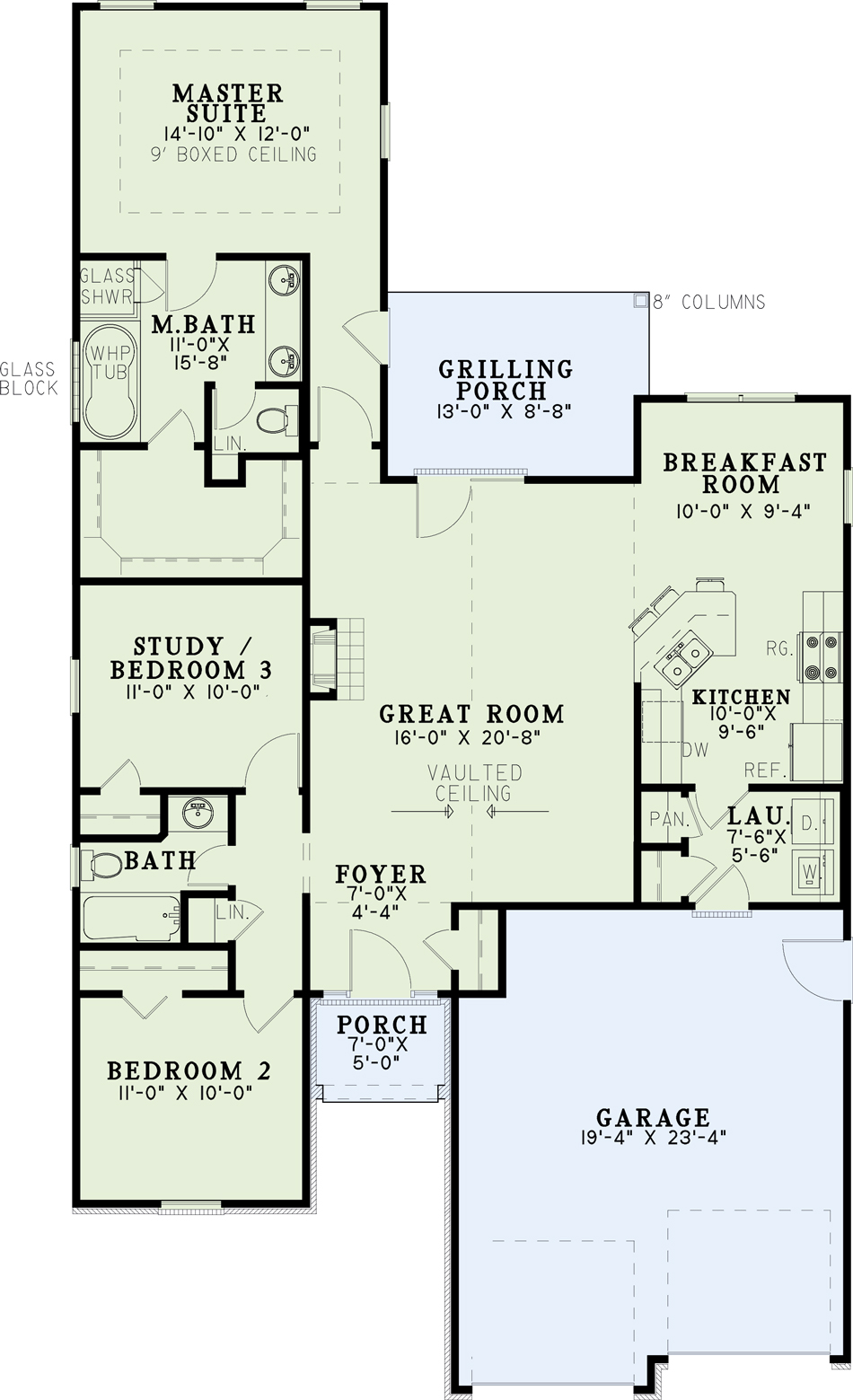

This and economic home affords opportunities for encompassing quality time. The kitchen offers a snack bar for breakfast. The family can gather around the fireplace accenting the great room on wintry evenings or travel out to the rear-grilling porch for summer barbecues. At the days end you retreat to the comfort of your suite knowing that your children are safely just down the hall in their private rooms separated by a full bath.
Specifications
- Total Living Space:1344Sq.Ft.
- Main Floor: 1344 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 174 Sq.Ft.
- Garage (Sq.Ft.): 387 Sq.Ft.
- Total Square Feet: 1905 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 7:12
- Porch Roof Pitch: 7:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 18
- Ridge Height (In.): 4
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
