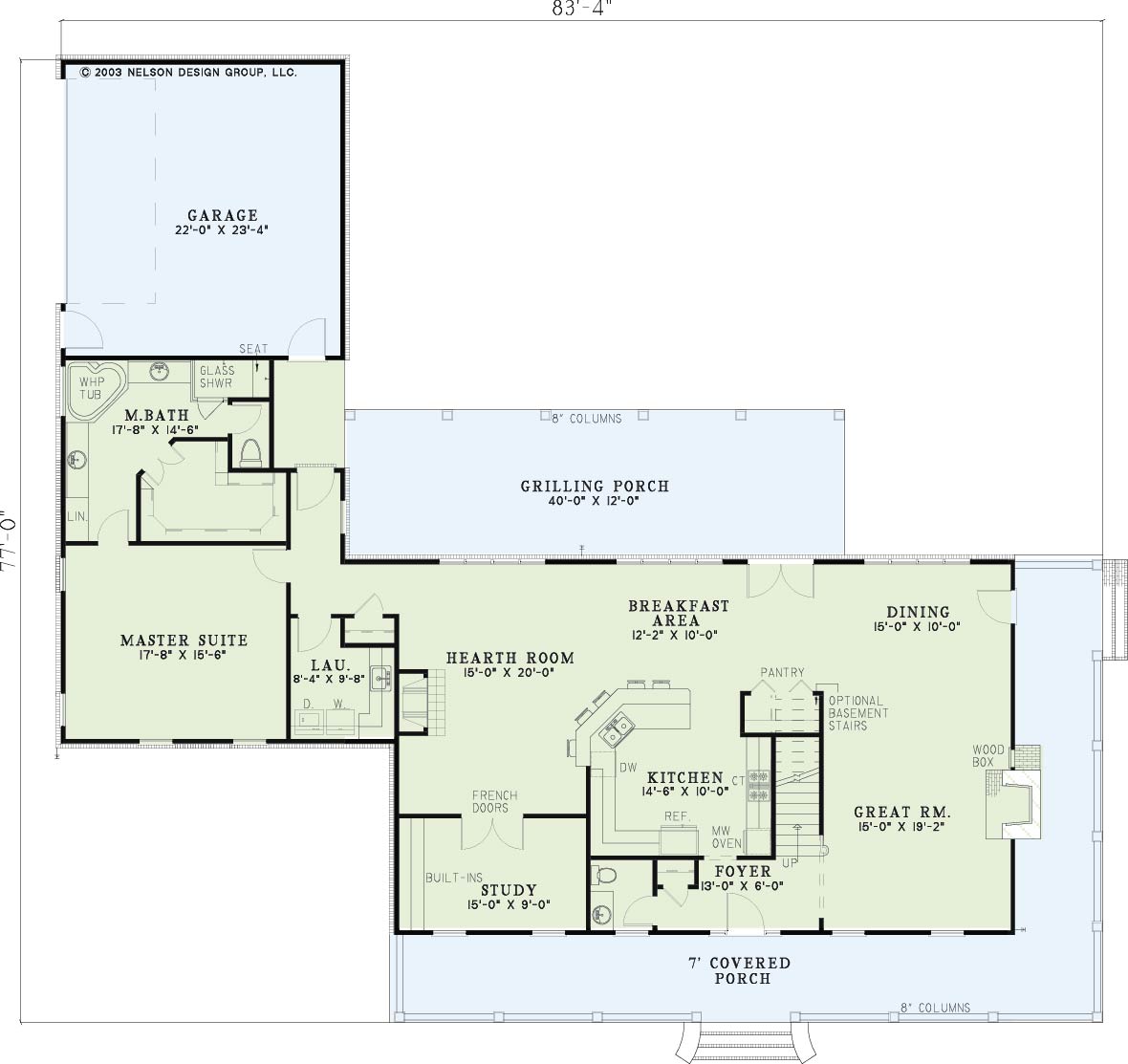

House Plan NDG 619 Main Floor

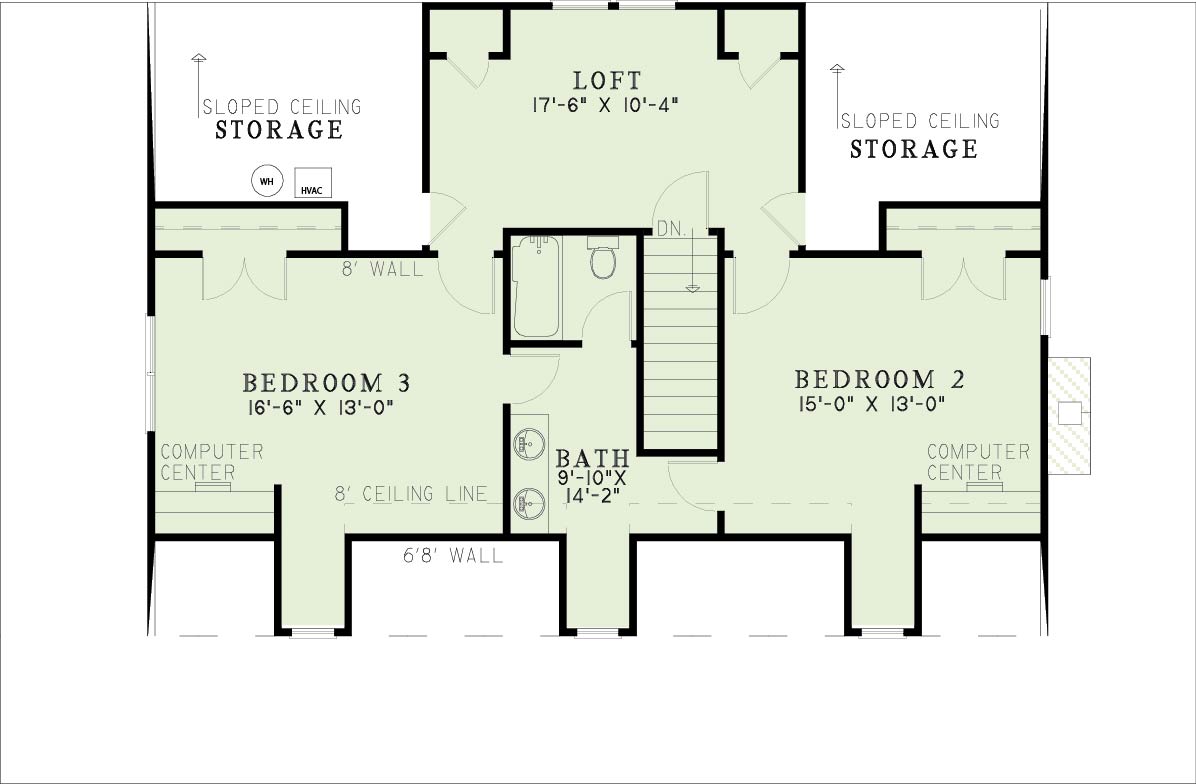

House Plan NDG 619 Upper Floor
House Plan NDG 619 Main Floor
House Plan NDG 619 Upper Floor

Floor plans

NDG 619

House Plan 619 Cypress Drive, Farmhouse House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 619
  • Total Living Space:3060Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 83
  • Width In.: 4
  • Depth Ft.: 77
  • Depth In.: N/A

Description

Relax on the covered front porch that wraps around the front and side of this Nelson Design Group home. Your guests are sure to notice and appreciate the open feel throughout this design. At the heart of this home is the well-equipped kitchen including a bar that connects to the breakfast area and hearth room. The private study and master suite complete the main floor of this home. The upper floor houses two spacious bedrooms, each with a computer center and private access to a shared bathroom.

Specifications

  • Total Living Space:3060Sq.Ft.
  • Main Floor: 2204 Sq.Ft
  • Upper Floor (Sq.Ft.): 856 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1131 Sq.Ft.
  • Garage (Sq.Ft.): 540 Sq.Ft.
  • Total Square Feet: 4731 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
