House Plan 635 Burlington Cove, Affordable House Plan

>

Floor plans

NDG 635

House Plan 635 Burlington Cove, Affordable House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 635
  • Total Living Space:1604Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 39
  • Depth In.: 10

Description

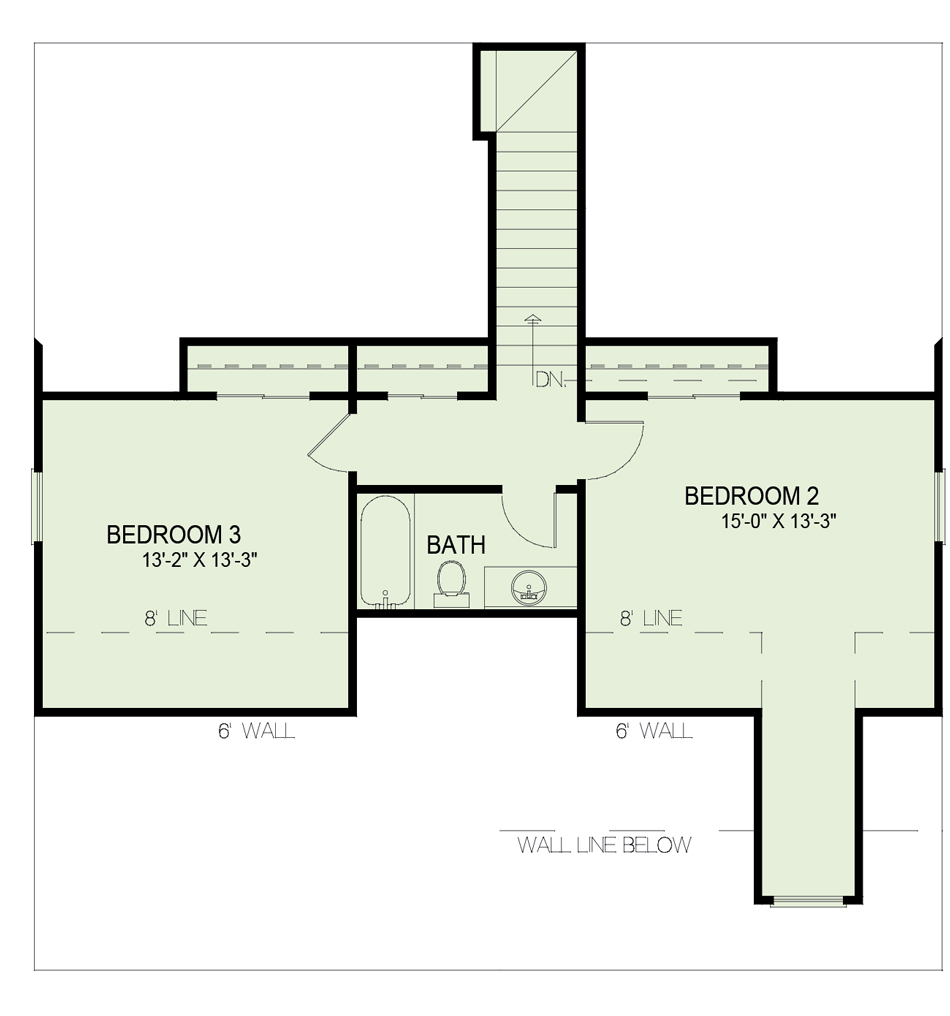

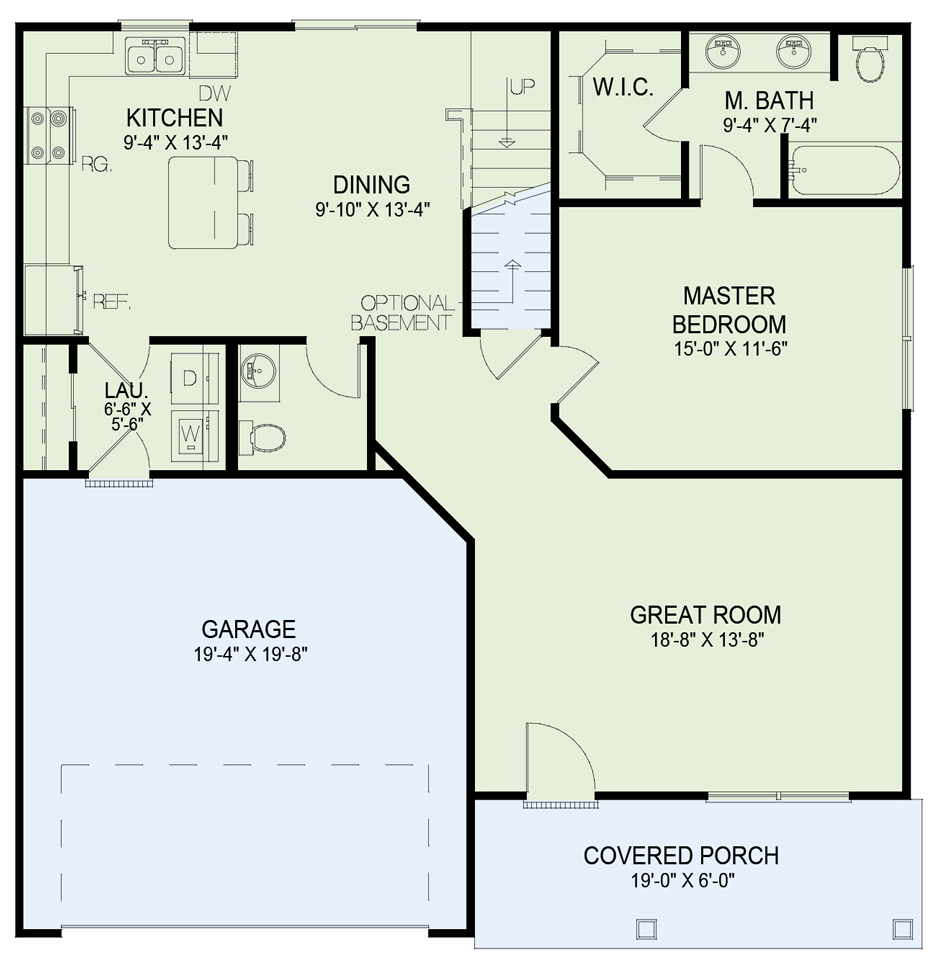

This Nelson Design Group traditional home is the perfect starter home. Enter from a large covered porch and into a spacious great room perfect for family gatherings. This main floor contains a master suite with a private bath and an extra large walk-in closet. The kitchen has a work island with bar seating and opens to a large dining area. A half bath and laundry room are both centrally located for convenience. The upper floor contains two large bedrooms with creative ceiling heights, a large hall closet and a full bathroom.

Specifications

  • Total Living Space:1604Sq.Ft.
  • Main Floor: 1048 Sq.Ft
  • Upper Floor (Sq.Ft.): 556 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 114 Sq.Ft.
  • Garage (Sq.Ft.): 391 Sq.Ft.
  • Total Square Feet: 2109 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
