House Plan 738 Cherry Street, Traditional House Plan

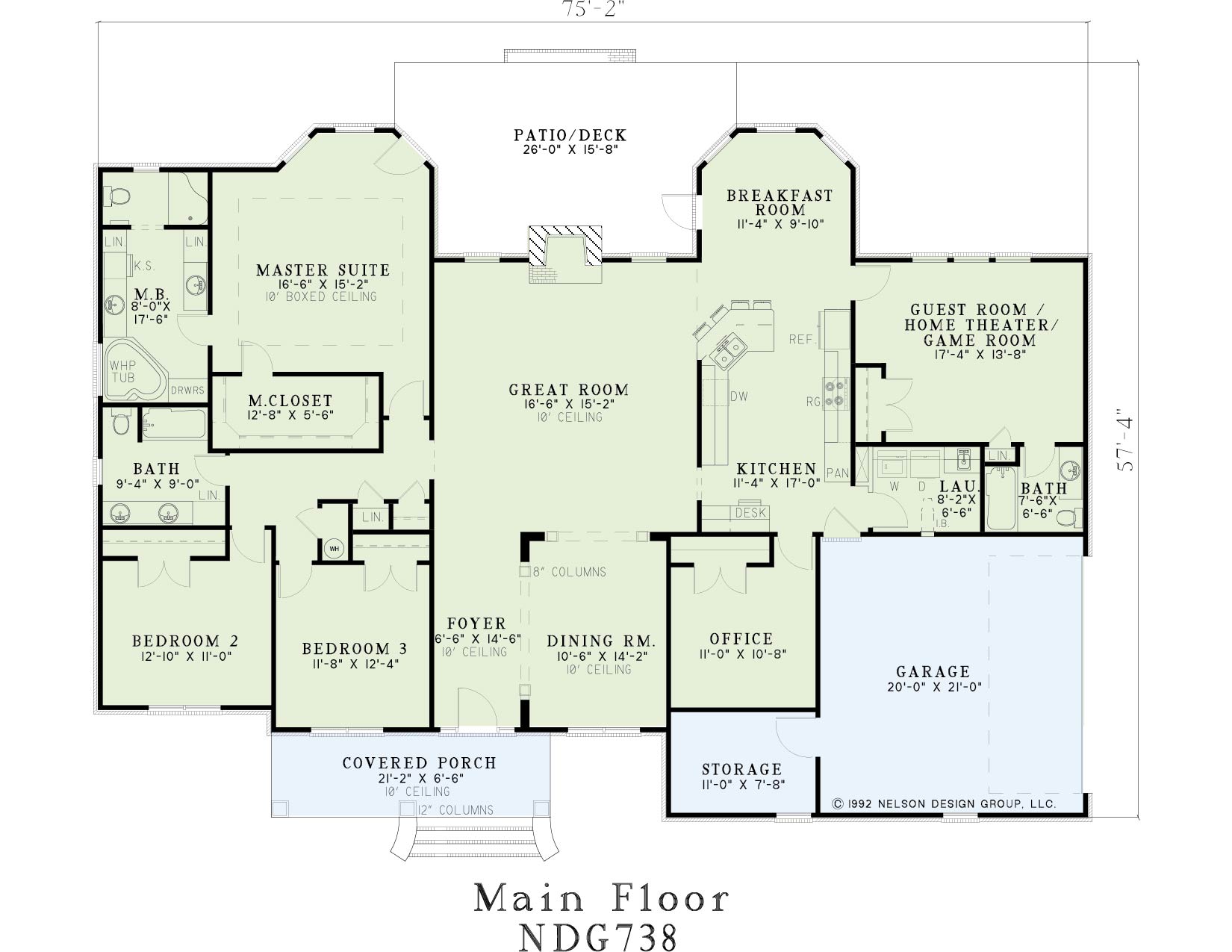

Floor plans
NDG 738
House Plan 738 Cherry Street, Traditional House Plan
Plan Details
- Plan Number: NDG 738
- Total Living Space:2689Sq.Ft.
- Bedrooms: 4
- Full Baths: 3
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 75
- Width In.: 2
- Depth Ft.: 57
- Depth In.: 4
Description
This charming brick home will welcome you inside with its inviting front porch. The Foyer leads you into the Great Room or Dining Room. The Great Room features a cozy fireplace and an angled eat at bar connected to the Kitchen and Breakfast Room. From the Kitchen you have access to the private Guest Room or from the opposite side of the Kitchen you can access the Office, Laundry Room and 2 car Garage. On the other side of the home is the Master Suite as well as bedrooms 3 and 4.
Specifications
- Total Living Space:2689Sq.Ft.
- Main Floor: 2689 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 460 Sq.Ft.
- Garage (Sq.Ft.): 527 Sq.Ft.
- Total Square Feet: 3676 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 23
- Ridge Height (In.): 8
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
