House Plan 896 Garland, Country Home House Plan

House Plan 896 Garland, Country Home House Plan

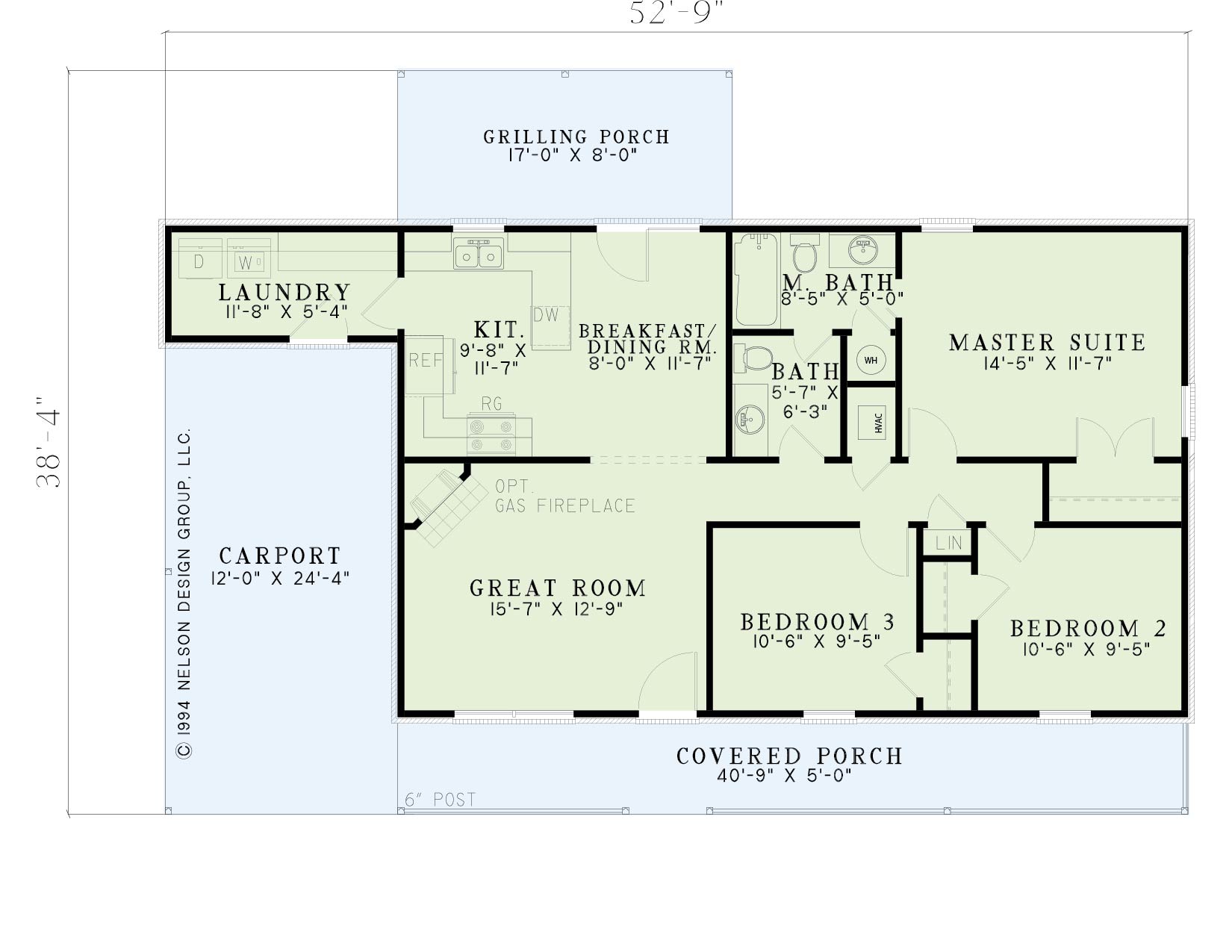

Floor plans

NDG 896

House Plan 896 Garland, Country Home House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 896
  • Total Living Space:1104Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 1
  • Half Baths: 1
  • Garage: No
  • Garage Type: Carport
  • Carport: Yes
  • Carport Type: Front Load
  • Stories: 1
  • Width Ft.: 52
  • Width In.: 9
  • Depth Ft.: 38
  • Depth In.: 4

Description

An attractive covered porch spans the front of this Nelson Design Group home. Welcome your guests into the great room for conversation beside the fireplace. The step-saver kitchen and adjacent dining room lend convenience to mealtime. A generous grilling porch is also included for outdoor possibilities. Two secondary bedrooms and the cozy master suite complete this design.

Specifications

  • Total Living Space:1104Sq.Ft.
  • Main Floor: 1104 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 339 Sq.Ft.
  • Garage (Sq.Ft.): 288 Sq.Ft.
  • Total Square Feet: 1731 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 5:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 14
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($700.00)
    • CAD ($1,400.00)
    • Five Set ($800.00)
    • PDF ($700.00)
    • PDF + Unlimited Build ($1,400.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
