House Plan 903 Dogwood Avenue, French Traditional House Plan

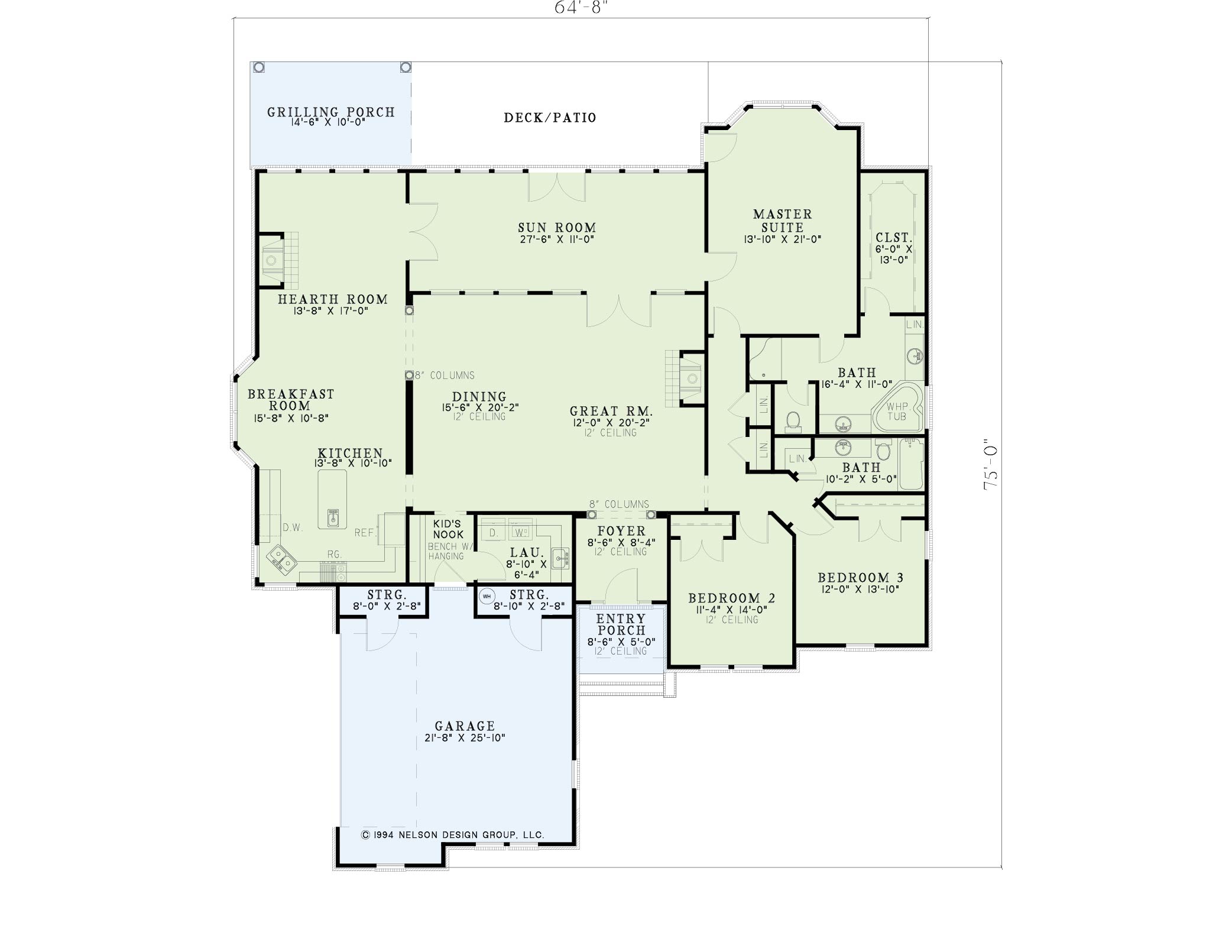

House Plan NDG 903 Main Floor
House Plan NDG 903 Main Floor

Floor plans

NDG 903

House Plan 903 Dogwood Avenue, French Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 903
  • Total Living Space:2707Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 64
  • Width In.: 8
  • Depth Ft.: 75
  • Depth In.: N/A

Description

Interesting design and a gorgeous exterior are sure to make this Nelson Design Group home a family favorite. Enjoy the view from the foyer before stepping into the open great room with fireplace. After school, the kids can drop off their backpacks in the clever kids’ nook before heading into the kitchen for a snack. This home is equipped for all seasons with a hearth room and a large sunroom. A deck and grilling porch are also available for cookouts and gatherings. Two additional bedrooms and an impressive master suite help to complete this unique design.

Specifications

  • Total Living Space:2707Sq.Ft.
  • Main Floor: 2707 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 186 Sq.Ft.
  • Garage (Sq.Ft.): 560 Sq.Ft.
  • Total Square Feet: 3453 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
