House Plan 915 Chestnut Lane, Traditional House Plan

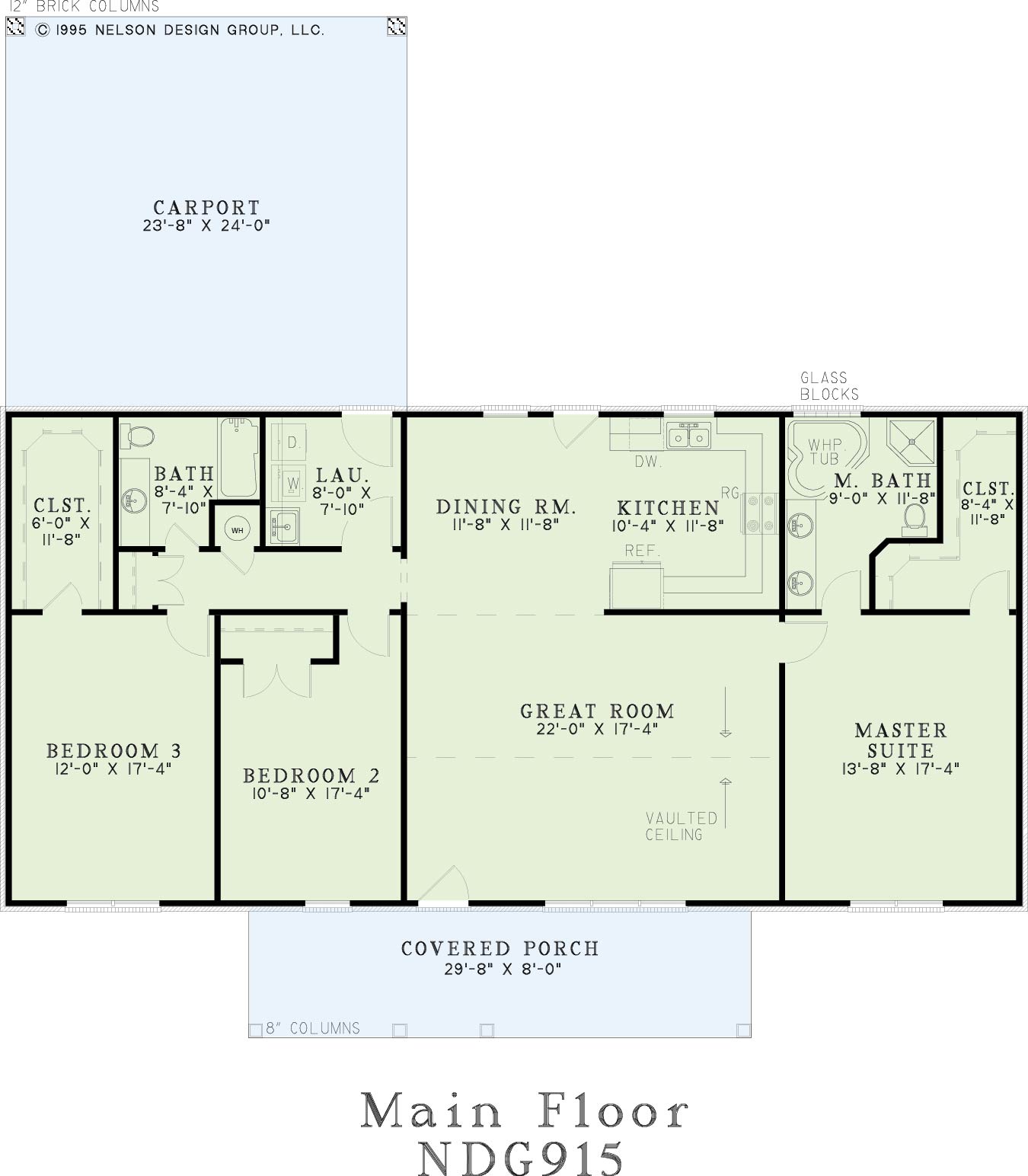

House Plan NDG 915 Main Floor
House Plan NDG 915 Main Floor

Floor plans

NDG 915

House Plan 915 Chestnut Lane, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 915
  • Total Living Space:1800Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: N/A
  • Garage Type: Front Load
  • Carport: Yes
  • Carport Type: Side Load
  • Stories: 1
  • Width Ft.: 60
  • Width In.: N/A
  • Depth Ft.: 62
  • Depth In.: N/A


This Nelson Design Group home is perfect for a couple just starting out or empty nesters. A covered porch with columns leads into the great room with fluid access to the dining room. This master suite is privately located and includes a whirlpool tub to relax away the day’s worries. Two additional bedrooms and a full bath occupy the opposite side of this home and should prove to be perfect for overnight guests or expanding your family.


  • Total Living Space:1800Sq.Ft.
  • Main Floor: 1800 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 237 Sq.Ft.
  • Garage (Sq.Ft.): 568 Sq.Ft.
  • Total Square Feet: 2605 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 17
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
