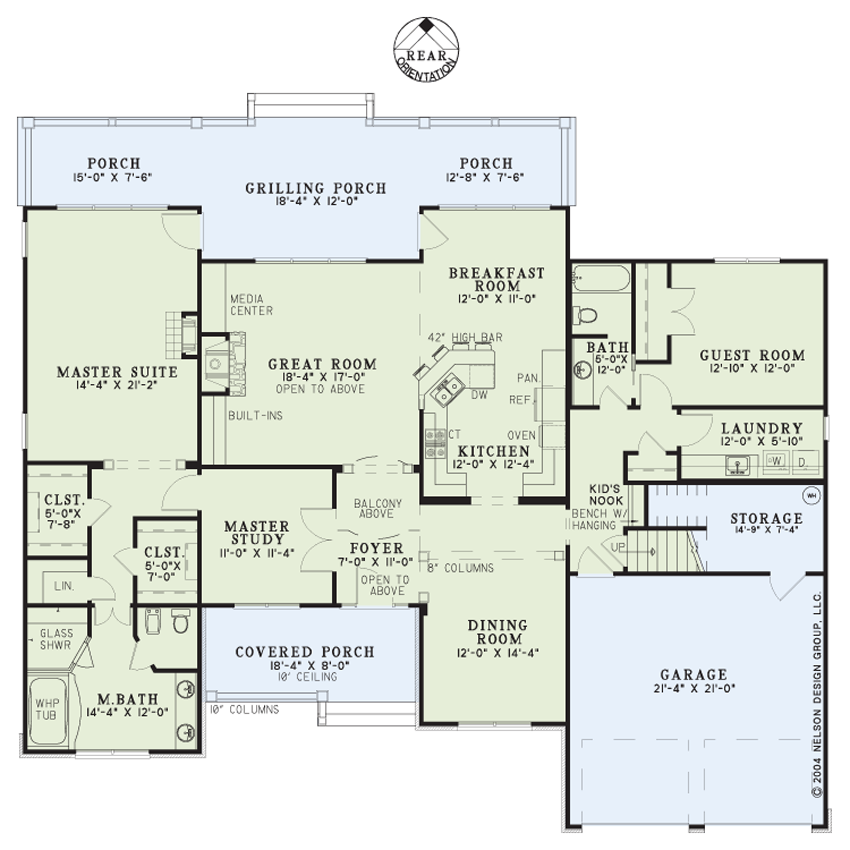

House Plan NDG 948B Main Floor

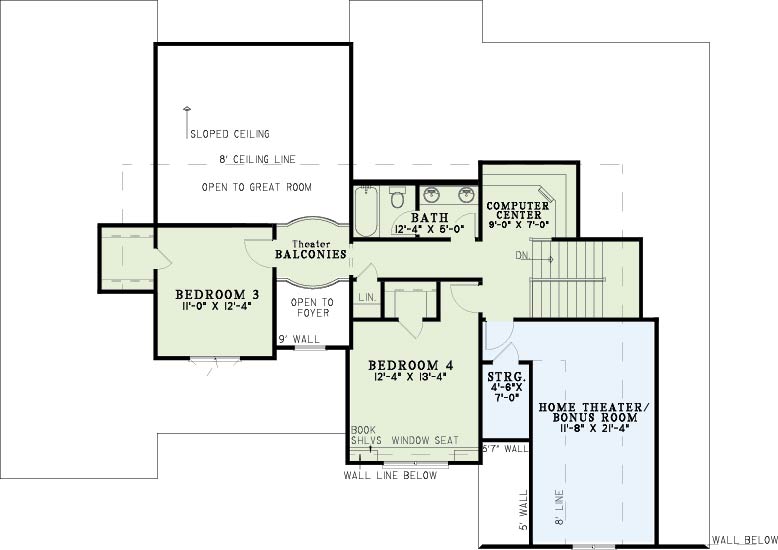

House Plan NDG 948B Upper Floor
House Plan NDG 948B Main Floor
House Plan NDG 948B Upper Floor

Floor plans

NDG 948B

House Plan 948B Ambrose Boulevard, Heritage House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 948B
  • Total Living Space:2952Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 67
  • Width In.: 8
  • Depth Ft.: 60
  • Depth In.: N/A

Description

This Nelson Design Group home has instant street appeal. Preparing meals is easy in the well-planned kitchen, located just steps away from the kid’s nook. A breakfast room adjoins the kitchen for quicker meals while the nearby dining room is available for more formal occasions. Entertaining is a snap in the generous great room. At the end of the day, relax in your master suite. After a soothing soak in the whirlpool bath, warm yourself by the fireplace in the master bedroom. The upper level houses twin theater balconies, a convenient computer center, and two additional bedrooms, perfect for company.

Specifications

  • Total Living Space:2952Sq.Ft.
  • Main Floor: 2266 Sq.Ft
  • Upper Floor (Sq.Ft.): 686 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 318 Sq.Ft.
  • Porch (Sq.Ft.): 576 Sq.Ft.
  • Garage (Sq.Ft.): 560 Sq.Ft.
  • Total Square Feet: 4406 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
