House Plan 981 Dogwood Avenue, European House Plan

>

Floor plans

NDG 981

House Plan 981 Dogwood Avenue, European House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 981
  • Total Living Space:2703Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1.5
  • Width Ft.: 90
  • Width In.: 4
  • Depth Ft.: 48
  • Depth In.: 9

Description

This home plan has an exceptional open floor plan. Your guest will enjoy the spacious outdoor living space area which includes an extended grilling porch and corner decks. There’s also a private library, an office area for business and a bonus game or media room for family entertainment.

Specifications

  • Total Living Space:2703Sq.Ft.

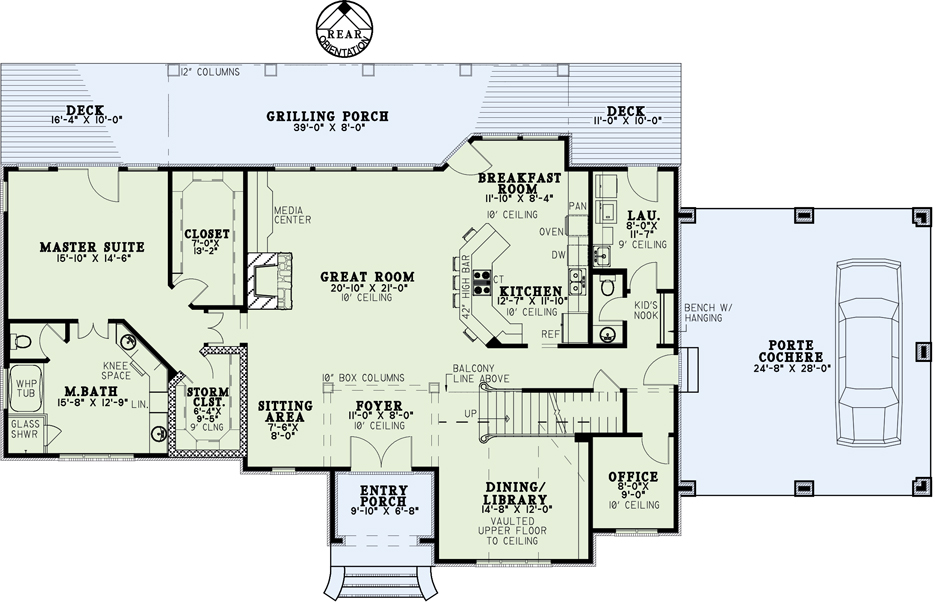

  • Main Floor: 2132 Sq.Ft

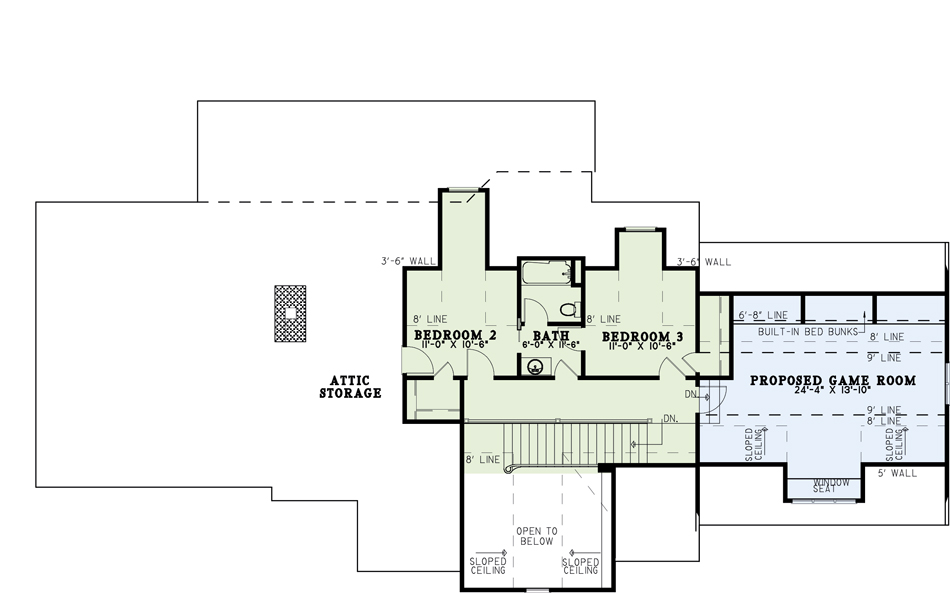

  • Upper Floor (Sq.Ft.): 571 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 424 Sq.Ft.
  • Porch (Sq.Ft.): 603 Sq.Ft.
  • Garage (Sq.Ft.): 691 Sq.Ft.
  • Total Square Feet: 4421 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
