House Plan B1013 The Eagle Ridge, Barna Log House Plan

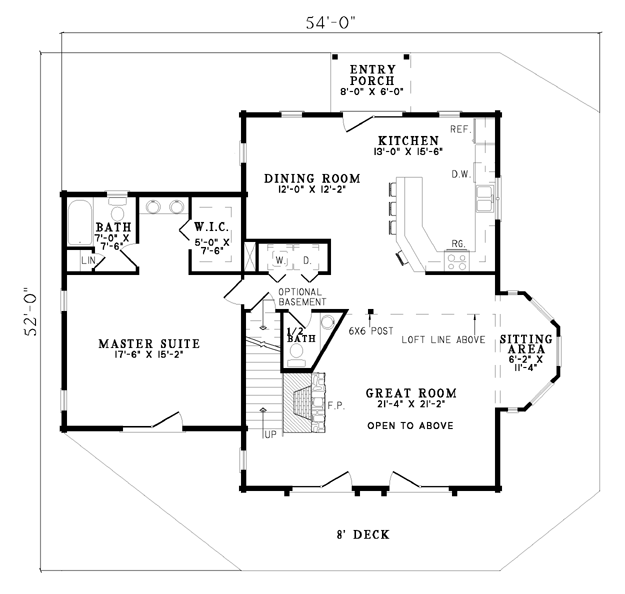

House Plan NDG B1013 Main Floor

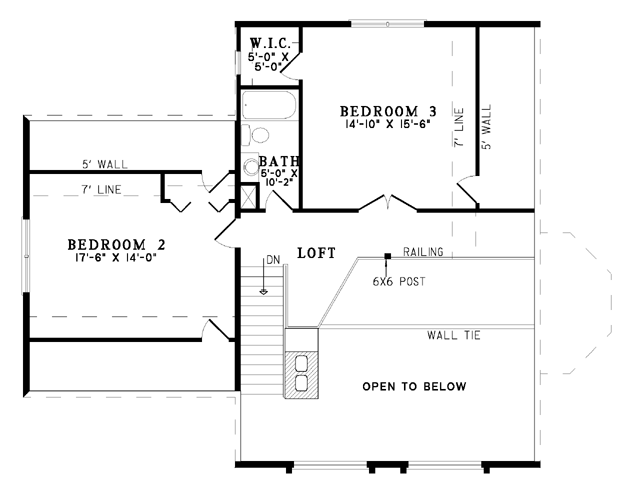

House Plan NDG B1013 Upper Floor
House Plan NDG B1013 Main Floor
House Plan NDG B1013 Upper Floor

Floor plans

NDG B1013

House Plan B1013 The Eagle Ridge, Barna Log House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG B1013
  • Total Living Space:2137Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 54
  • Width In.: N/A
  • Depth Ft.: 52
  • Depth In.: N/A

Description

Specifications

  • Total Living Space:2137Sq.Ft.
  • Main Floor: 1556 Sq.Ft
  • Upper Floor (Sq.Ft.): 581 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2137 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
