House Plan B1056 The Alpine, Barna Log House Plan

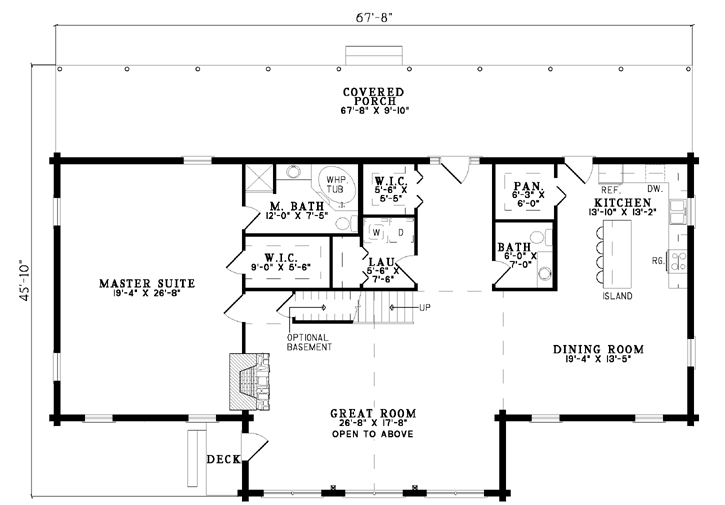

House Plan NDG B1056 Main Floor

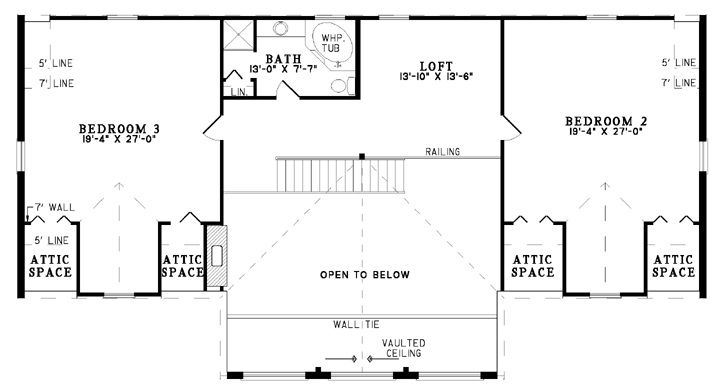

House Plan NDG B1056 Upper Floor
House Plan NDG B1056 Main Floor
House Plan NDG B1056 Upper Floor

Floor plans

NDG B1056

House Plan B1056 The Alpine, Barna Log House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG B1056
  • Total Living Space:3491Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 67
  • Width In.: 8
  • Depth Ft.: 45
  • Depth In.: 10

Description

Specifications

  • Total Living Space:3491Sq.Ft.
  • Main Floor: 2128 Sq.Ft
  • Upper Floor (Sq.Ft.): 1363 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 672 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 4163 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
