House Plan B1063 The Cabot, Barna Log House Plan

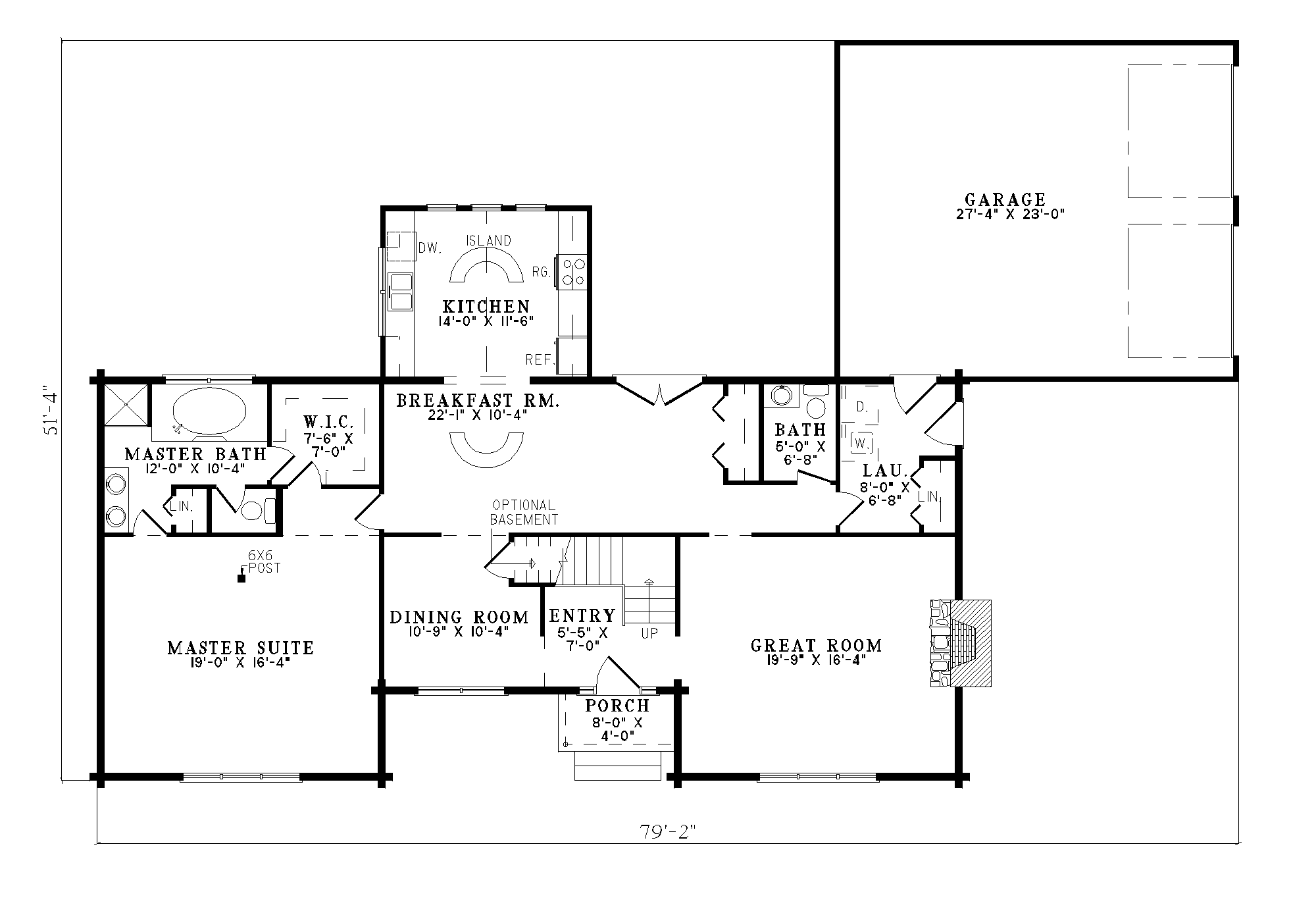

House Plan NDG B1063 Main Floor

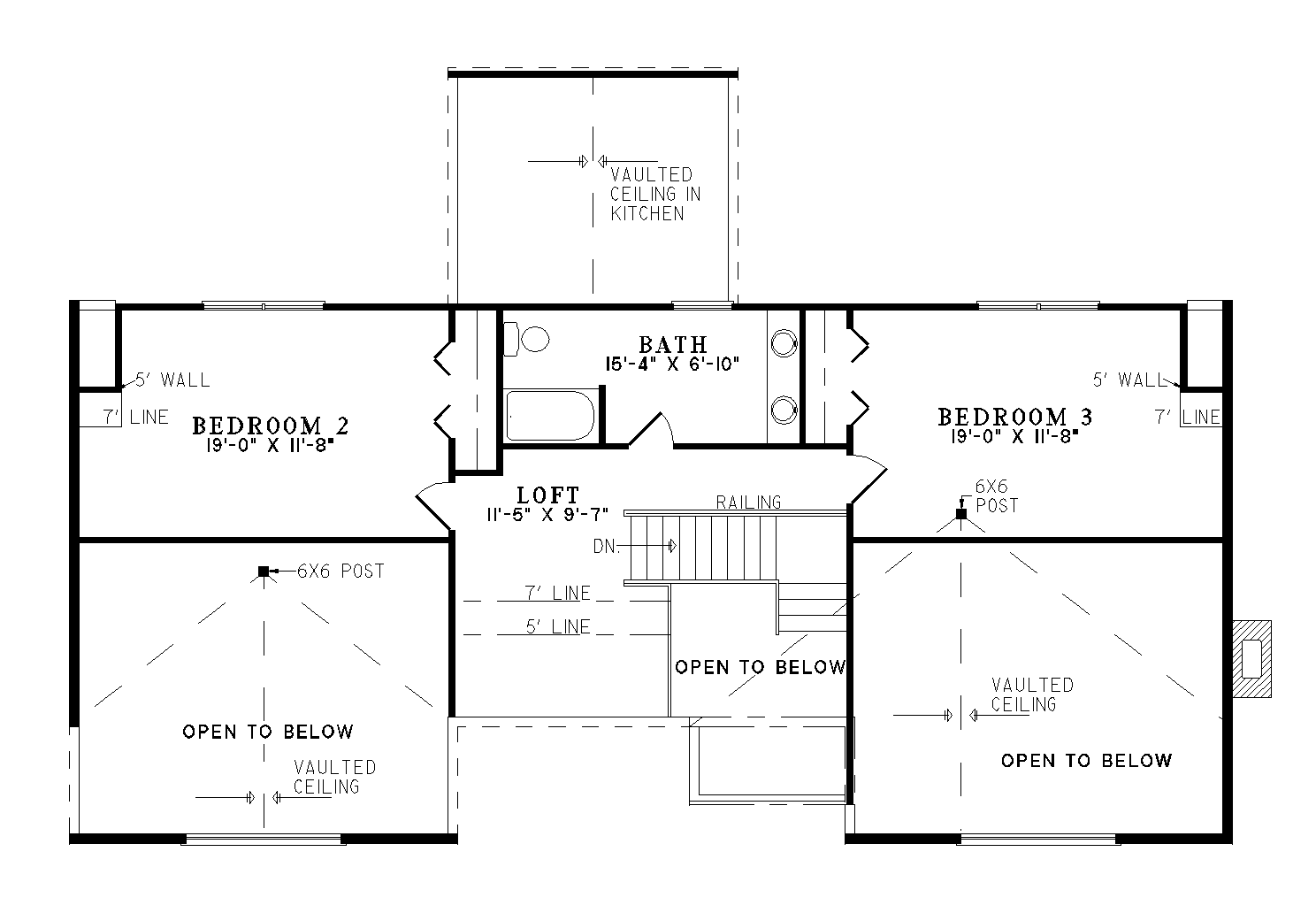

House Plan B1063 Upper Floor
House Plan NDG B1063 Main Floor
House Plan B1063 Upper Floor

Floor plans

NDG B1063

House Plan B1063 The Cabot, Barna Log House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG B1063
  • Total Living Space:2538Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 60
  • Width In.: N/A
  • Depth Ft.: 51
  • Depth In.: 4

Description

Specifications

  • Total Living Space:2538Sq.Ft.
  • Main Floor: 1740 Sq.Ft
  • Upper Floor (Sq.Ft.): 798 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 32 Sq.Ft.
  • Garage (Sq.Ft.): 680 Sq.Ft.
  • Total Square Feet: 3250 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 14:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
