House Plan 122 Brighton Court, Traditional House Plan

>

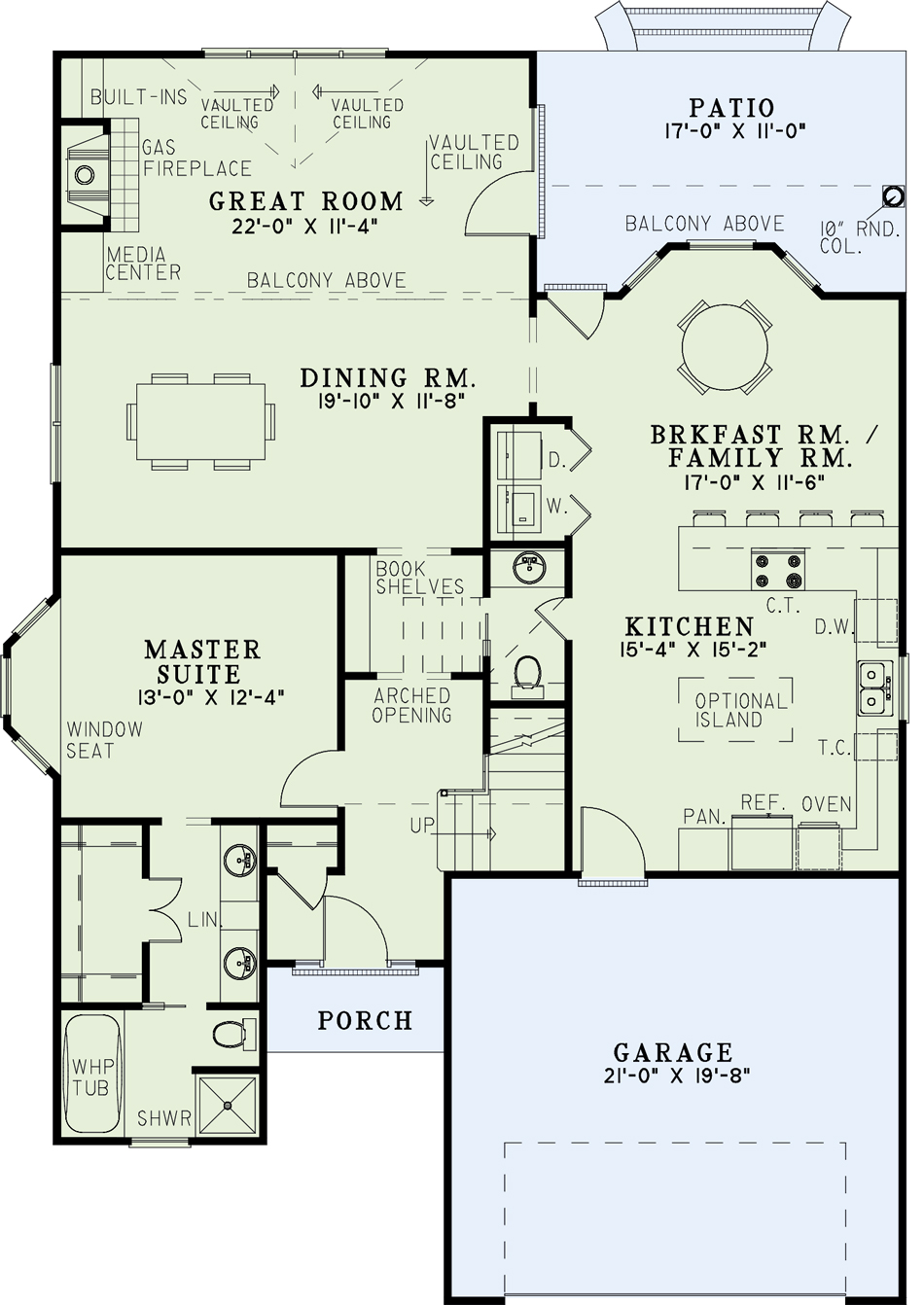

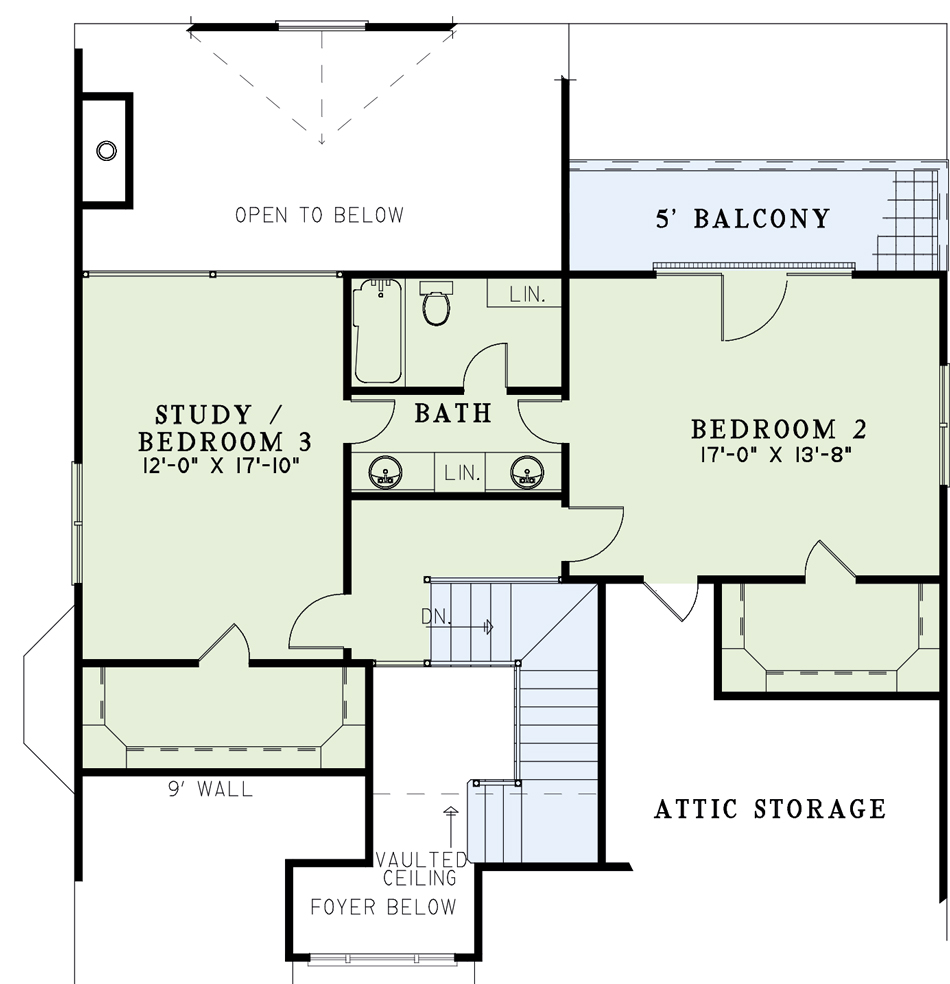

Floor plans

NDG 122

House Plan 122 Brighton Court, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 122
  • Total Living Space:2287Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 42
  • Width In.: 4
  • Depth Ft.: 58
  • Depth In.: 10

Description

The multi-storied foyer and living room provide an even larger feel to this pleasant edifice. Arched openings escort you to the marvelous formal dining room that blends into a captivating living room. There you’ll find the gas fireplace, built-ins and a media center which gains prominence from the vaulted ceiling and balcony above. An enormous kitchen seats several at the eat-at bar where conversation flows effortlessly to the adjoining bay-windowed breakfast room. Upstairs features large, lovely Jack-and-Jill bedrooms that share a common bath.

Specifications

  • Total Living Space:2287Sq.Ft.
  • Main Floor: 1542 Sq.Ft
  • Upper Floor (Sq.Ft.): 745 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 104 Sq.Ft.
  • Garage (Sq.Ft.): 443 Sq.Ft.
  • Total Square Feet: 2834 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 11:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
