House Plan 139 Maple Street, Riverbend House Plan
Floor plans
NDG 139
House Plan 139 Maple Street, Riverbend House Plan
Plan Details
- Plan Number: NDG 139
- Total Living Space:2501Sq.Ft.
- Bedrooms: 2
- Full Baths: 1
- Half Baths: 2
- Garage: No
- Garage Type: N/A
- Carport: No
- Carport Type: N/A
- Stories: 1
- Width Ft.: 50
- Width In.: N/A
- Depth Ft.: 75
- Depth In.: 6
Description
Picture yourself on the front porch of this traditional home as you sip lemonade with the neighbors. Welcome them inside to your foyer as your guests retreat to the dining room for an enjoyable meal by the fire. The rear porch will be perfect for those summer cookouts as the children anticipate cooking hamburgers and hot dogs. After everything is put away, you can retire to your secluded master suite for relaxation. You’ll find the perfect office located upstairs for work-at-home moms.
Specifications
- Total Living Space:2501Sq.Ft.

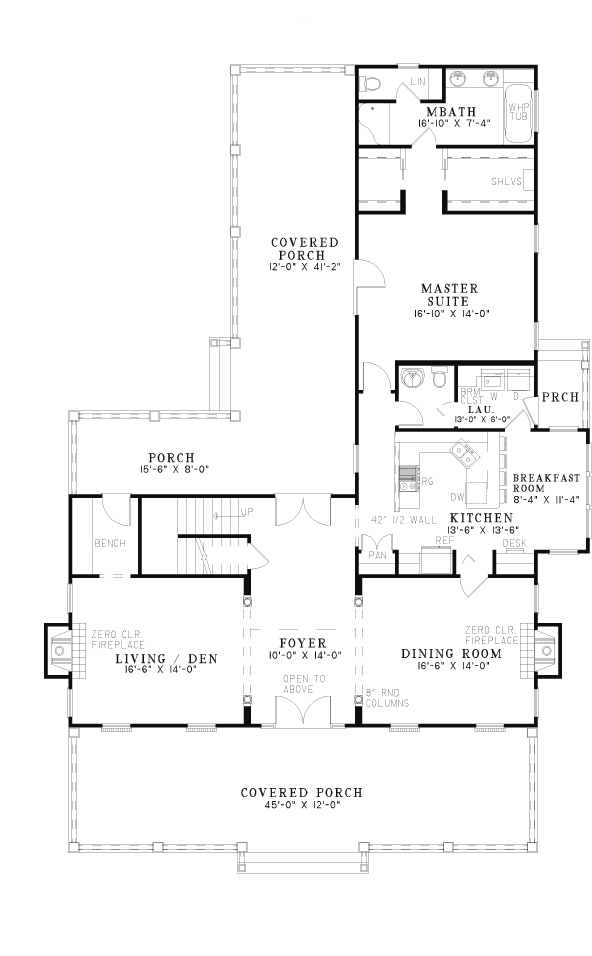

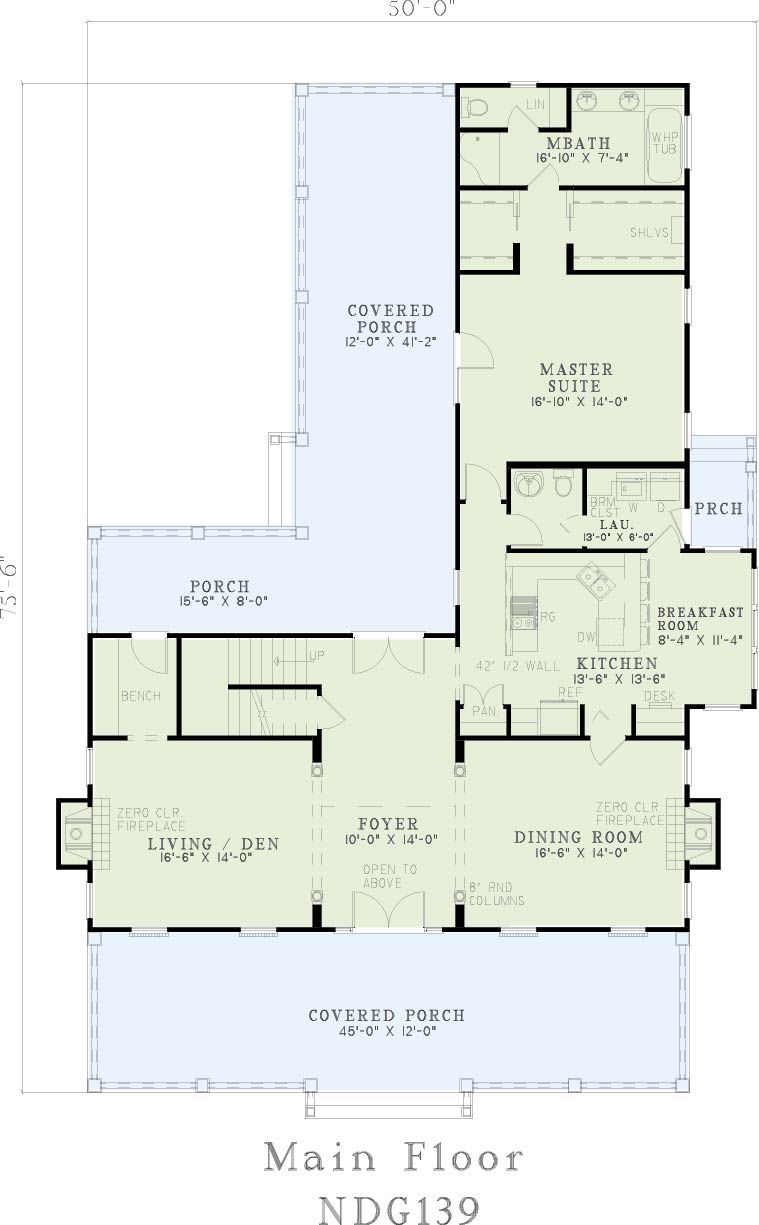

- Main Floor: 1786 Sq.Ft

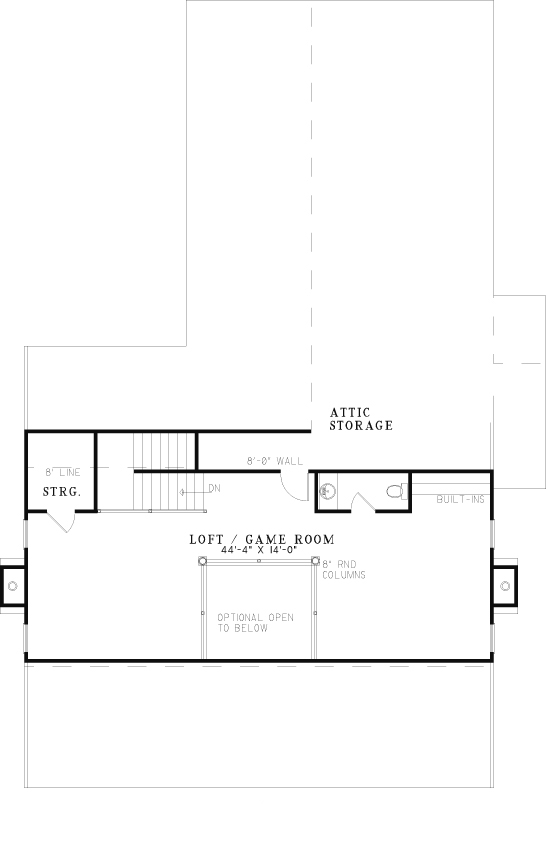

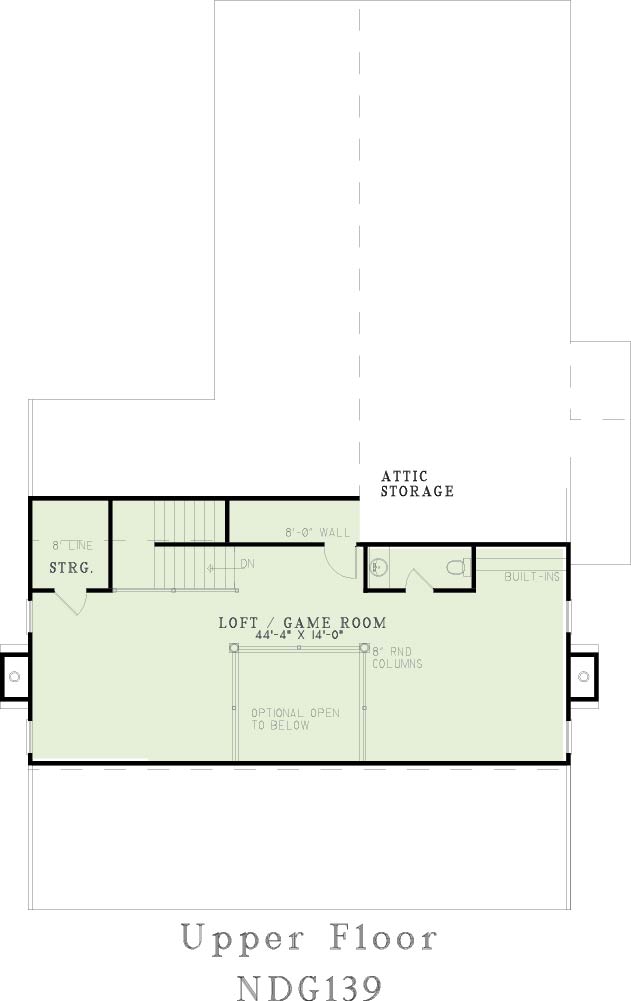

- Upper Floor (Sq.Ft.): 715 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 1190 Sq.Ft.
- Garage (Sq.Ft.): N/A
- Total Square Feet: 3691 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Metal
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 27
- Ridge Height (In.): 6
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
