House Plan 145B Spruce Street, Traditional House Plan
Plan Details
- Plan Number: NDG 145B
- Total Living Space:1680Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Front Load
- Carport: No
- Carport Type: N/A
- Stories: 1
- Width Ft.: 51
- Width In.: 6
- Depth Ft.: 52
- Depth In.: 4
Description

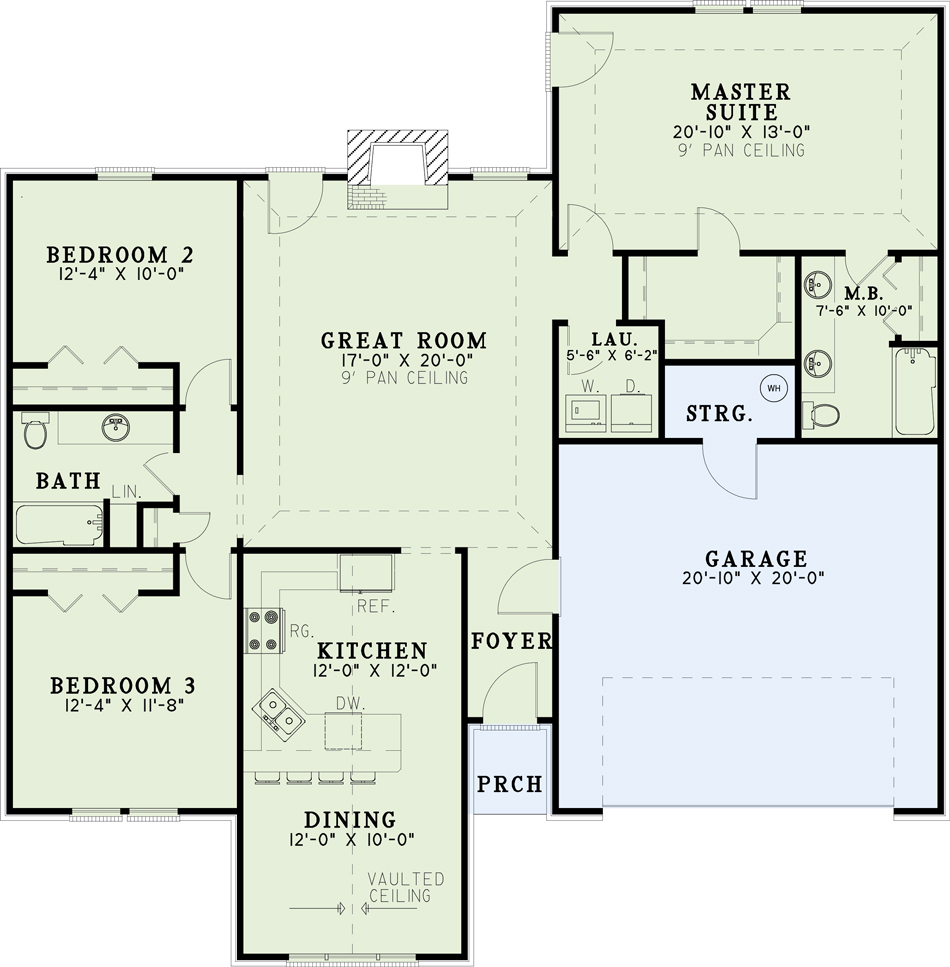

Your dinner parties are certain to be successful in this split bedroom home. The expansive great room with gorgeous brick fireplace aids I creating the perfect ambiance for an evening of entertaining. The vaulted ceiling heightens the majestic feeling transformed in the dining room and kitchen area. When your guests leave, retreat to your master suite bathroom complete with corner whirlpool tub and glass shower, or enjoy private access to your covered porch. The children will enjoy their own privacy with bedrooms on the other side of the home.
Specifications
- Total Living Space:1680Sq.Ft.
- Main Floor: 1680 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 73 Sq.Ft.
- Garage (Sq.Ft.): 417 Sq.Ft.
- Total Square Feet: 2170 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 7:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 18
- Ridge Height (In.): 11
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
