House Plan 147 Olive Street, Colonial Classical Federal House Plan

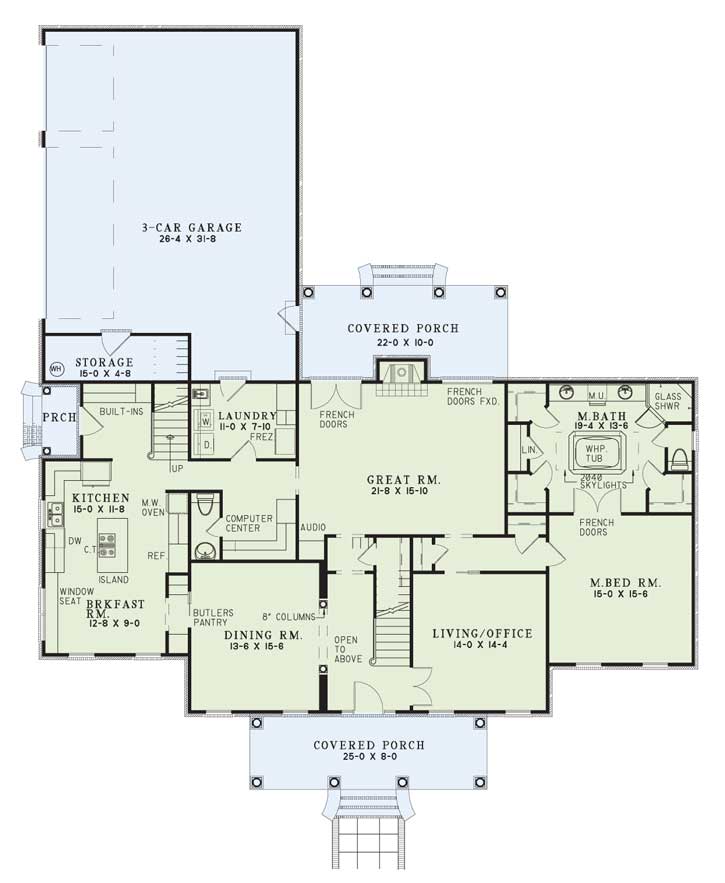

House Plan NDG 147 Main Floor

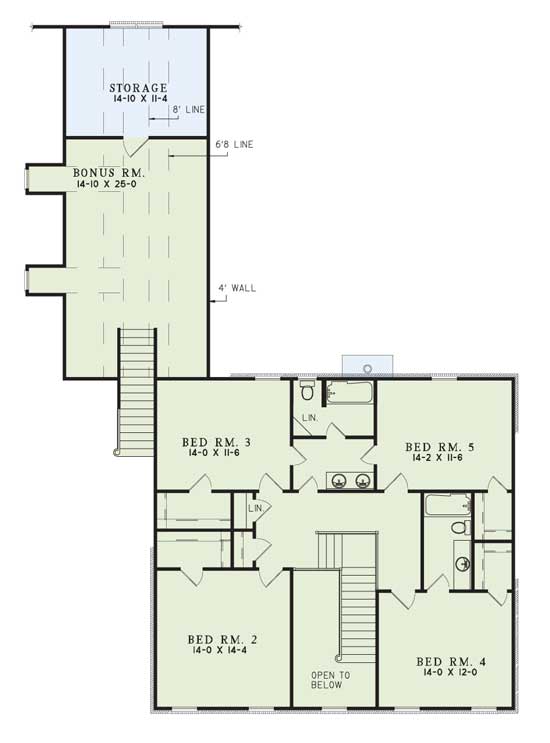

House Plan NDG 147 Upper Floor
House Plan NDG 147 Main Floor
House Plan NDG 147 Upper Floor

Floor plans

NDG 147

House Plan 147 Olive Street, Colonial Classical Federal House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 147
  • Total Living Space:3402Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 68
  • Width In.: 8
  • Depth Ft.: 80
  • Depth In.: N/A

Description

This majestic looking home is designed for the larger family. A built-in window seat aids in accommodating breakfast for everyone. You’ll enjoy the convenient computer center which is arranged for optimum usage by the entire family. Enjoy the privacy of your master suite and bath with skylights above, increasing the amount of natural light. Upstairs, you’ll have ample room for the children and all their belongings with four additional bedrooms and walk-in closet. Space is available for an optional bonus area that can serve as the family’s game room.

Specifications

  • Total Living Space:3402Sq.Ft.
  • Main Floor: 2202 Sq.Ft
  • Upper Floor (Sq.Ft.): 1200 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 396 Sq.Ft.
  • Porch (Sq.Ft.): 451 Sq.Ft.
  • Garage (Sq.Ft.): 1000 Sq.Ft.
  • Total Square Feet: 5249 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
