Floor Plans
Floor Plan #1
Description

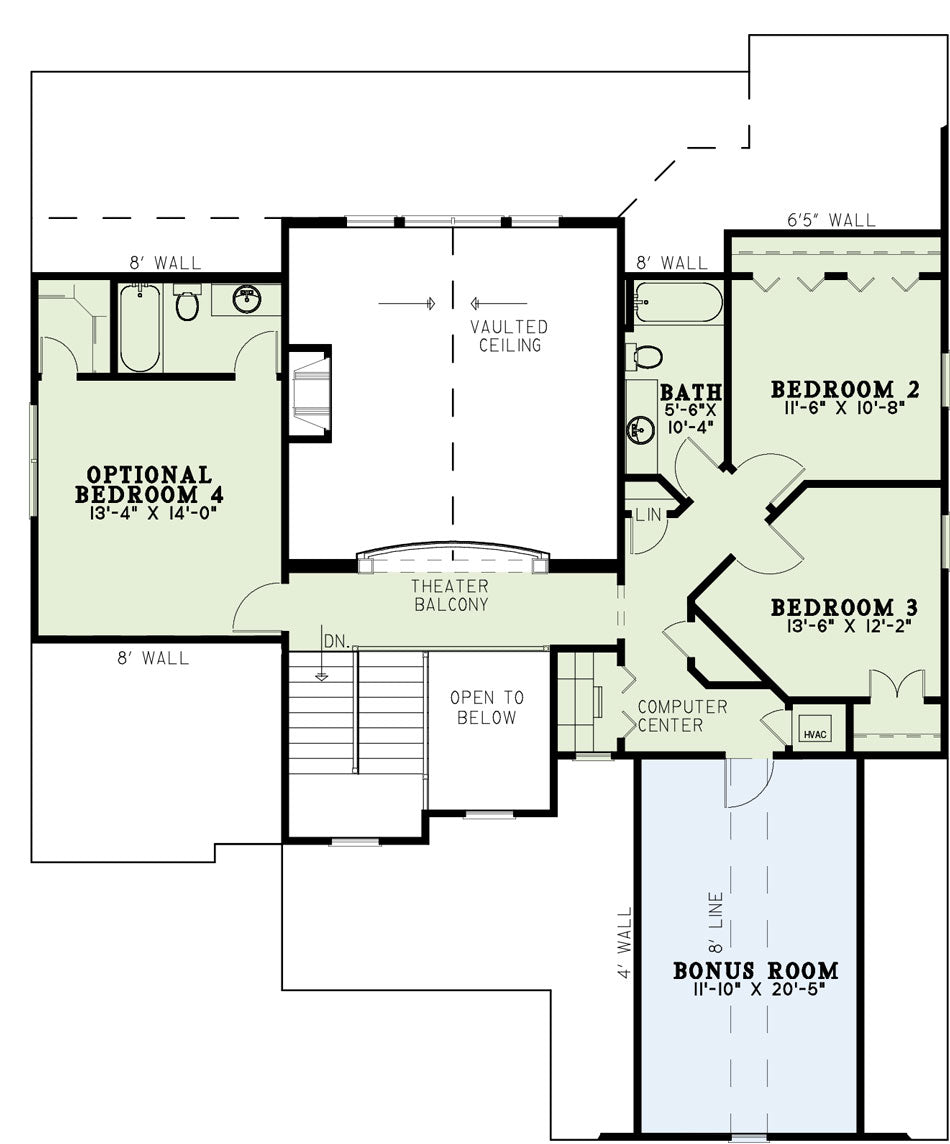

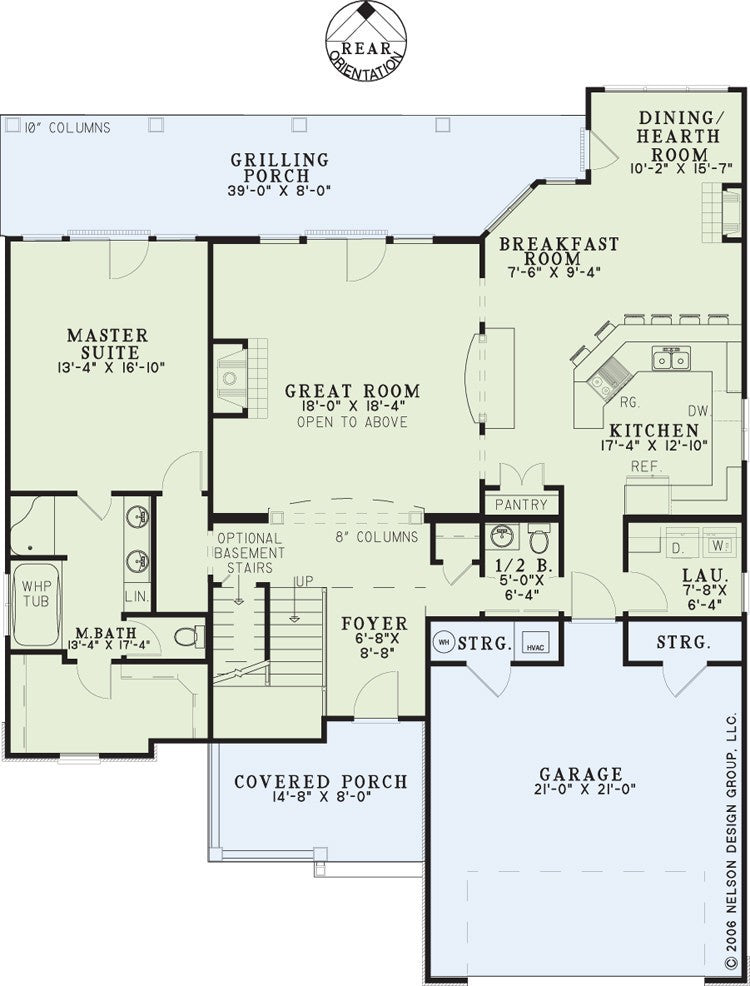

This Nelson Design Group Heritage Collection home is full of charm from the stone and wood shingle treatment to the brackets on the columns of the covered front porch. Inside you’ll find the great room with a fireplace and a pass thru to the kitchen and breakfast room, promoting conversation and visibility. The kitchen features a wrap around bar and is open to the hearth room complete with a fireplace and a door to the grilling porch. The master suite also has access to the grilling porch and features a whirlpool tub, corner shower, double vanity and a large walk-in closet. Upstairs is a large theater balcony open to the great room below, bedroom 2 and 3 and a full bathroom, a computer center, and a large bonus room over the garage. And there?s even an optional 4th bedroom with a full bathroom and a walk-in closet.
Home Specifications
- Total Living Space: 2558
- Ridge Height (Ft.) 30
- Main Floor (Sq. Ft.): 1661 Sq.Ft
- Ridge Height (In.) 6
- Upper Floor (Sq. Ft.): 897 Sq.Ft.
- Main Ceiling Height: 8
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): 427 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 524 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 259 Sq.Ft.
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 3
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 10:12
- Half Baths: 1
- Porch Roof Pitch: 3:12
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: Yes
- Depth (Ft): 60
- Width (Ft): 50
- Depth (In.) 4
- Width (In.) N/A
- Total Sq. Ft. 3770 Sq.Ft.
- Customizable: Yes
Key Features
- Balcony
- Bonus Room Over Garage
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Main Floor Master
- Narrow Lot House Plans
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
Plan Collections
- Heritage House Plans Collection
Plan Styles
- Arts & Crafts House Plans
- Craftsman House Plans
- European House Plans
- Traditional House Plans
