House Plan 1190 Canoe Point II, Riverbend House Plan
Or order by phone: (870) 931-5777
Floor Plans

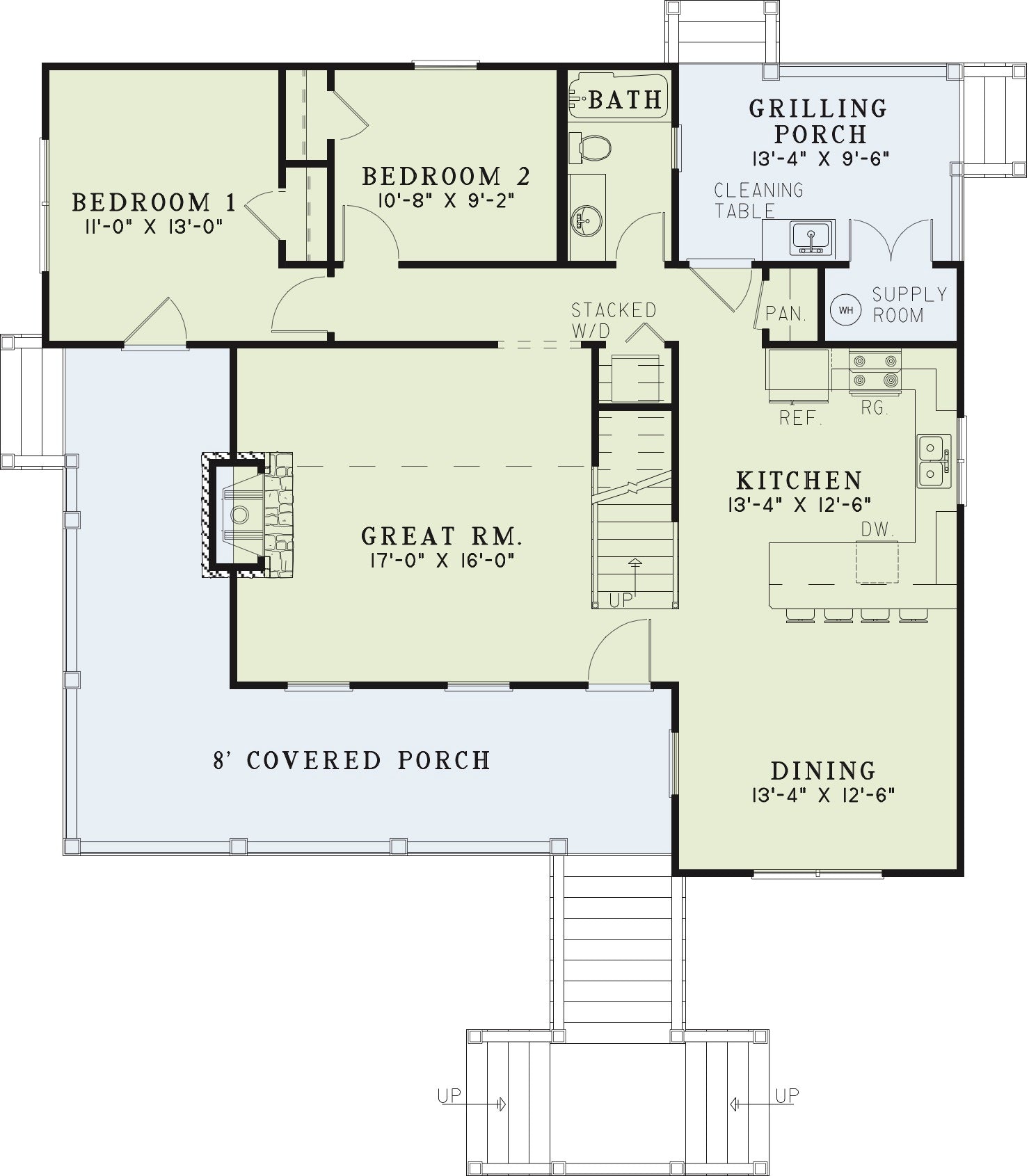

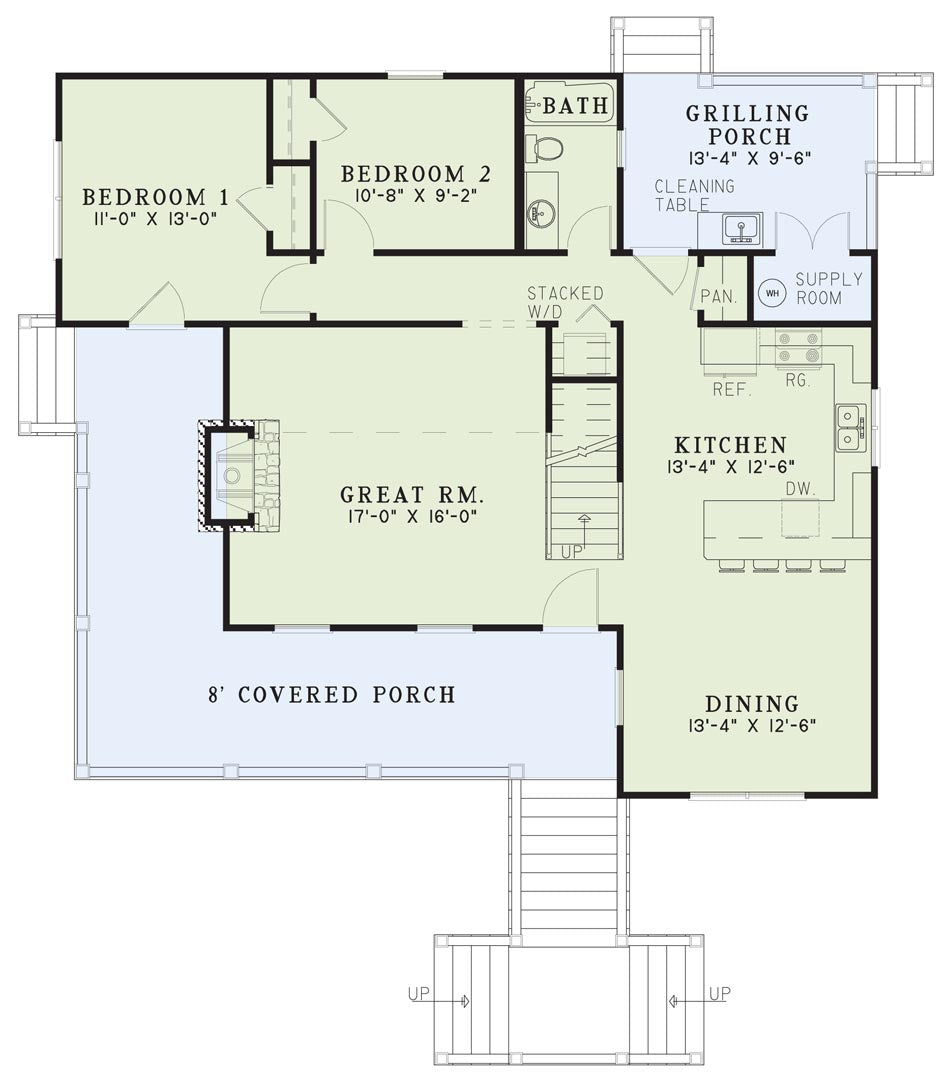

Floor Plan #1
Description
NDG 1190 Canoe Point II – A Charming, Elevated House Plan Built for Scenic and Waterfront Living
NDG 1190 Canoe Point II is a 1.5‑story house plan offering approximately 1,472 square feet of comfortable living space, designed for lakefront, riverfront, or other scenic properties where elevation and protection from water are important. This house plan blends rustic charm with practical design, making it an excellent choice for a vacation home, weekend retreat, or full-time residence in a natural or waterfront setting.
Entering the home, you arrive via an 8-foot wrap-around porch supported by stone columns — a design feature that elevates the home for flood protection while creating generous outdoor living space. Inside, a spacious great room with a fireplace flows into a kitchen and dining area equipped with a breakfast bar for informal meals and family togetherness. The main floor also includes two bedrooms and a full hall bath, along with a compact stacked washer/dryer setup for efficient space use.

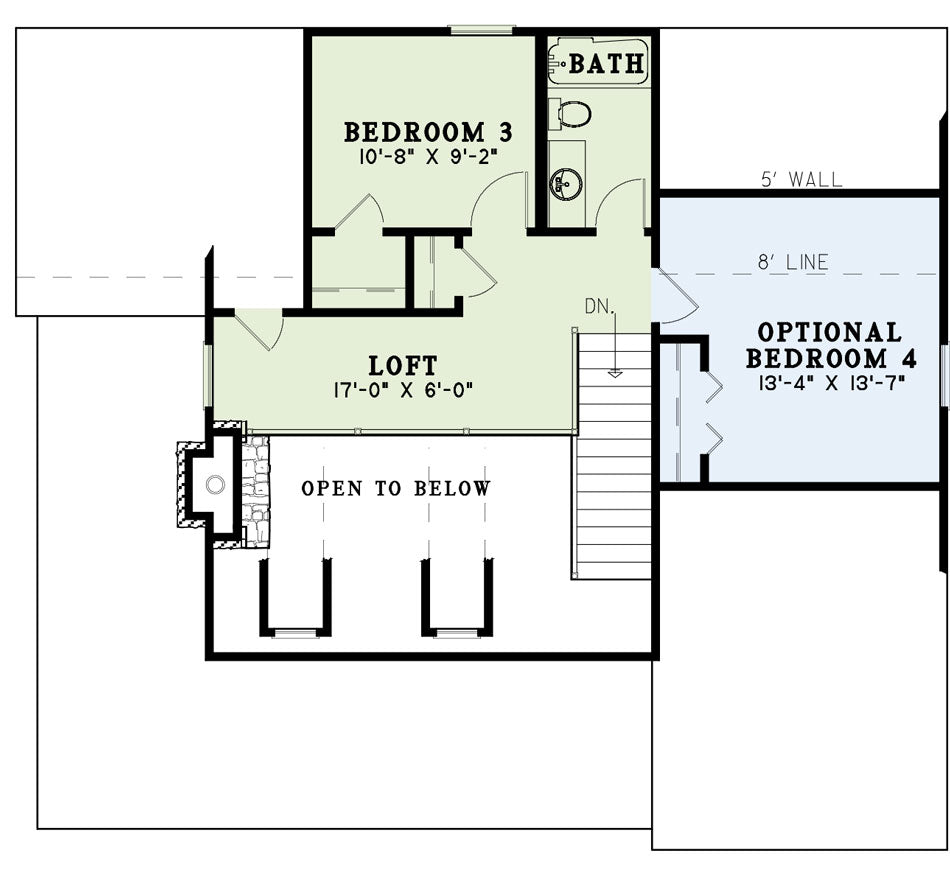

A rear grilling porch provides an ideal spot for outdoor cooking and dining with a view. Upstairs, a loft overlooks the great room and can serve as a flexible bonus space. Optional bedrooms and a second bath upstairs allow for expanded sleeping areas or guest accommodations, giving this house plan flexibility as needs evolve.
NDG 1190 Canoe Point II balances efficient use of space with thoughtful design, offering cozy indoor living and generous outdoor spaces — a smart choice for comfort, charm, and practicality in a scenic or waterfront home.
Key Highlights of House Plan NDG 1190 Canoe Point II
- 1.5-story house plan with approximately 1,472 sq. ft. of living space
- Three bedrooms and two full bathrooms, with optional expansion upstairs for additional sleeping
- Elevated design on stone columns — ideal for waterfront or flood-prone lots
- Large wrap-around covered porch for outdoor living and scenic views
- Great room with fireplace, flowing into kitchen and dining area with breakfast bar
- Rear grilling porch for outdoor meals and entertaining
- Main-floor stacked washer/dryer for convenience and efficient use of space
- Loft overlooking the great room — flexible bonus space or additional sleeping area
- Efficient layout suited for waterfront, cabin-style, or vacation-home living
Home Specifications
- Total Living Space: 1472
- Ridge Height (Ft.) 22
- Main Floor (Sq. Ft.): 1140 Sq.Ft
- Ridge Height (In.) 8
- Upper Floor (Sq. Ft.): 332 Sq.Ft.
- Main Ceiling Height: 8
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 519 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): N/A
- Garage: No
- Bonus (Sq.Ft): 199 Sq.Ft.
- Garage/Carport Type:N/A N/A
- Bedrooms: 3
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 39
- Width (Ft): 44
- Depth (In.) N/A
- Width (In.) 2
- Total Sq. Ft. 2190 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Loft
- Narrow Lot House Plans
- Open Floor Plan House Plans
- Outdoor Living Space
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in-Pantry
- Wrap-Around Porch
