Floor Plans

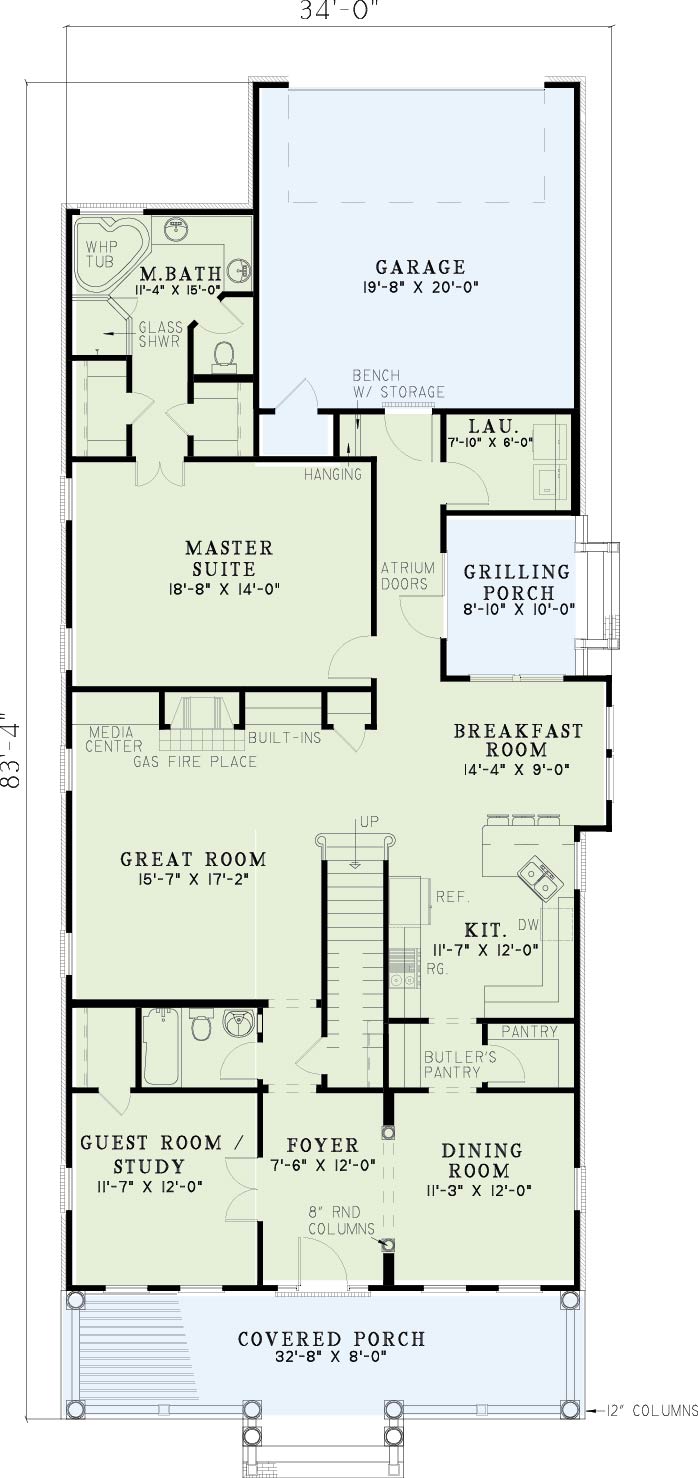

Floor Plan #1
Description
Upon entering this home notice the elegant dining room adjoined to a butler pantry, creating fluid entry to a marvelously spacious kitchen. The great room, complete with a romantic fireplace and built-in media center, is at the heart of this design with an open entry to the breakfast room. Enjoy countless possibilities entertaining on your convenient grilling porch. Stairs with left and right hand volutes take you to the spacious upper level. Two bedrooms with window seats, a full bath, and a bonus area with attic storage provide plenty of room for the kids.
Home Specifications
- Total Living Space: 2286
- Ridge Height (Ft.) 25
- Main Floor (Sq. Ft.): 1831 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): 455 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 356 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 429 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Rear Load Rear Load
- Bedrooms: 4
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 83
- Width (Ft): 32
- Depth (In.) 4
- Width (In.) N/A
- Total Sq. Ft. 3071 Sq.Ft.
- Customizable: Yes
Key Features
- Butler's Pantry
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Main Floor Master
- Narrow Lot House Plans
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
- Walk-in-Pantry
Plan Collections
- Village at Windstone II House Plans Collection
Plan Styles
- Country Home House Plans
- Farmhouse House Plans
- Low Country House Plans
- Southern House Plans
- Traditional House Plans
- Traditional Neighborhood Design (TND) House Plans
