Floor Plans
Floor Plan #1
Description

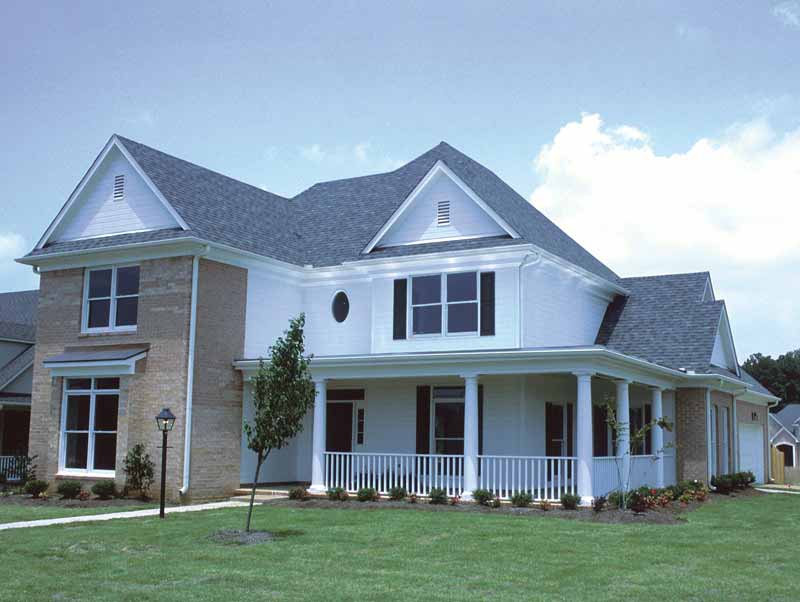

This spacious, four bedroom, two and a half bath Nelson Design Group home is the definition of grand southern style. A traditional wrap-around covered porch welcomes you inside a gorgeous foyer with open ceiling to the upper floor. Continuing, you’ll enter the heart of the design- the great room. Here, enjoy countless hours of excitement and relaxation with family and friends. Convenient atrium doors open from the great room to a rear covered porch with ten inch columns for romantic nights under the stars. A secluded master suite and bath, enhanced by an elegant sitting room, provides all the privacy you need. Traveling up an open stairway you’ll find ample bedroom space for the kids, a perfect guest quarters or playroom complete with computer center and balcony walk opening over the foyer below.
Home Specifications
- Total Living Space: 2676
- Ridge Height (Ft.) 30

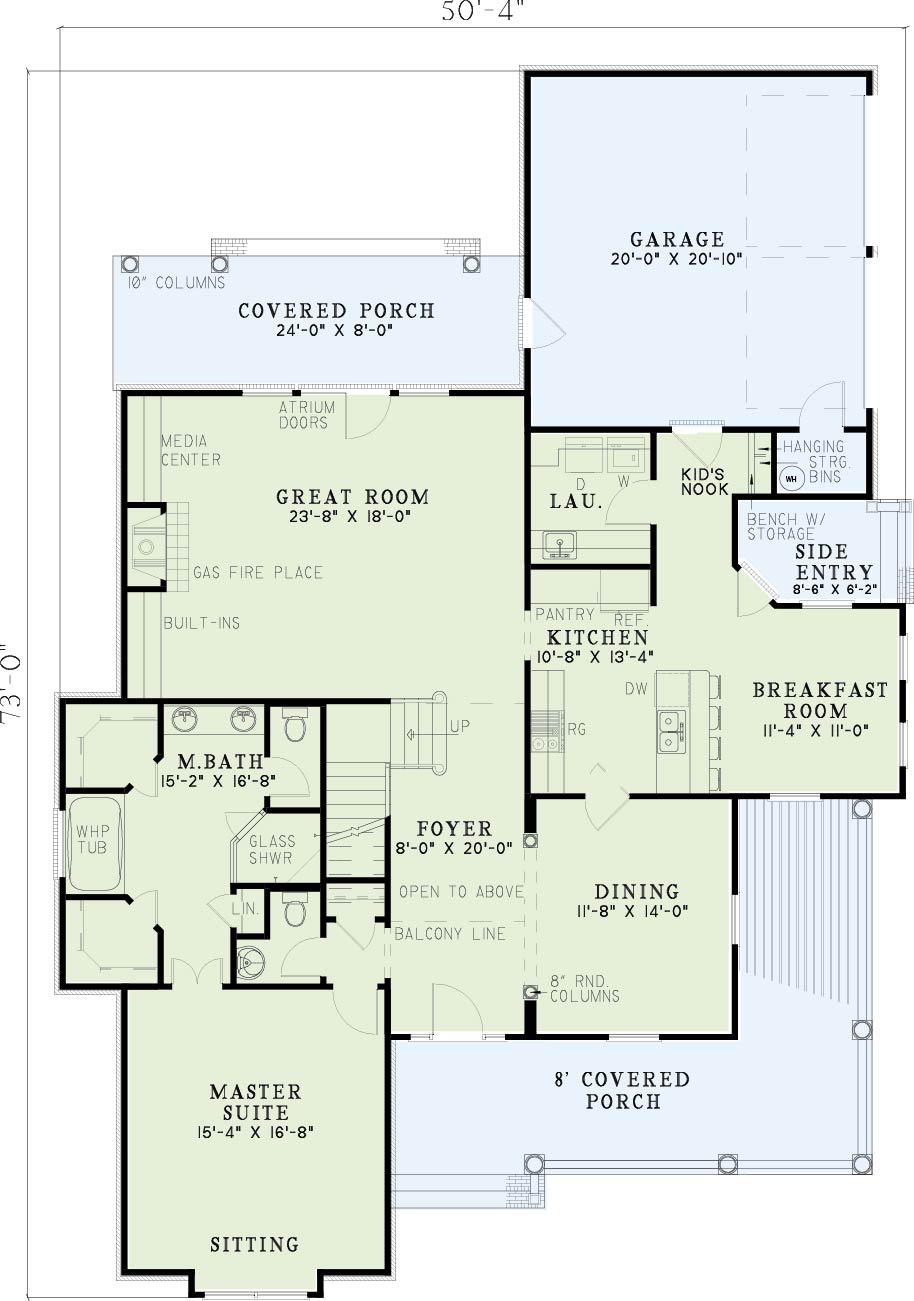

- Main Floor (Sq. Ft.): 1797 Sq.Ft
- Ridge Height (In.) 6

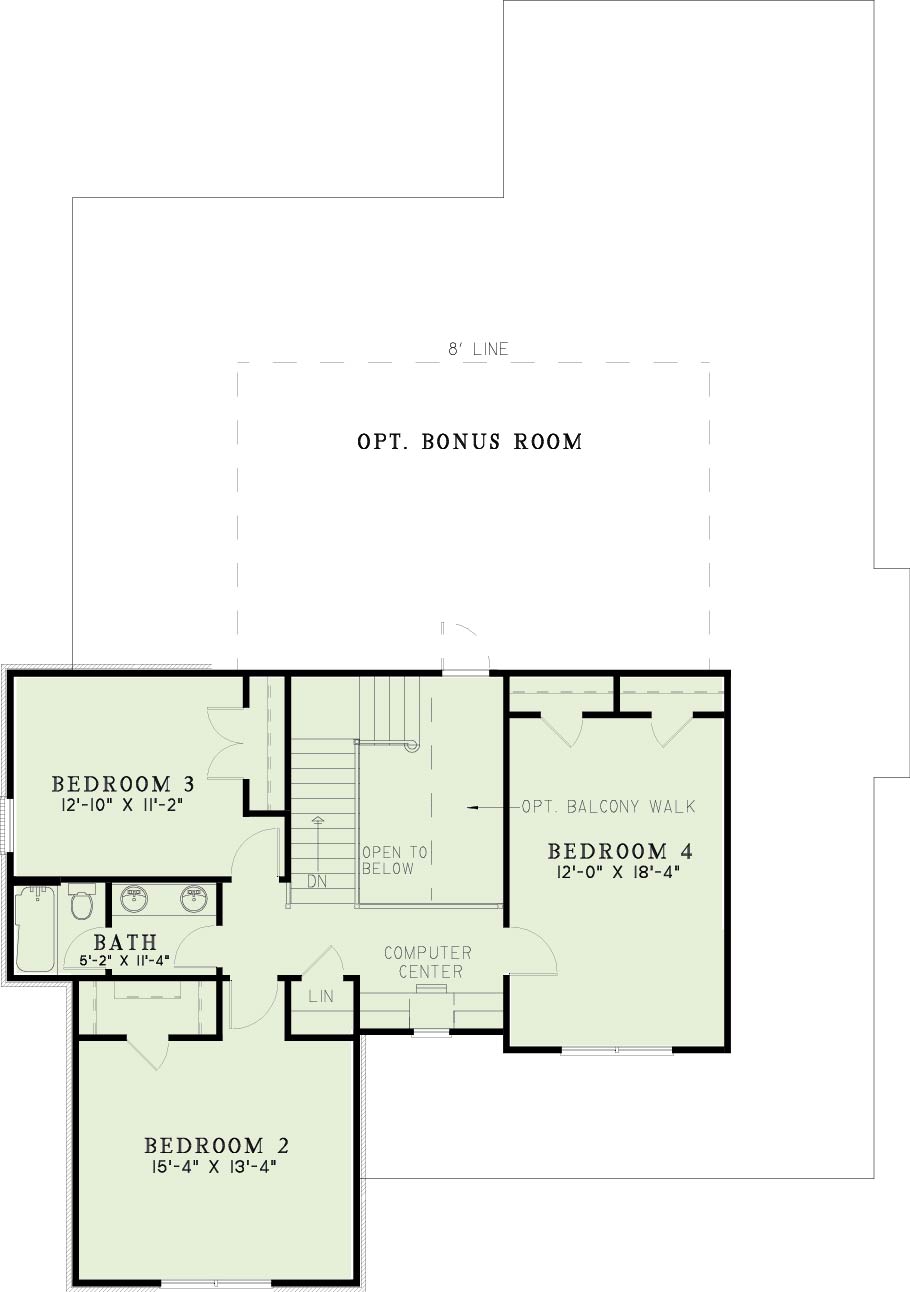

- Upper Floor (Sq. Ft.): 879 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 581 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 461 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Side Load Side Load
- Bedrooms: 4
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 12:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 73
- Width (Ft): 50
- Depth (In.) N/A
- Width (In.) 4
- Total Sq. Ft. 3718 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Main Floor Master
- Mudroom
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
- Wrap-Around Porch
Plan Collections
- Village at Windstone II House Plans Collection
Plan Styles
- Country Home House Plans
- Southern House Plans
- Traditional House Plans
- Traditional Neighborhood Design (TND) House Plans
