House Plan 439 Hidden Hill Cove, Multi-Family House Plan
Or order by phone: (870) 931-5777
Floor Plans

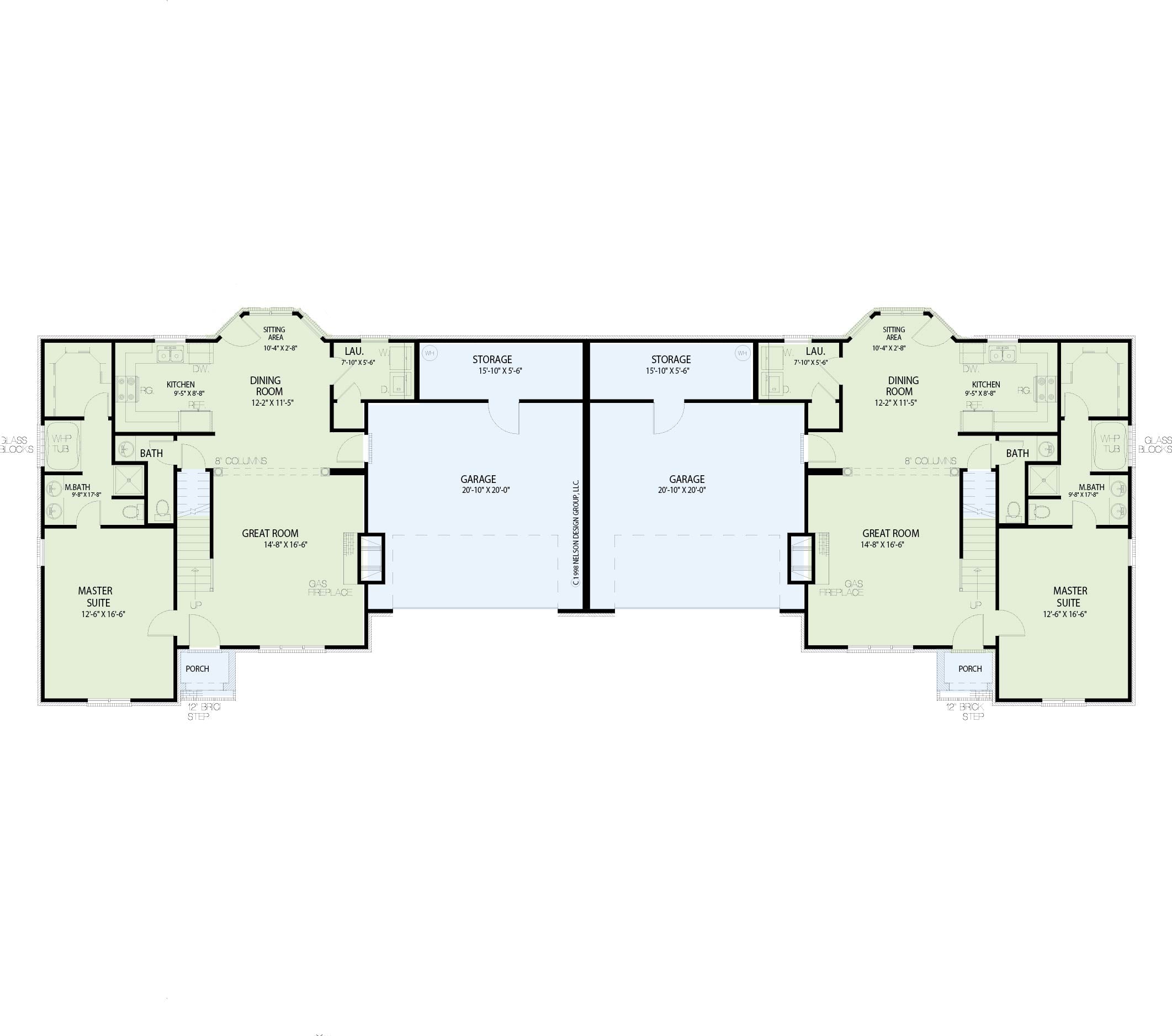

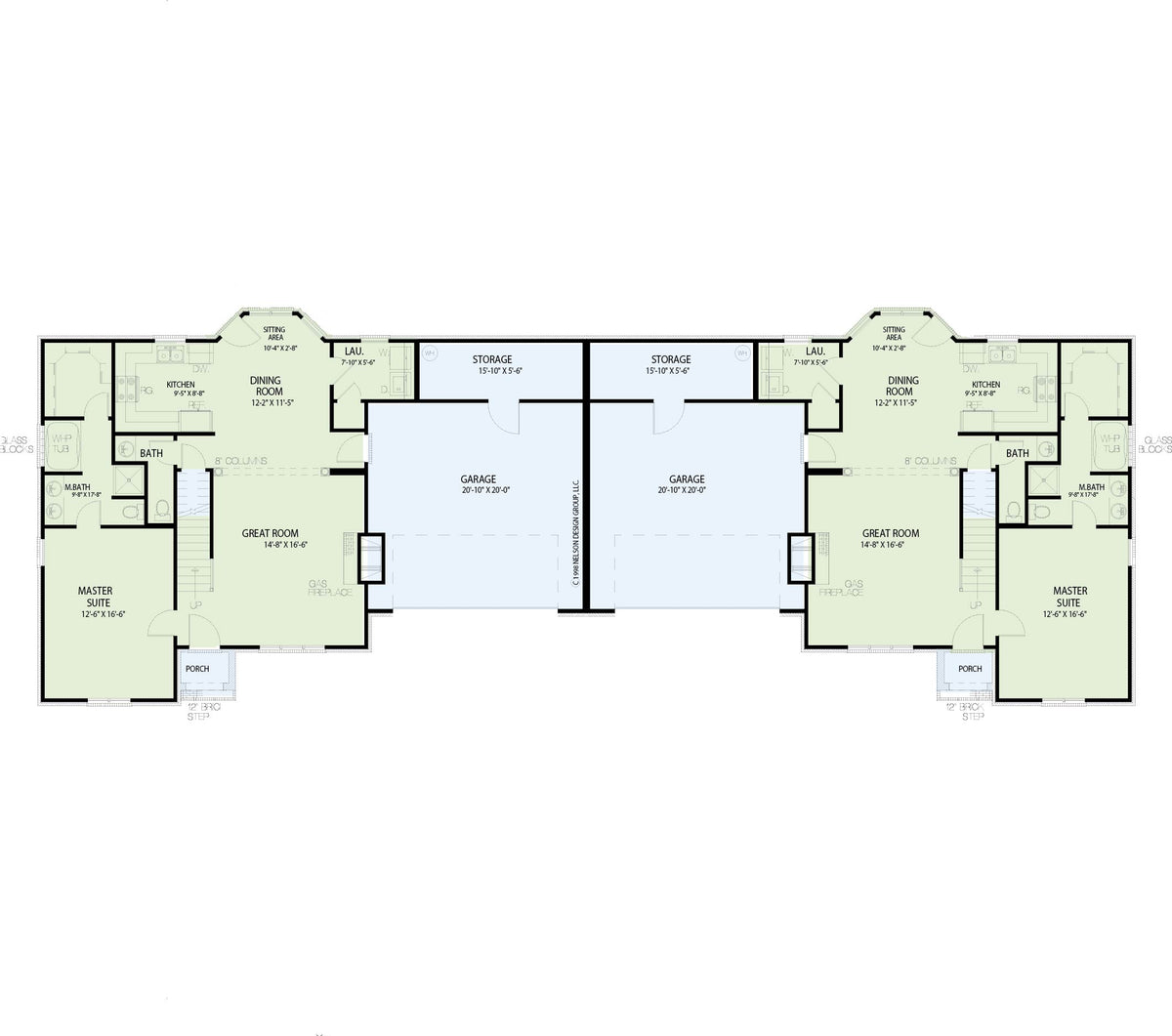

Floor Plan #1
Description
Family will thoroughly enjoy this duplex plan. The great room has a cozy fireplace and opens to the formal dining room and kitchen. A bay window sitting area has a wonderful view and access to the back yard. For privacy and convenience, the master suite is located on the main floor and has a large bathroom with whirlpool tub, separate shower, and large walk-in closet. Upstairs you'll find two additional bedrooms each with a large walk-in closet, private vanity and sharing a bathroom. A spacious bonus room has a dormer window seat and sloped ceiling.
Floor Plan Specifications:
Heat/Cooled Unit 1 & 2 Main Floor: 1048 SQ. FT
Heat/Cooled Unit 1 & 2 Upper Floor: 649 SQ. FT
Heat/Cooled Total: 3349 SQ. FT
Garage, Storage, & Porch Unit 1 & 2: 521 SQ. FT
Total: 4436 SQ. FT
Bonus Room 1 & 2: 295 SQ. FT
Total Bonus Room 1 & 2: 590 SQ. FT
Home Specifications
- Total Living Space: 1697
- Ridge Height (Ft.) 25
- Main Floor (Sq. Ft.): 1048 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): 649 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 208 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 834 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 295 Sq.Ft.
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 3
- Carport: N/A
- Full Baths: 1
- Roof Pitch: 12:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 37
- Width (Ft): 105
- Depth (In.) 10
- Width (In.) 8
- Total Sq. Ft. 2739 Sq.Ft.
- Customizable: Yes
Key Features
- Arched Entry
- Bonus Room Over Garage
- Covered Front Porch
- Formal Dining Room
- Great Room
- Jack & Jill Bathroom
- Main Floor Master
- Open Floor Plan House Plans
- Sitting Area
- Split Bedroom Design
- Walk-in Closet
Plan Collections
- Multi-Family House Plans
Plan Styles
- Traditional House Plans
