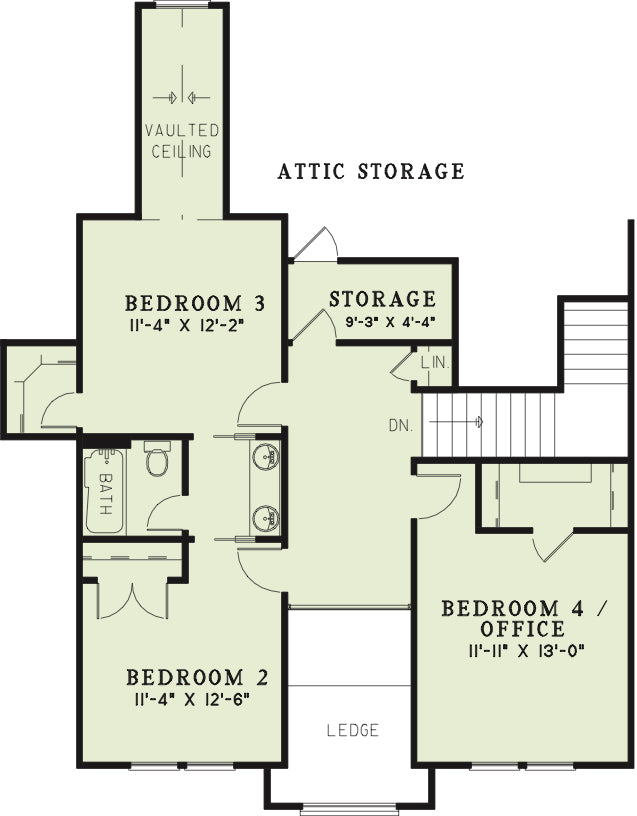

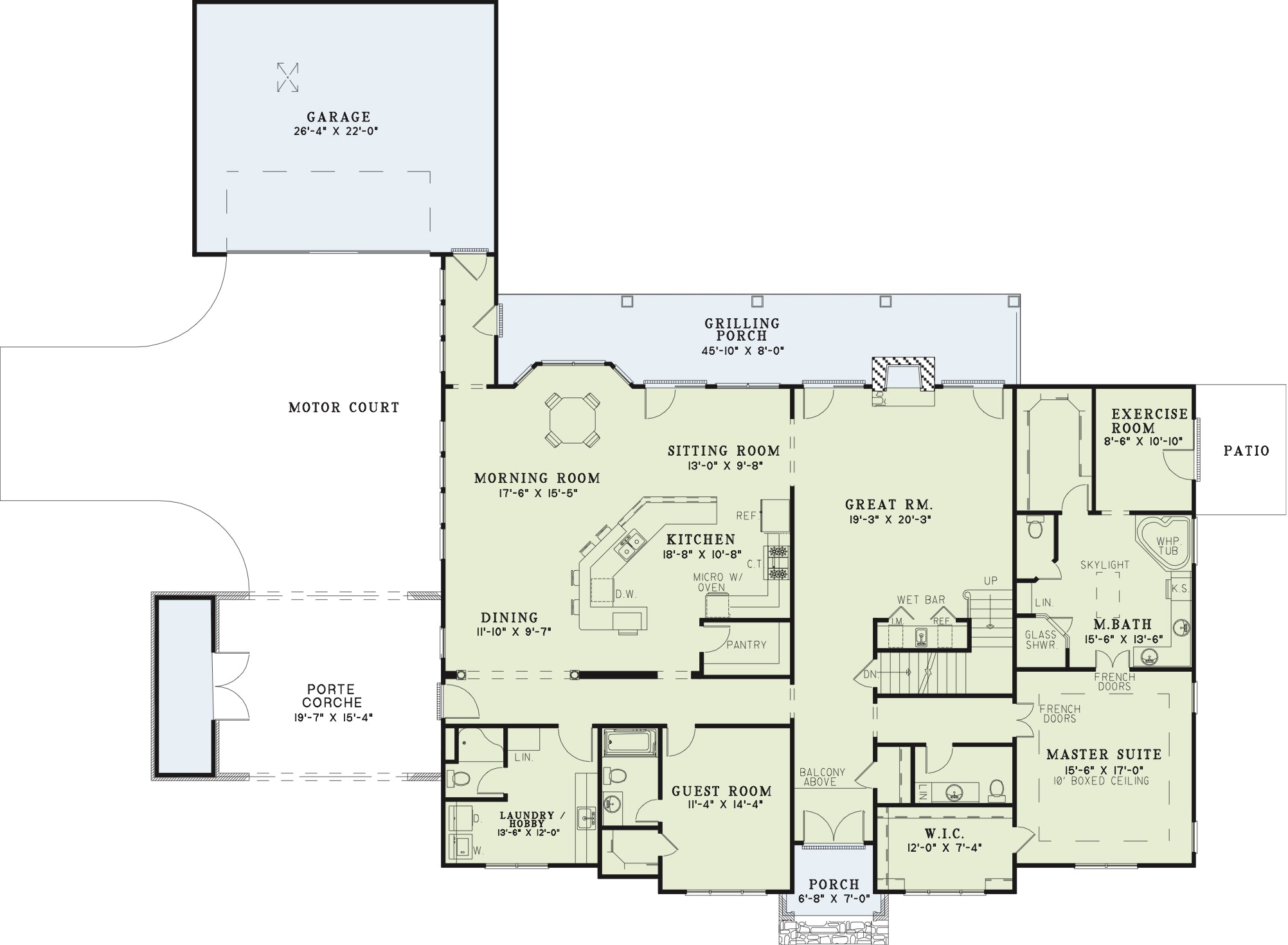

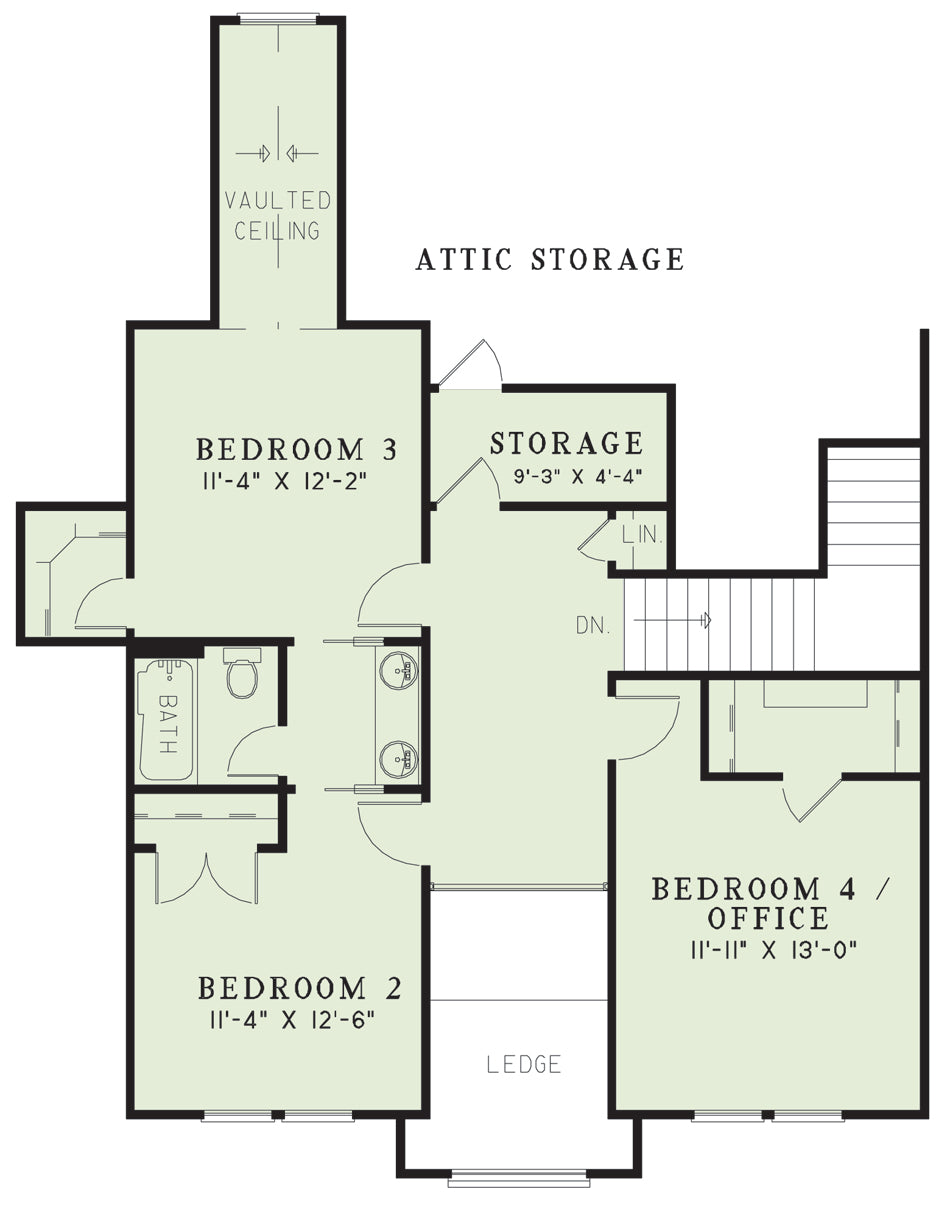

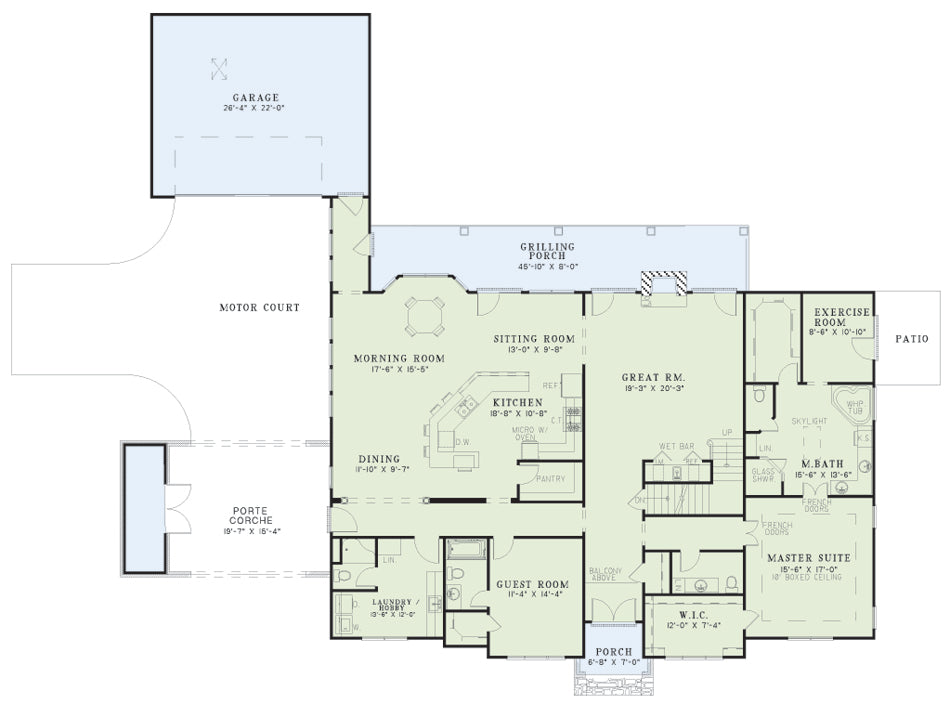

Floor Plans
Floor Plan #1
Description
From the traditional porte corchere and motor court to the eloquent and modern master suite, no detail has been overlooked in this splendid offering. The great room harbors a majestic fireplace tucked between two stylish entries to the expansive grilling porch. The functional kitchen features a large walk-in pantry and easily serves the adjoining sitting room, bright morning room with a bay window and formal dining room. Behind two lovely sets of French doors, the sky-lit master suite offers an exercise room and private patio in addition to the spacious bath.
Home Specifications
- Total Living Space: 3818
- Ridge Height (Ft.) 32
- Main Floor (Sq. Ft.): 2967 Sq.Ft
- Ridge Height (In.) 9
- Upper Floor (Sq. Ft.): 851 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 432 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 990 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Front Load and Porte-Cochere Front Load and Porte-Cochere
- Bedrooms: 5
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 10:12
- Half Baths: 2
- Porch Roof Pitch: 10:12
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: Yes
- Depth (Ft): 81
- Width (Ft): 88
- Depth (In.) 4
- Width (In.) 8
- Total Sq. Ft. 5240 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Covered Rear Porch
- Decks Patios Balconies
- Exercise Room
- Great Room
- Grilling Porch
- Home Office/Study
- Jack & Jill Bathroom
- Main Floor Master
- No Formal Dining
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Porte-Cochere
- Sitting Area
- Split Bedroom Design
- Walk-in Closet
- Walk-in-Pantry
