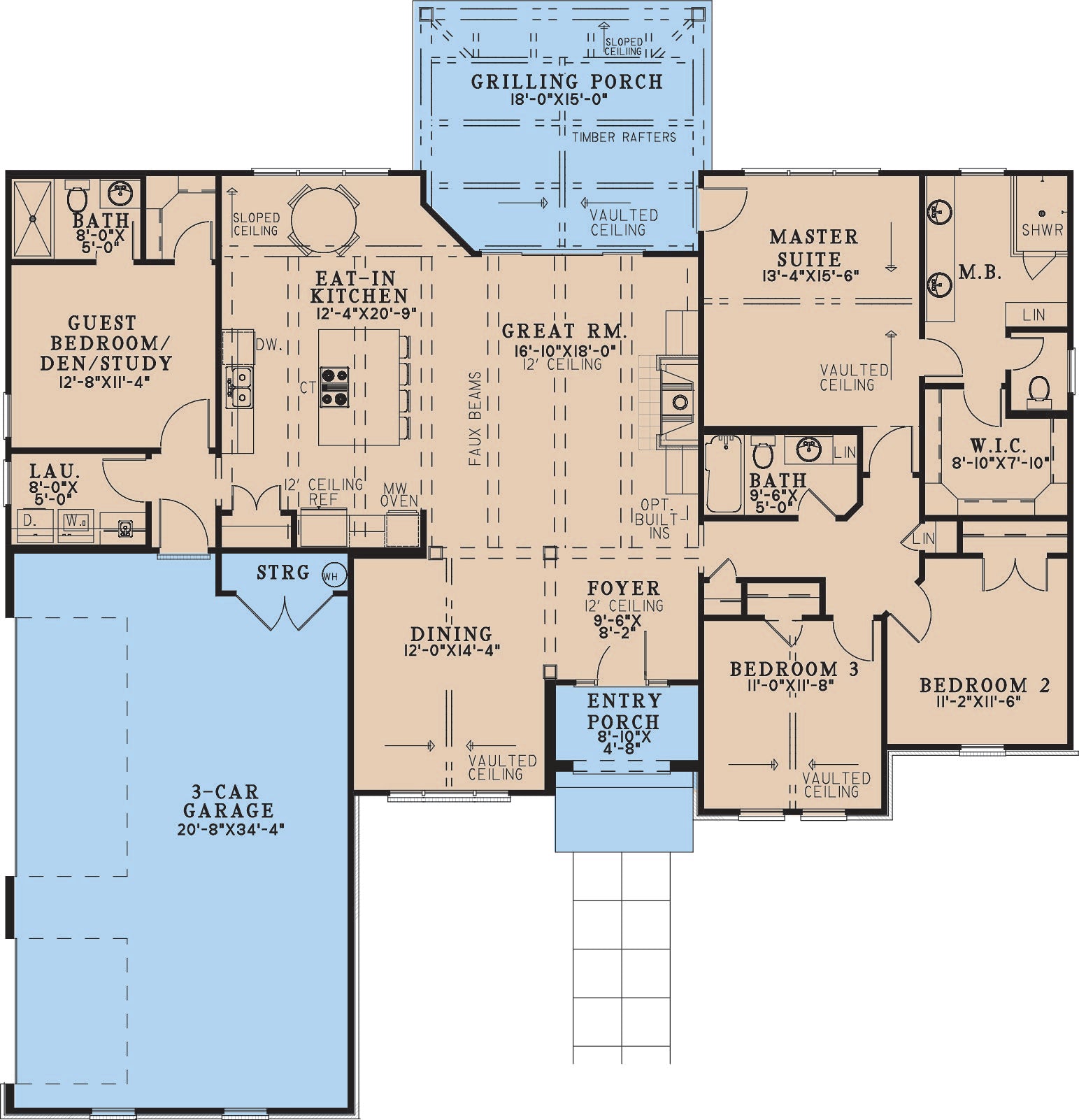

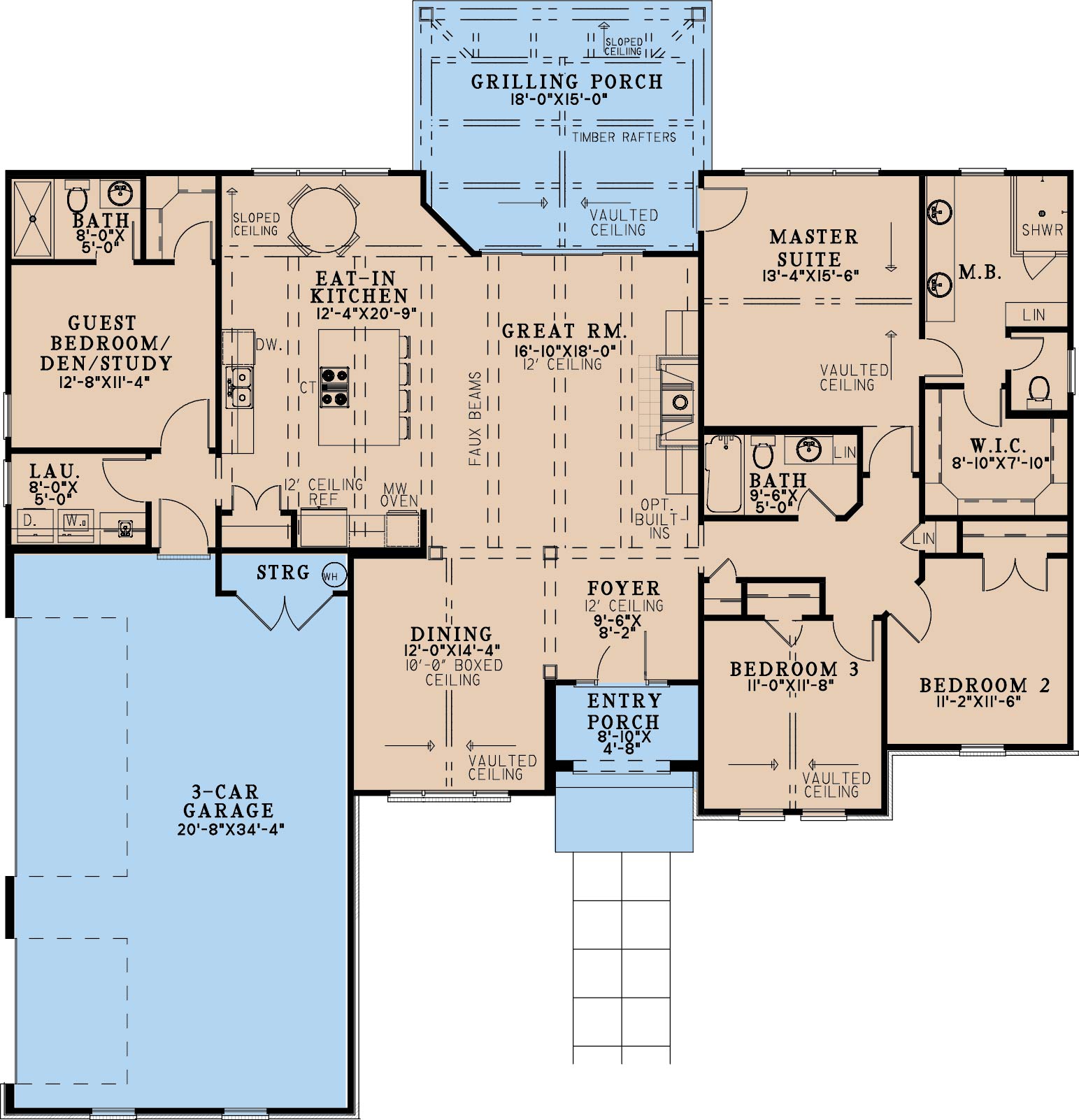

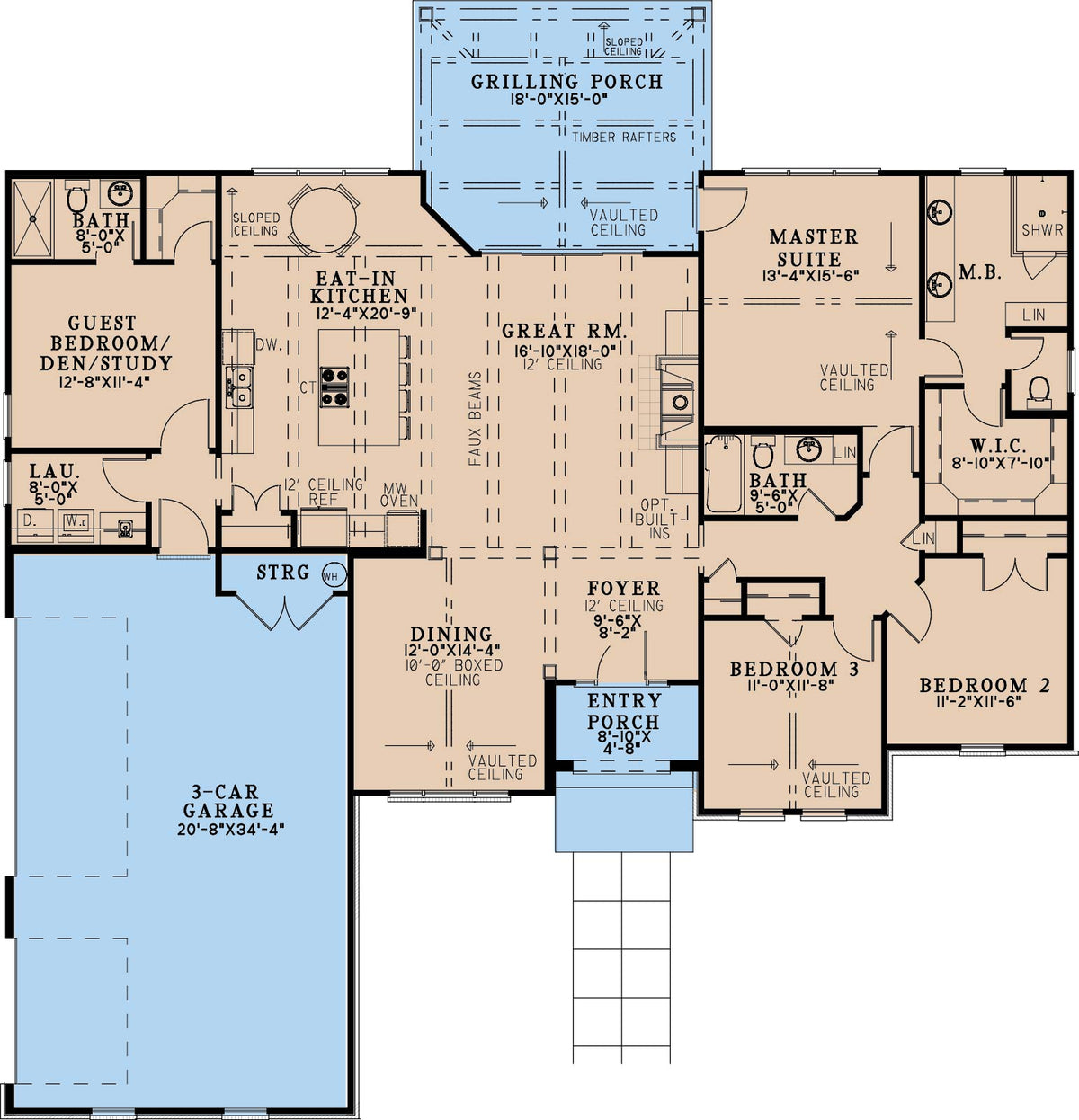

Floor Plan #1
Description
Papillon Villa – House Plan MEN 5419
The Papillon Villa House Plan MEN 5419 offers an elegant Tuscan‑style design with approximately 2,076 square feet of living space. This single‑story home features 4 bedrooms, 3 full baths, and a 3‑bay garage, making it a standout among refined house plans.
Layout Highlights

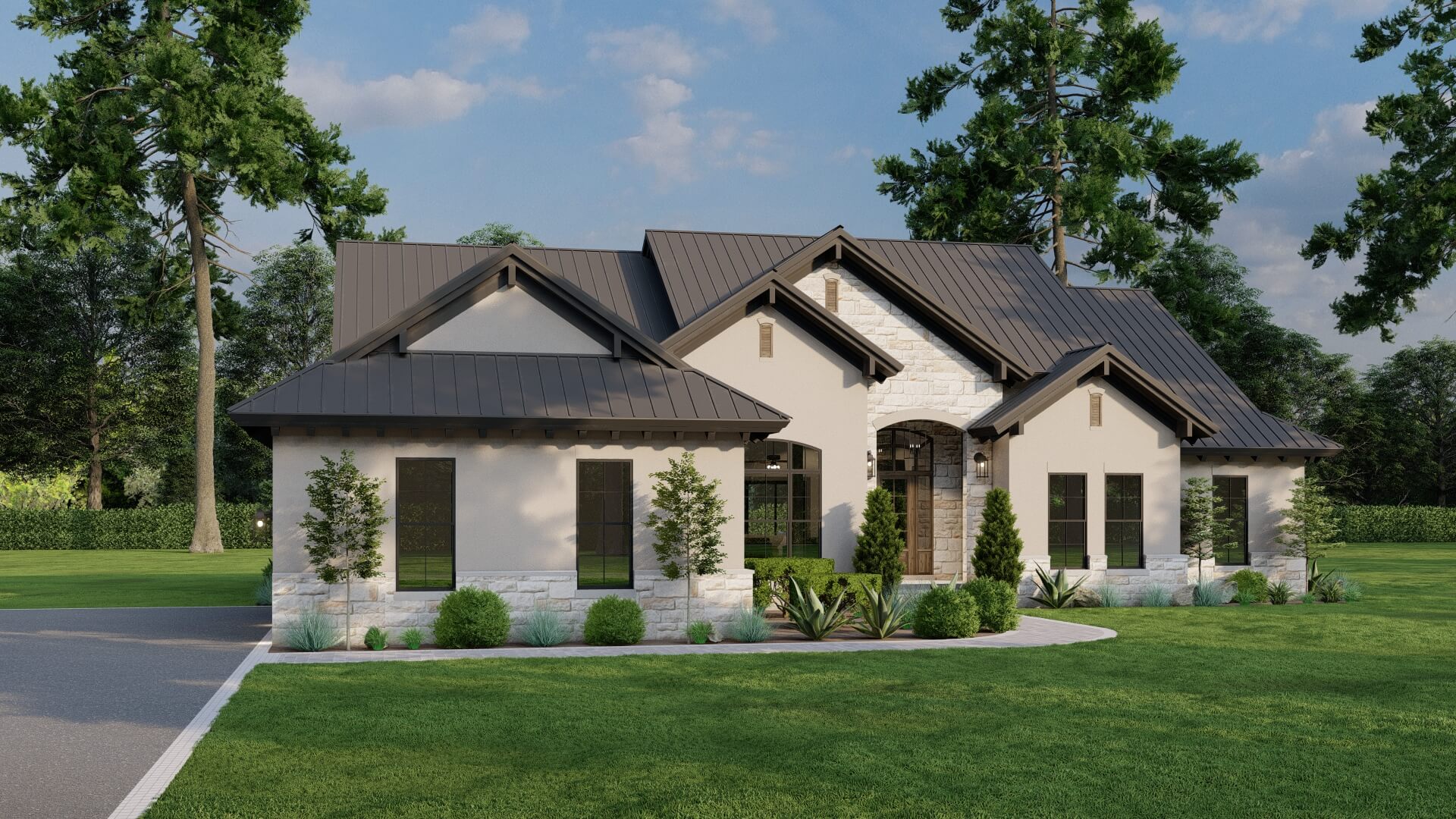

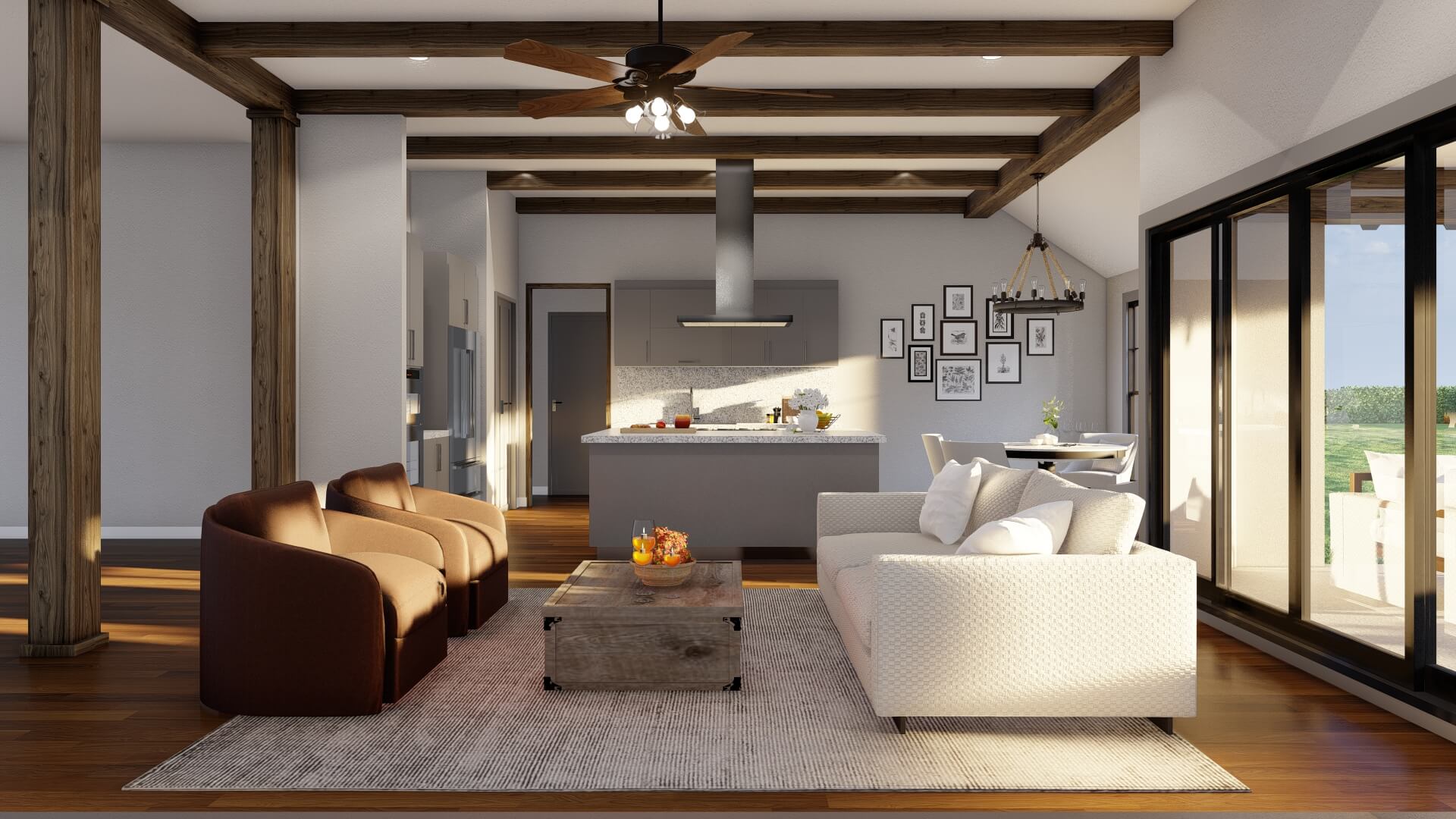

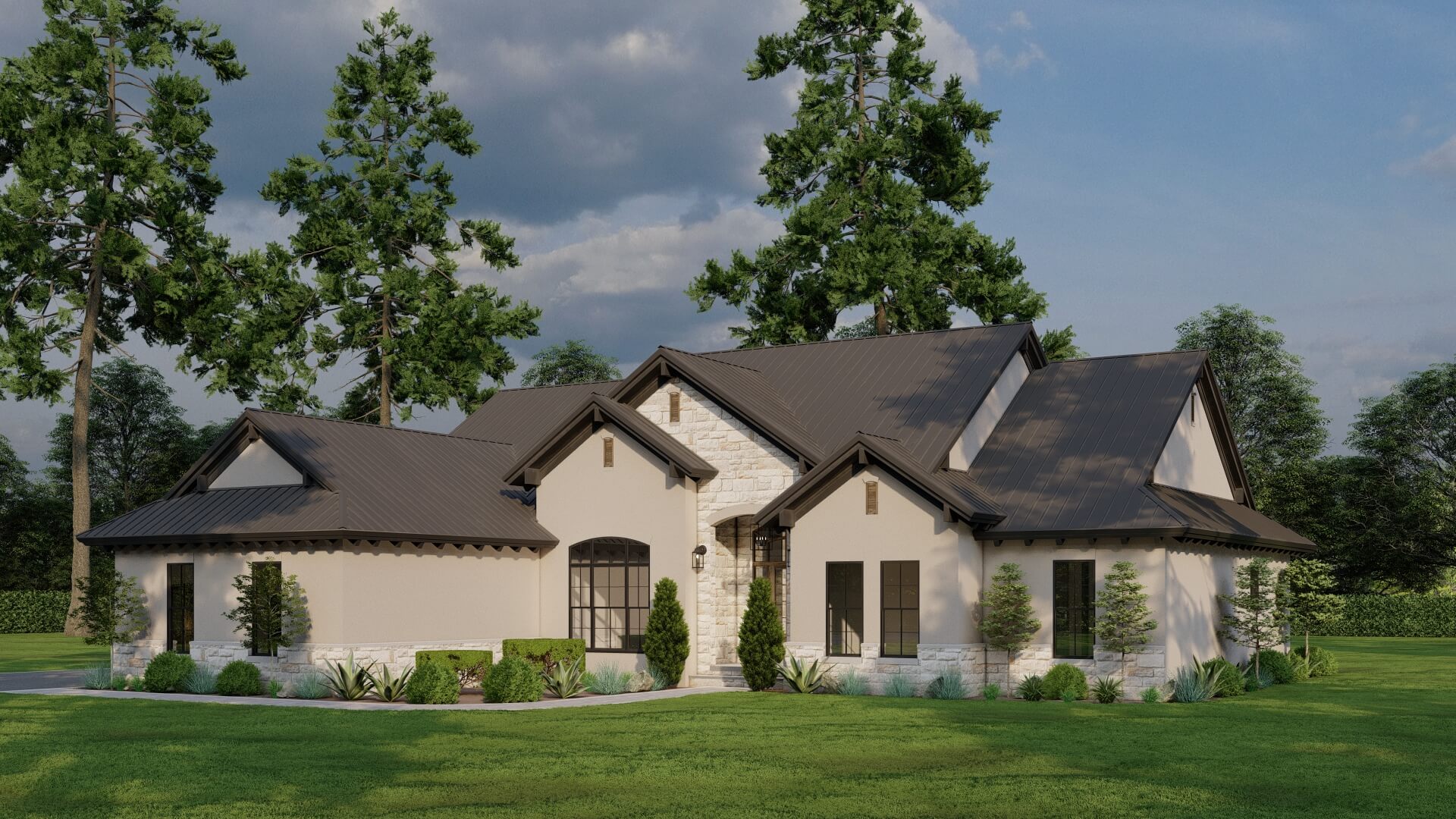

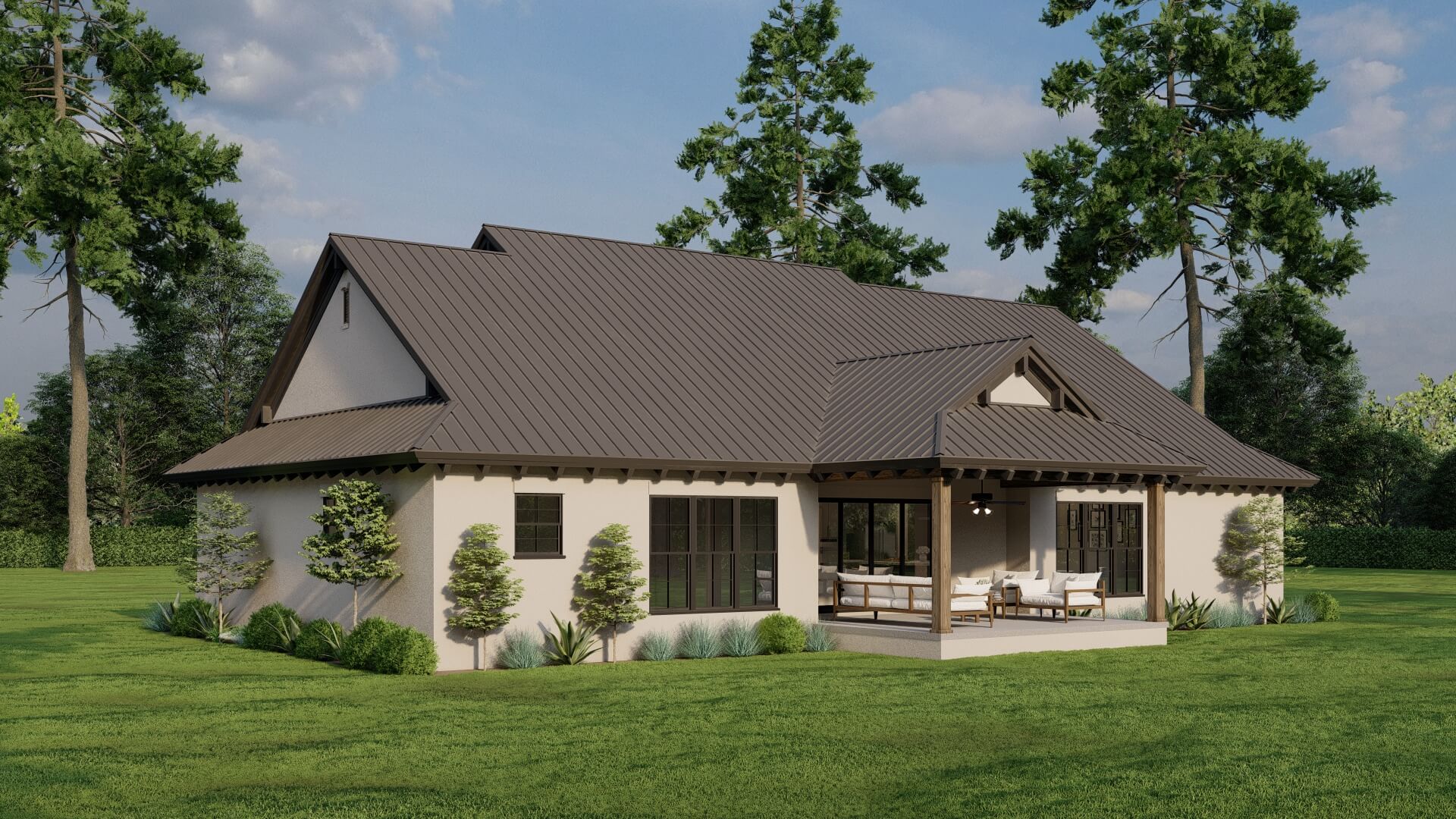

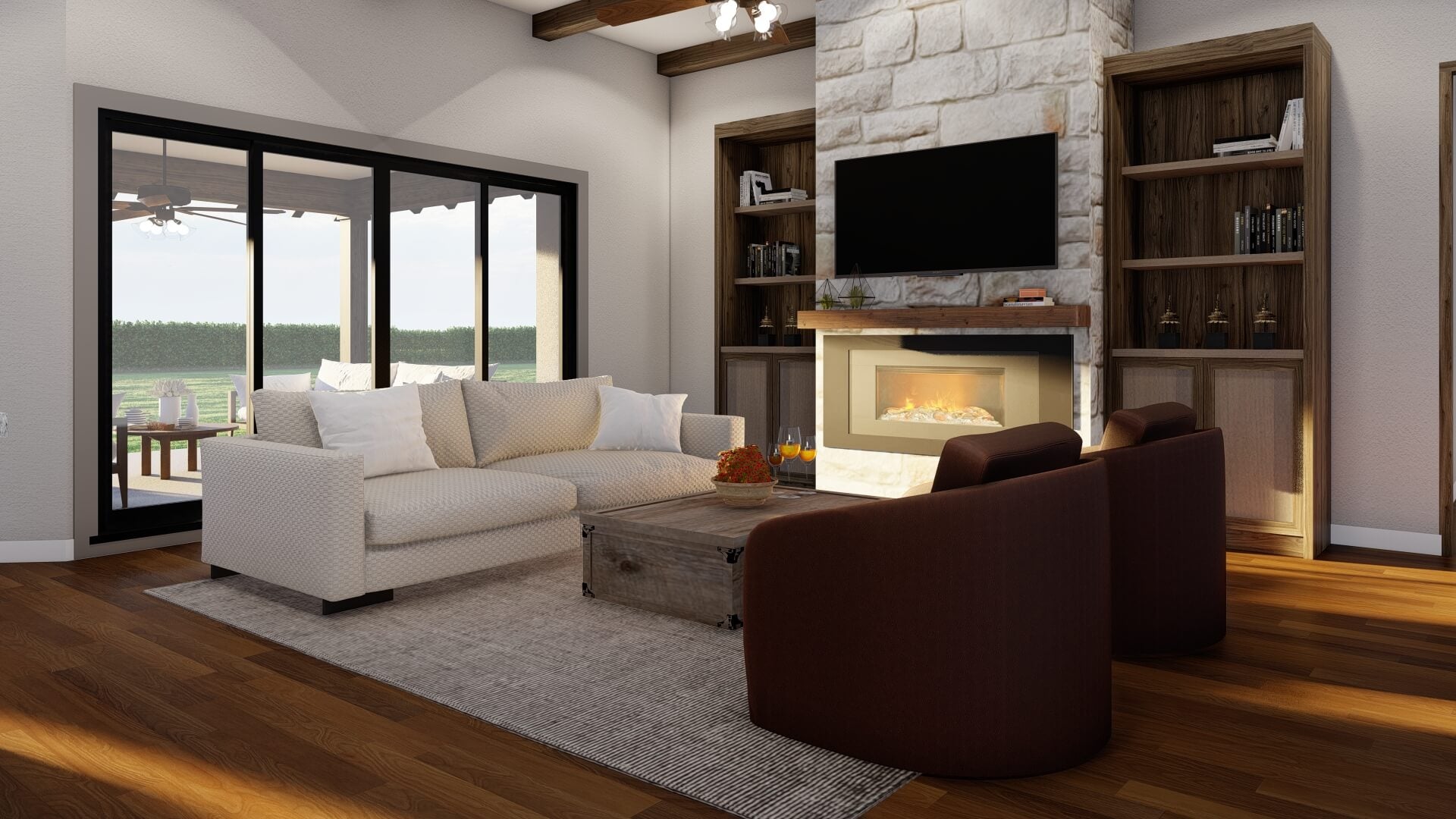

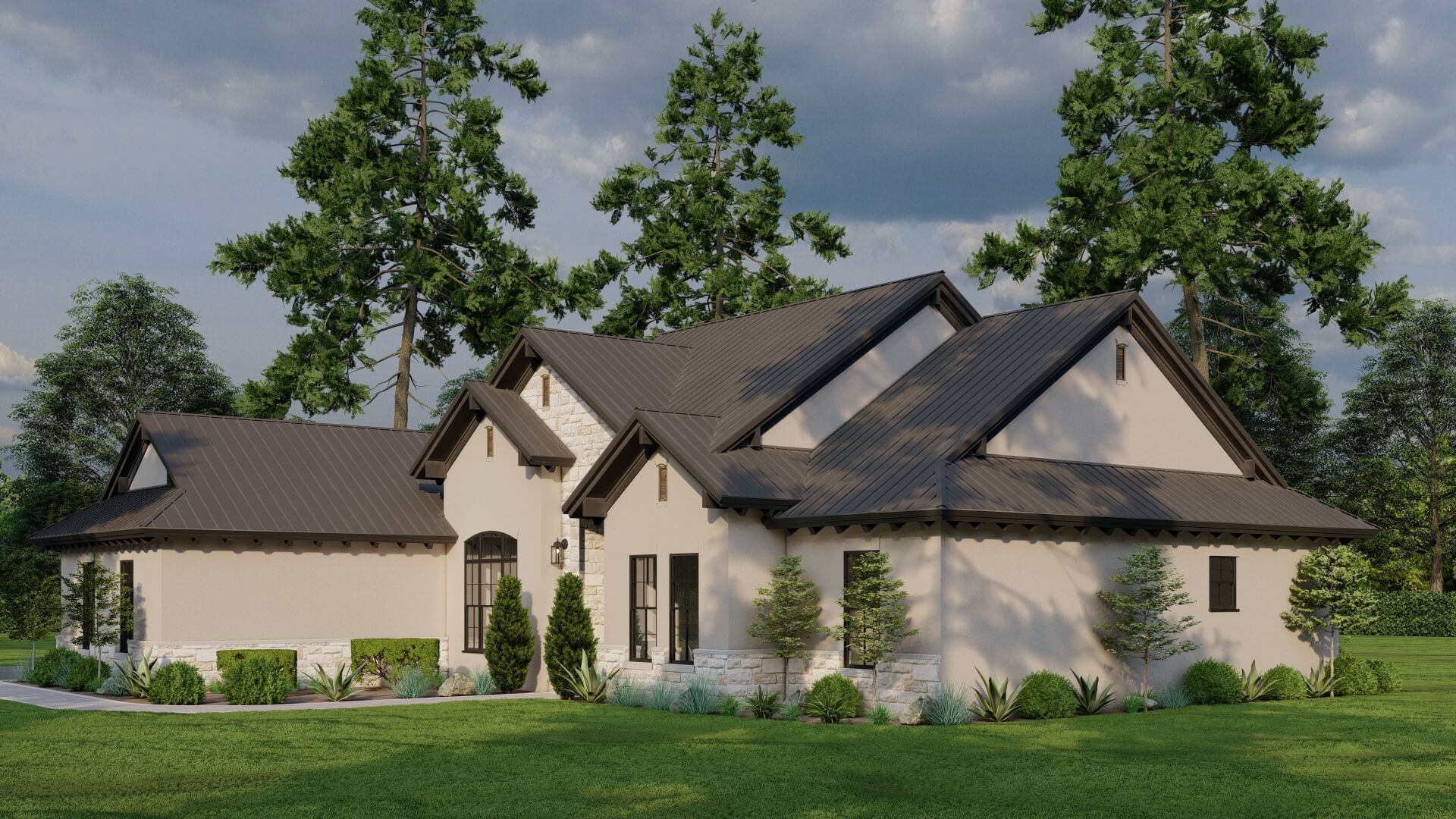

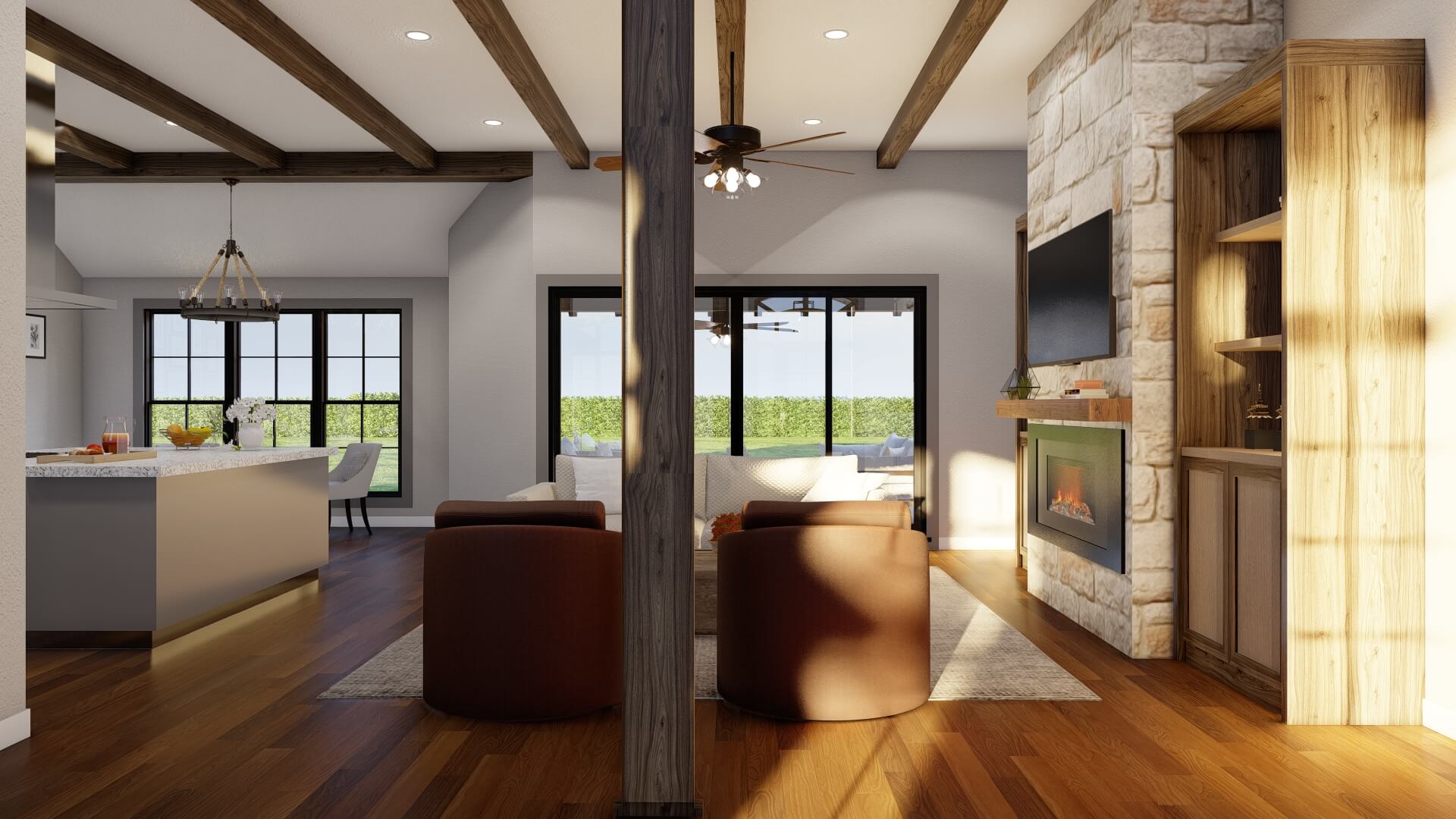

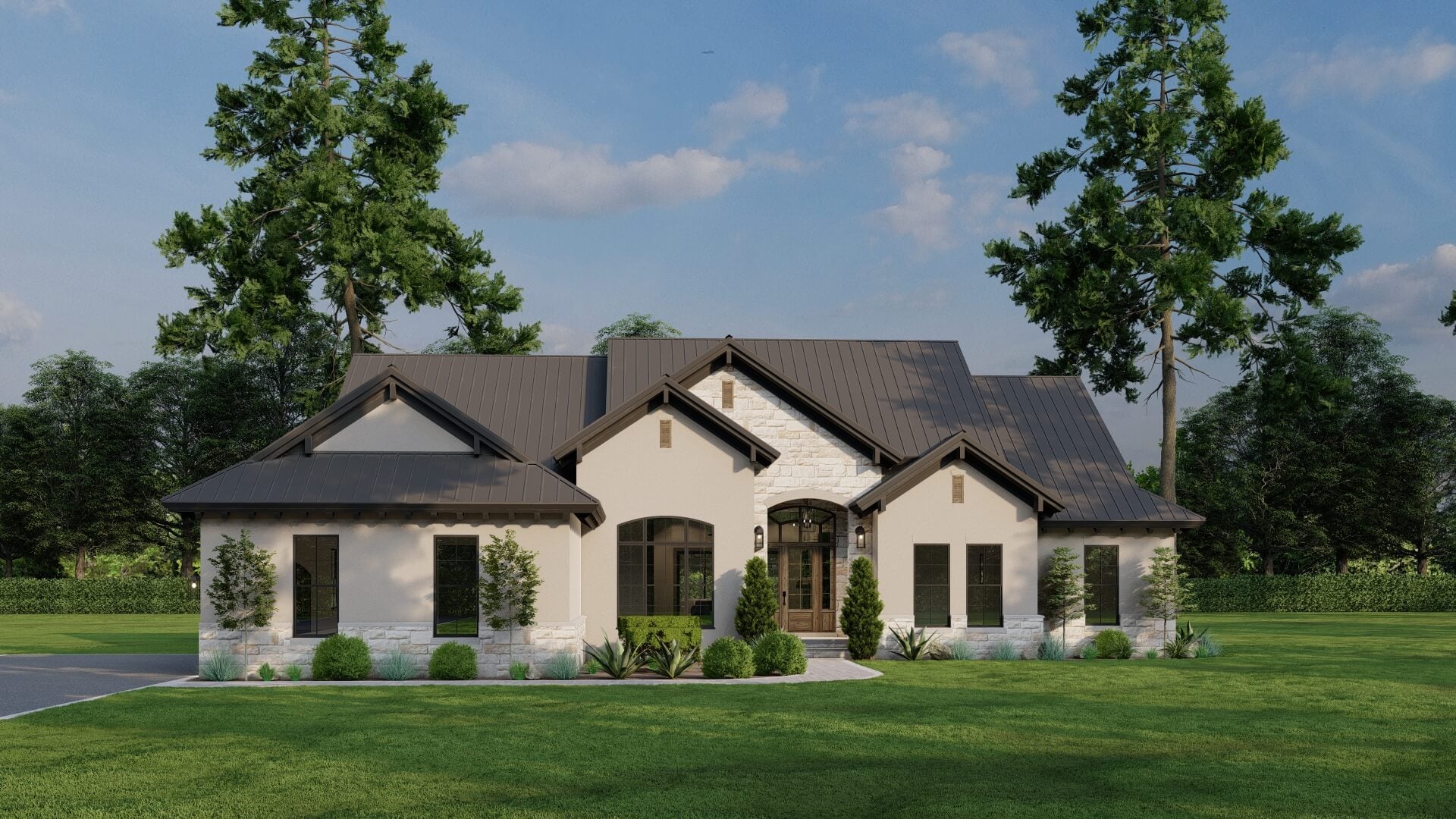

This home features a richly textured exterior with stucco and stone accents that reflect Tuscan and Mediterranean influences. At 66 feet wide by 68 feet deep, the footprint fits comfortably on many lots. The interior plan is designed for modern living, centered around an open great room that flows into the dining and kitchen areas. The layout is ideal for entertaining and comfortable family life. The master suite comes with luxurious amenities, and the additional bedrooms and bathrooms provide flexibility for guests, children, or a home office.
Key Features
- Approximately 2,076 square feet of living space.
- 4 bedrooms and 3 full baths for comfortable accommodation.
- 3‑bay garage offering generous storage and vehicle space.
- Tuscan/Mediterranean architectural design with rich exterior materials.
- Open‑concept living areas for easy flow and modern lifestyle.
- Side‑entry or courtyard‑friendly layout that enhances curb appeal.
- Flexible bedroom and bathroom arrangement suited for families or guests.
Home Specifications
- Total Living Space: 2076
- Ridge Height (Ft.) 24
- Main Floor (Sq. Ft.): 2076 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): 302 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 740 Sq.Ft.
- Garage: 3 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Side Load Side Load
- Bedrooms: 4
- Carport: No
- Full Baths: 3
- Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: Yes
- Depth (Ft): 68
- Width (Ft): 66
- Depth (In.) 4
- Width (In.) N/A
- Total Sq. Ft. 3118 Sq.Ft.
- Customizable: N/A
Key Features
- Arched Entry
- Covered Front Porch
- Formal Dining Room
- Game Room
- Great Room
- Grilling Porch
- Home Office/Study
- Kitchen Island
- Main Floor Master
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Oversized Garage
- Peninsula/Eating Bar
- Single Story
- Vaulted High Cathedral Ceiling
- Walk-in Closet
