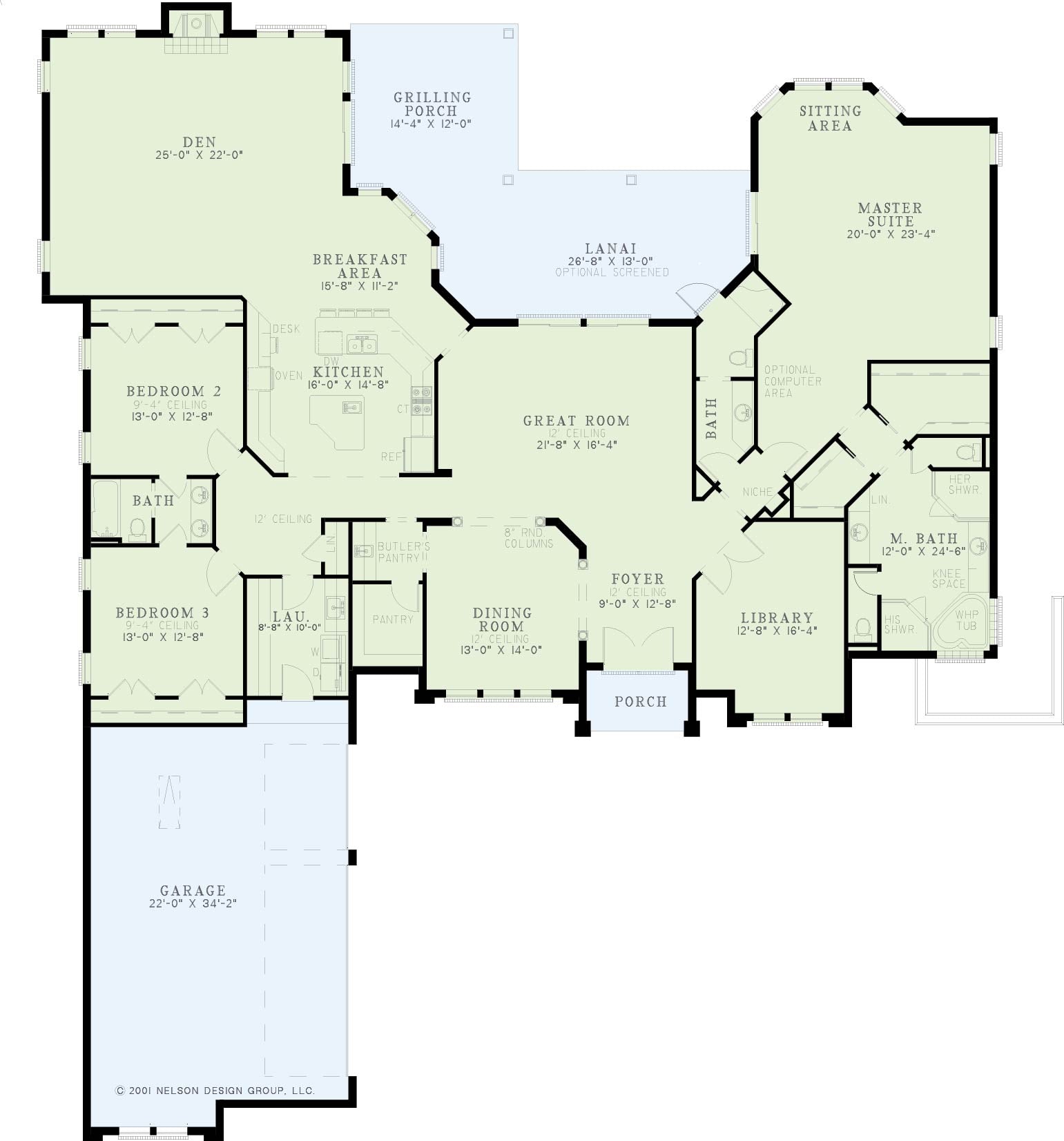

Floor Plan #1
Description

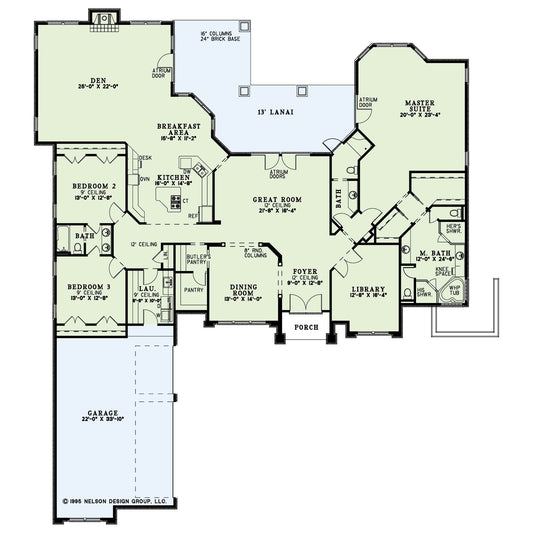

Note: 8-inch concrete wall construction and tile roofing. See NDG 386 for a similar wood-framed version.
House Plan 558 – The Arlington: A Spacious Florida Retreat
Looking for a home that combines elegance with functionality? House Plan 558 – The Arlington offers 3,654 sq ft of thoughtfully designed space, featuring 3 bedrooms, 3 bathrooms, and a 3-car courtyard garage. Designed with Florida living in mind, this plan includes a spacious great room with a 12-foot ceiling and a covered rear porch, perfect for enjoying the outdoors.
Key Features:
-
Open Floor Plan: The foyer leads to an expansive great room and formal dining room, creating an inviting space for gatherings.
-
Gourmet Kitchen: The kitchen, breakfast room, and den with fireplace all look out on the lanai with beaded ceiling and columns, ideal for both daily living and entertaining.
-
Private Master Suite: The master suite includes a bay window, walk-in closet, and a private bath, ensuring comfort and privacy.
-
Quality Construction: Built with 8-inch concrete walls and a tile roof, this home is designed for durability and style.
Whether you're looking to build your dream home or seeking a vacation retreat, House Plan 558 – The Arlington offers a blend of style and practicality that enhances your property's value and functionality.
Home Specifications
- Total Living Space: 3654
- Ridge Height (Ft.) 24
- Main Floor (Sq. Ft.): 3654 Sq.Ft
- Ridge Height (In.) 6
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 10
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): 528 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 812 Sq.Ft.
- Garage: 3 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Court Yard Court Yard
- Bedrooms: 3
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: Concrete
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 97
- Width (Ft): 81
- Depth (In.) 2
- Width (In.) 7
- Total Sq. Ft. 4994 Sq.Ft.
- Customizable: Yes
Key Features
- Arched Entry
- Butler's Pantry
- Covered Front Porch
- Covered Rear Porch
- Decks Patios Balconies
- Formal Dining Room
- Great Room
- Grilling Porch
- Jack & Jill Bathroom
- Kitchen Island
- Main Floor Master
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Sitting Area
- Split Bedroom Design
- Vacation Golf Course
- Walk-in Closet
- Walk-in-Pantry
