Floor Plans

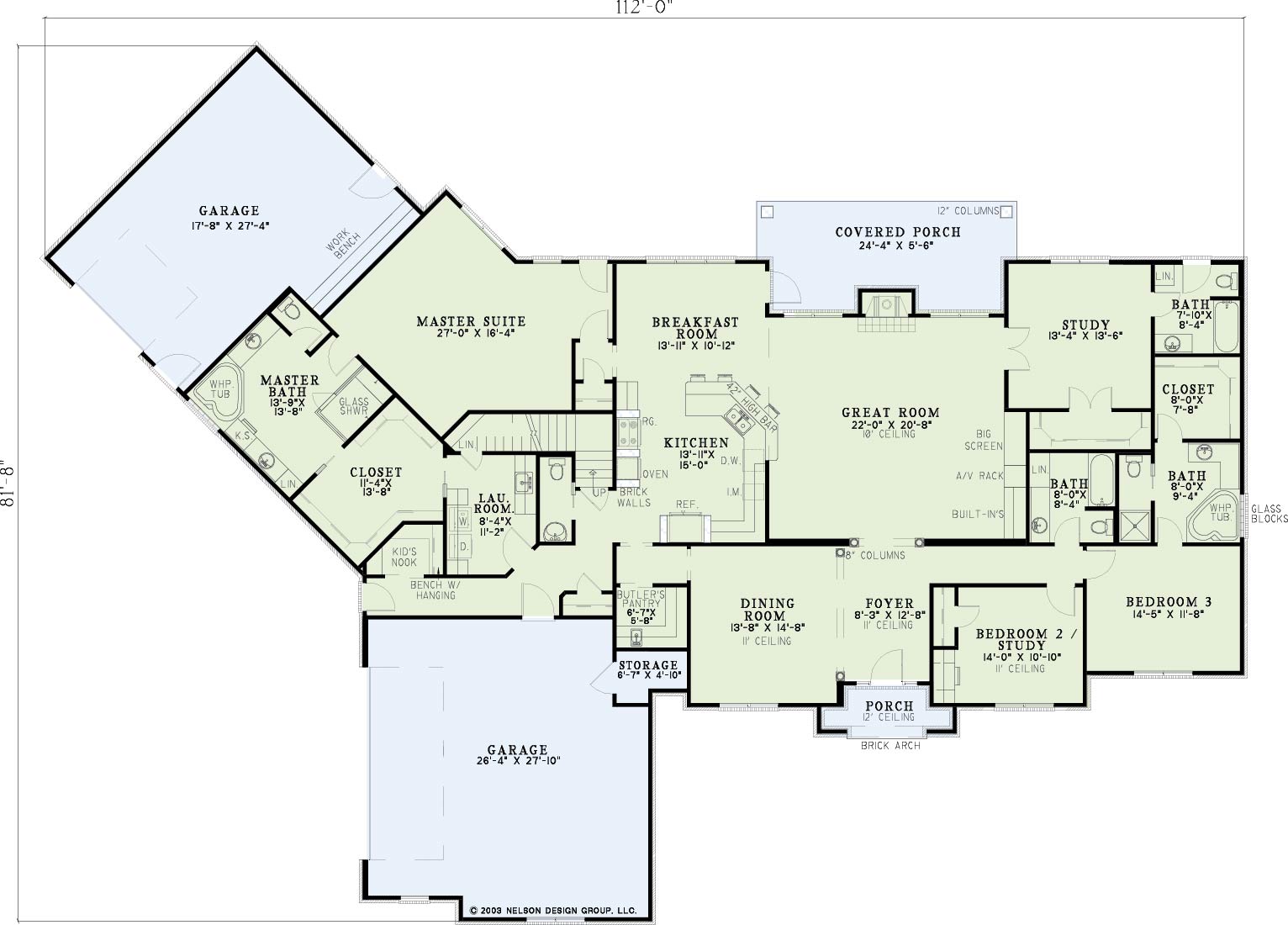

Floor Plan #1
Description
Brick and stone create a unique exterior combination on this Nelson Design Group home. Entertain friends and family in the large great room with fireplace and built-ins. This split bedroom design offers privacy and comfort for all family members. The spacious master suite requires its own wing of the home with a huge bedroom area, walk-in closet, and amenity-filled master bath. The kid?s nook allows the children to keep all their books, coats and sports equipment organized. Two additional bedrooms and a study are located on the other side of this home.
Home Specifications
- Total Living Space: 3342
- Ridge Height (Ft.) 27
- Main Floor (Sq. Ft.): 3342 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 262 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 1306 Sq.Ft.
- Garage: 3 Bay Yes

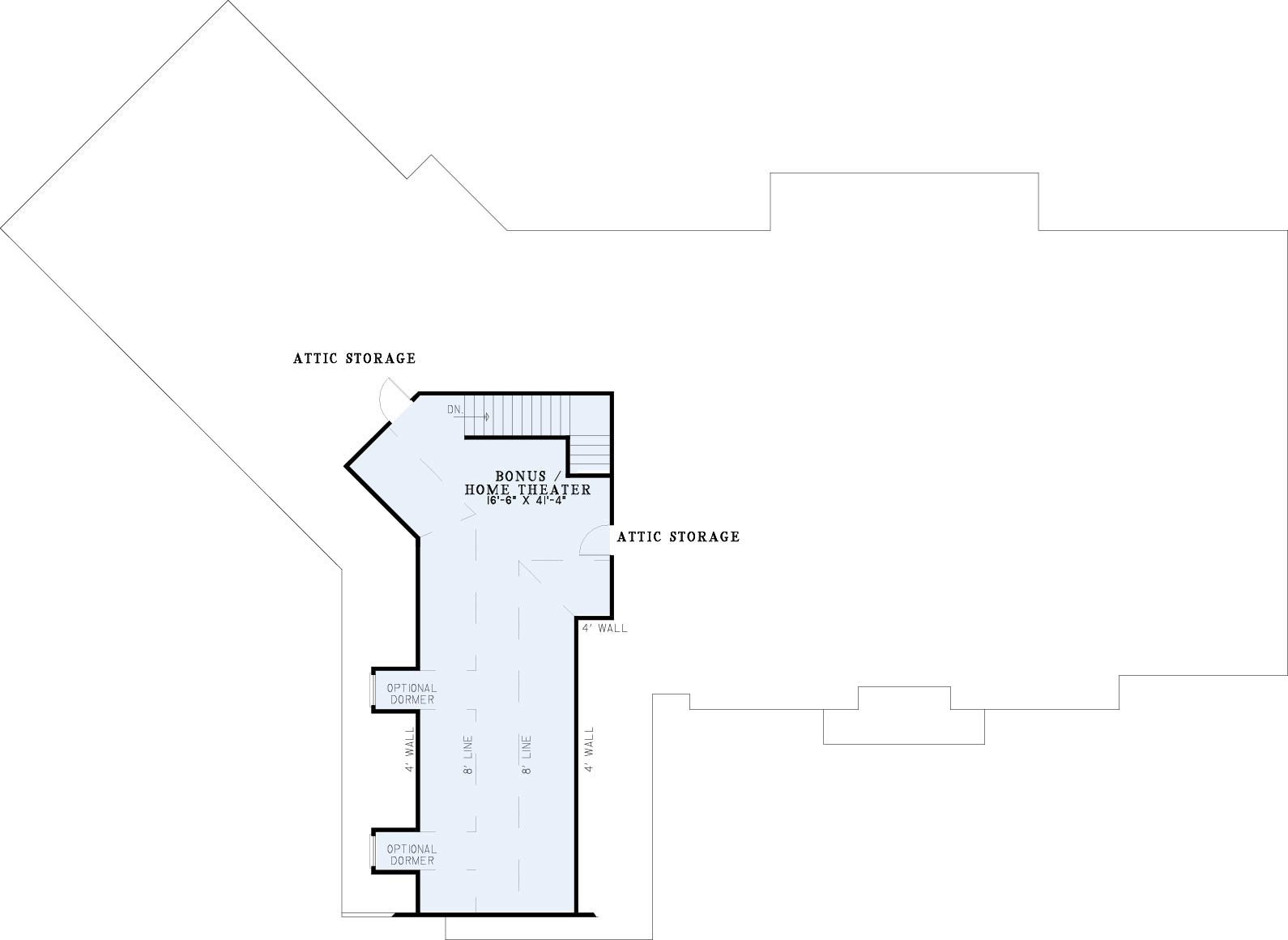

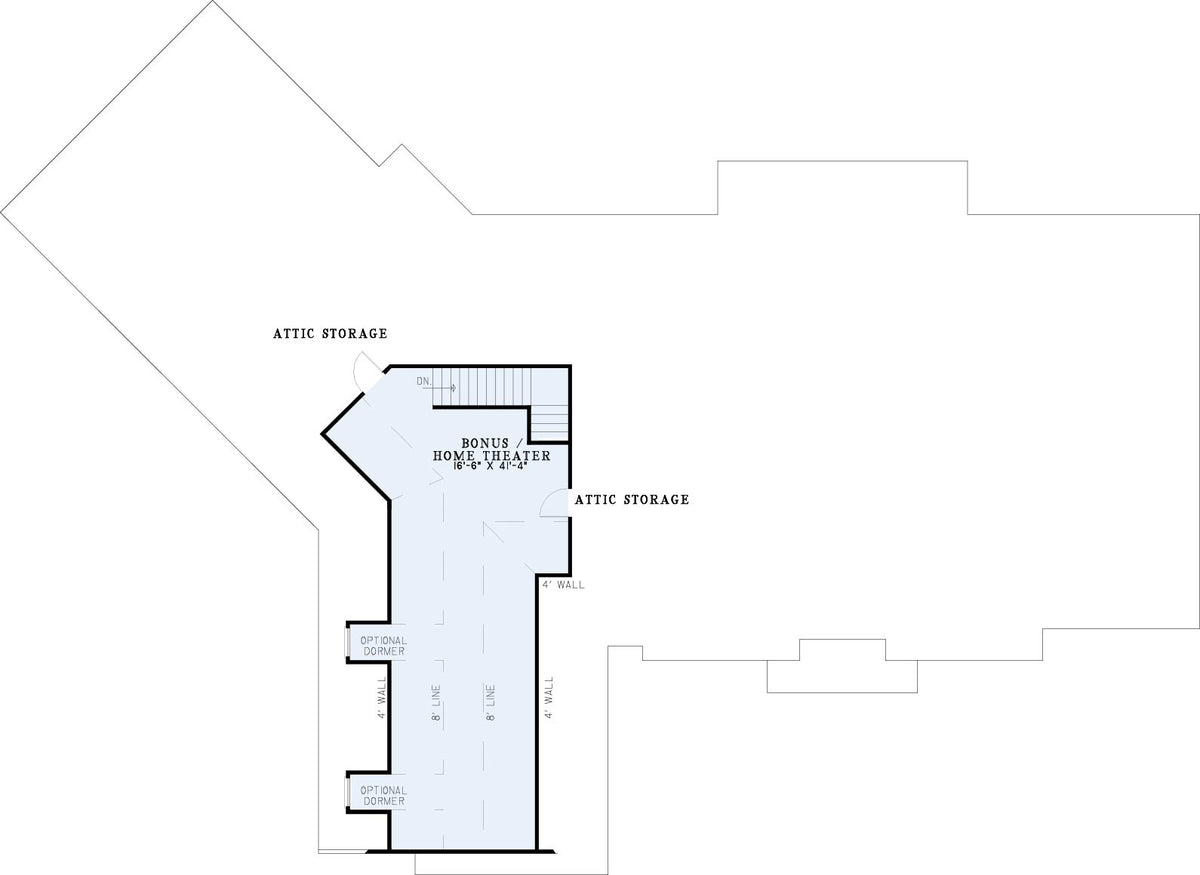

- Bonus (Sq.Ft): 713 Sq.Ft.
- Garage/Carport Type:Side Load and Angled Side Load and Angled
- Bedrooms: 3
- Carport: N/A
- Full Baths: 4
- Roof Pitch: 10:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 81
- Width (Ft): 112
- Depth (In.) 8
- Width (In.) N/A
- Total Sq. Ft. 5623 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room
- Butler's Pantry
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Home Office/Study
- Home Theater
- In-Law Suite Private Guest
- Main Floor Master
- Mudroom
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
