Floor Plan #1
Description

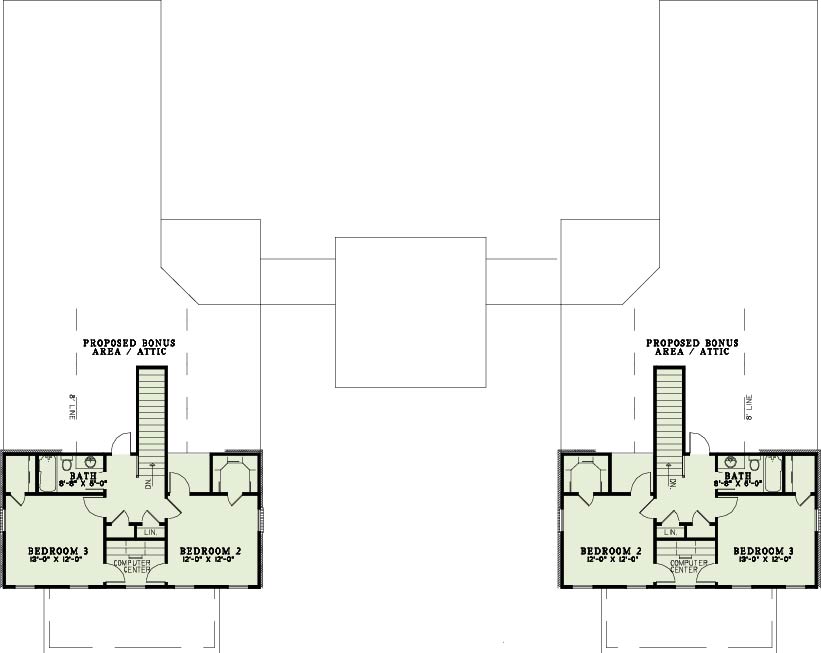

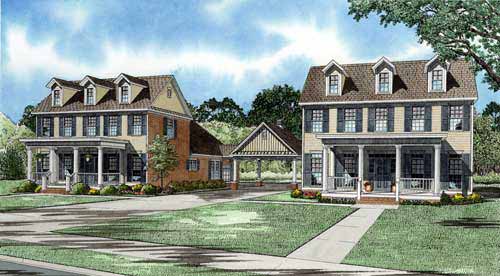

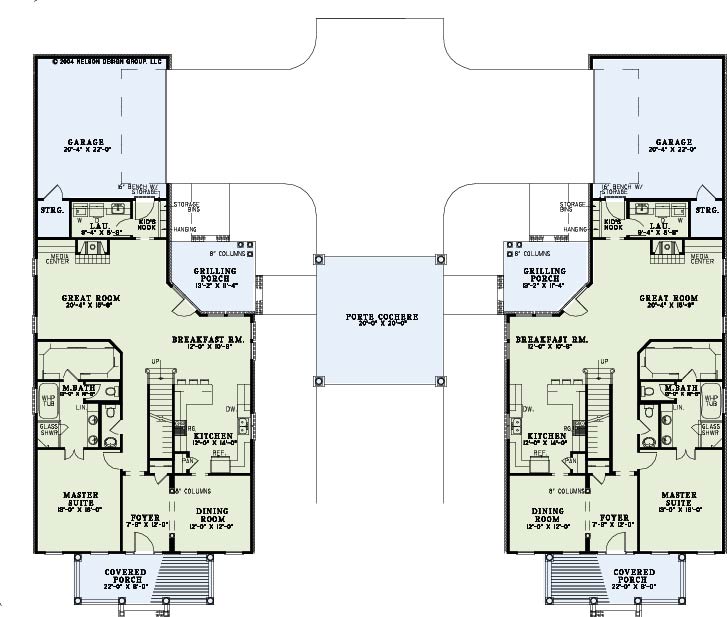

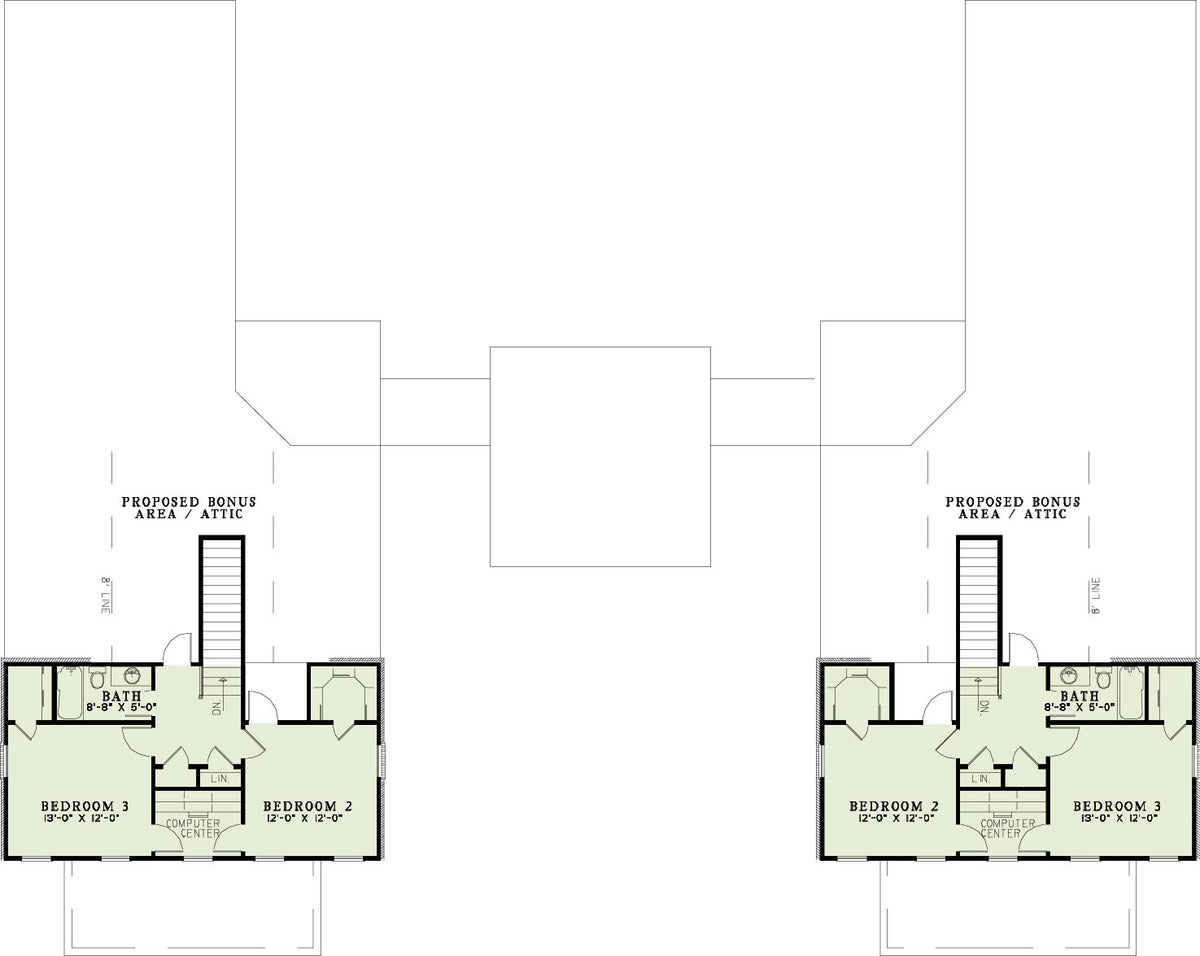

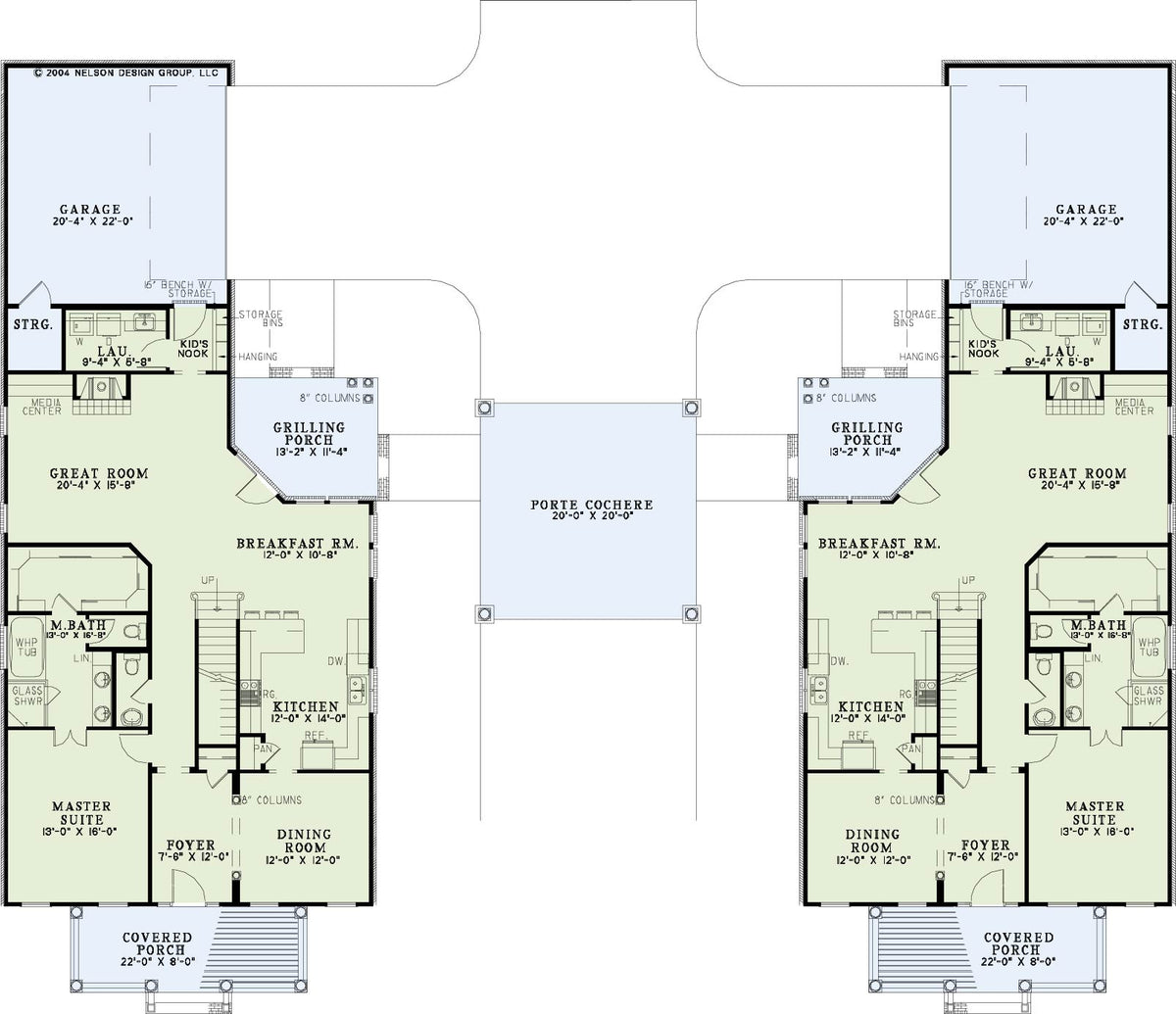

From the dormer windows to the columns on the covered front porch, your eyes are drawn to the exquisite exterior details of this dual family plan from Nelson Design Group. The Porte Cochere acts as a unifying feature and adds even more visual interest. Inside the mirror image floor plans the masterful use of space allows open airy rooms with 9-foot ceilings on the first floor. The master suite’s bath includes a double vanity, glass shower and whirlpool bath. Other features include a great room fireplace and media center. Good times are waiting outdoors on the grilling porch. Upstairs highlights included a bath and two bedrooms with a computer center in between that offers convenience.
Home Specifications
- Total Living Space: 2221
- Ridge Height (Ft.) 29
- Main Floor (Sq. Ft.): 1648 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): 573 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 370 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 503 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Side Load and Porte-Cochere Side Load and Porte-Cochere
- Bedrooms: 3
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 12:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 86
- Width (Ft): 108
- Depth (In.) 2
- Width (In.) 4
- Total Sq. Ft. 3094 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Jack & Jill Bathroom
- Main Floor Master
- Mudroom
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Porte-Cochere
- Split Bedroom Design
- Walk-in Closet
