Description
Charming House Plans — House Plan NDG 188 “Maple Street” If you're seeking house plans that combine traditional charm, efficient use of space, and modern amenities, House Plan NDG 188 “Maple Street” is an excellent choice. This two-story design offers 1,251 sq. ft. of living space, featuring 3 bedrooms, 2 full baths, and 1 half... Read full description Show less
Charming House Plans — House Plan NDG 188 “Maple Street”
If you're seeking house plans that combine traditional charm, efficient use of space, and modern amenities, House Plan NDG 188 “Maple Street” is an excellent choice. This two-story design offers 1,251 sq. ft. of living space, featuring 3 bedrooms, 2 full baths, and 1 half bath, along with a 1-bay front-load garage.
Key Features & Highlights
- Traditional curb appeal: A welcoming front porch invites guests into a cozy and functional layout.
- Open-concept living: The main floor includes a spacious great room, perfect for family gatherings and relaxation.
- Functional kitchen and dining: The kitchen features a breakfast bar and is adjacent to a formal dining room, facilitating easy meal preparation and entertaining.

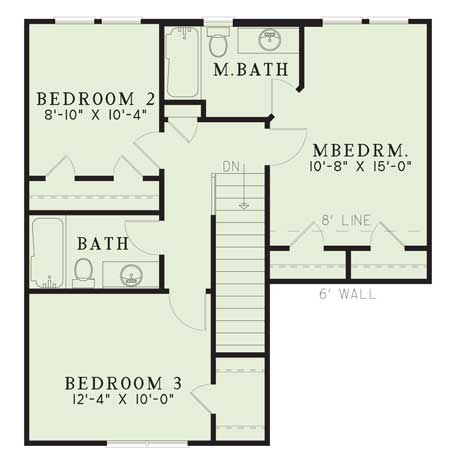

- Private upstairs bedrooms: The sleeping quarters are located on the upper level, providing privacy and separation from the main living areas.
- Outdoor living space: A grilling porch extends the living area outdoors, ideal for cooking and dining al fresco.

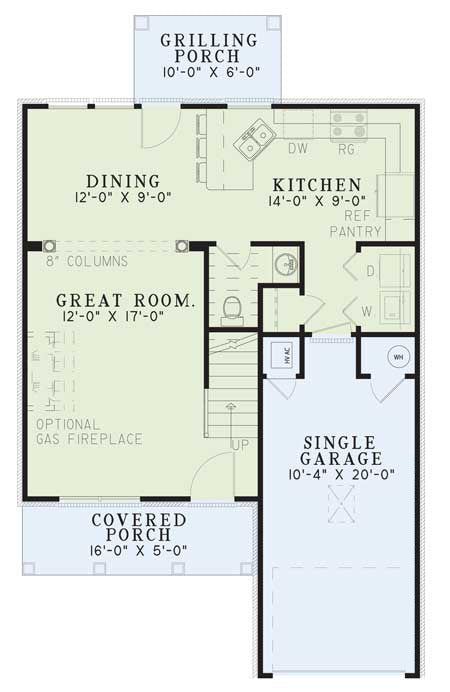

Floor Plan #1
Key Features
- Covered Front Porch
- Covered Rear Porch
- Economic Structure
- Formal Dining Room
- Great Room
- Grilling Porch
- Narrow Lot House Plans
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Walk-in Closet
Plan Collections
Plan Styles
- Country Home House Plans
- Low Country House Plans
- Southern House Plans
- Traditional House Plans
House Plan 188 Maple Street, Traditional House Plan
House Plan:NDG 188
$1,000.00
/
Shipping calculated at checkout.
Want to customize this plan?
Work directly with our in-house design team.
Questions or prefer to order by phone? (870) 931-5777
Home Specifications
- Total Living Space: 1251
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: 1 Bay Yes
- Garage/Carport Type: Front Load
- Garage (Sq. Ft.): 251 Sq.Ft.
- Carport: No
- Stories: 2.0
- Main Floor (Sq. Ft.): 609 Sq.Ft
- Upper Floor (Sq. Ft.): 642 Sq.Ft.
- Lower Floor (Sq. Ft.): N/A
- Bonus (Sq.Ft): N/A
- Lower Bonus (Sq. Ft.): N/A
- Porch (Sq. Ft.): 140 Sq.Ft.
- Roof Pitch: 8:12
- Porch Roof Pitch: 5:12
- Ridge Height (Ft.) 27
- Ridge Height (In.) 10
- Wall Construction: 2x4
- Main Ceiling Height: 8
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Vaulted Ceiling: No
- Customizable: Yes
- Width (Ft): 27
- Width (In.) N/A
- Depth (Ft): 45
- Depth (In.) N/A
- Total Sq. Ft. 1642 Sq.Ft.
