Floor Plan #1
Description
House Plan MEN 5392 – Ascott Manor European Home
Discover the refined elegance of this European‑style residence, Ascott Manor, which combines classic architectural appeal with functional, modern living spaces. With generous living space and thoughtful amenities, this home offers both luxury and practicality.
Highlights & Living Spaces

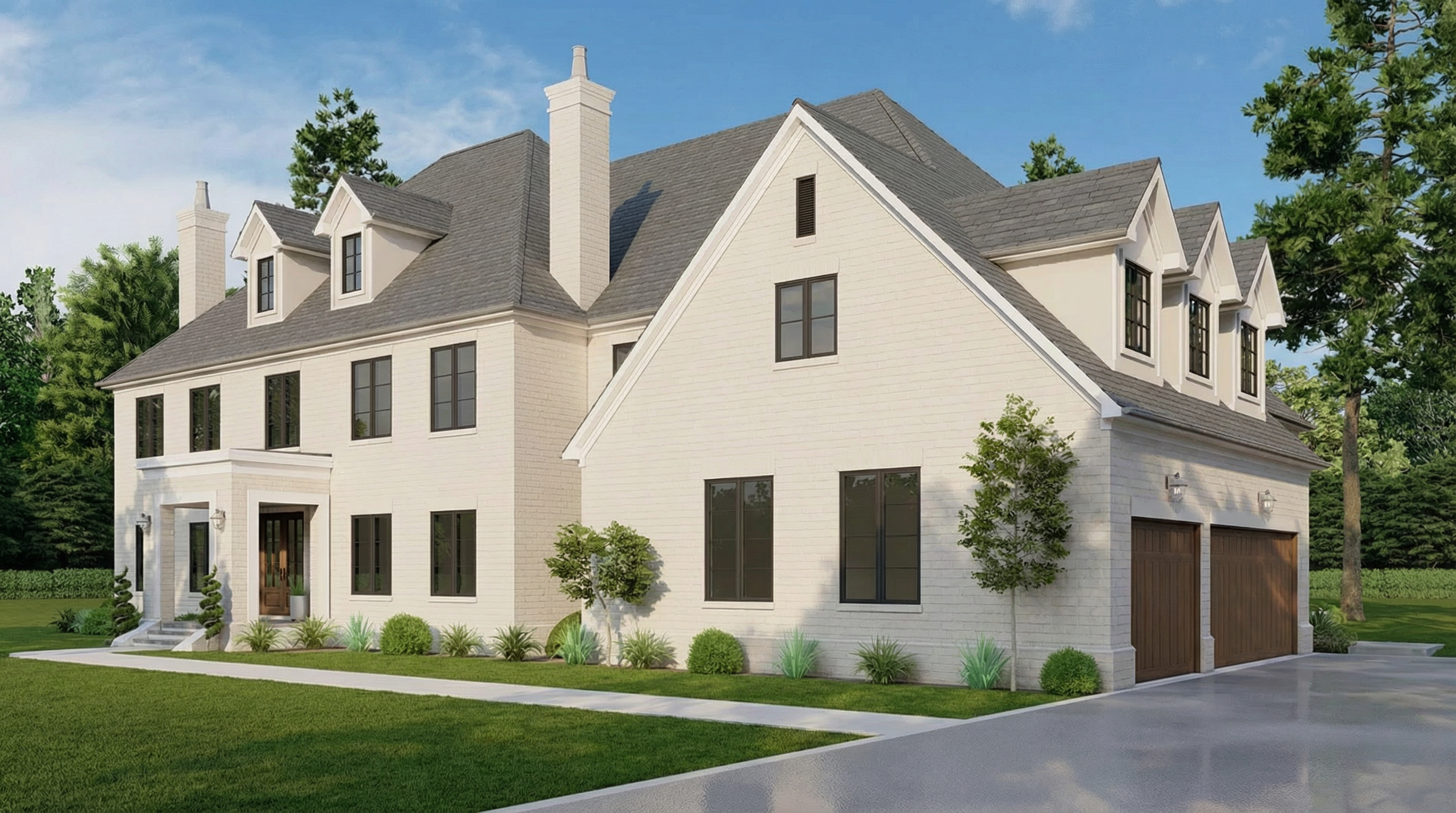

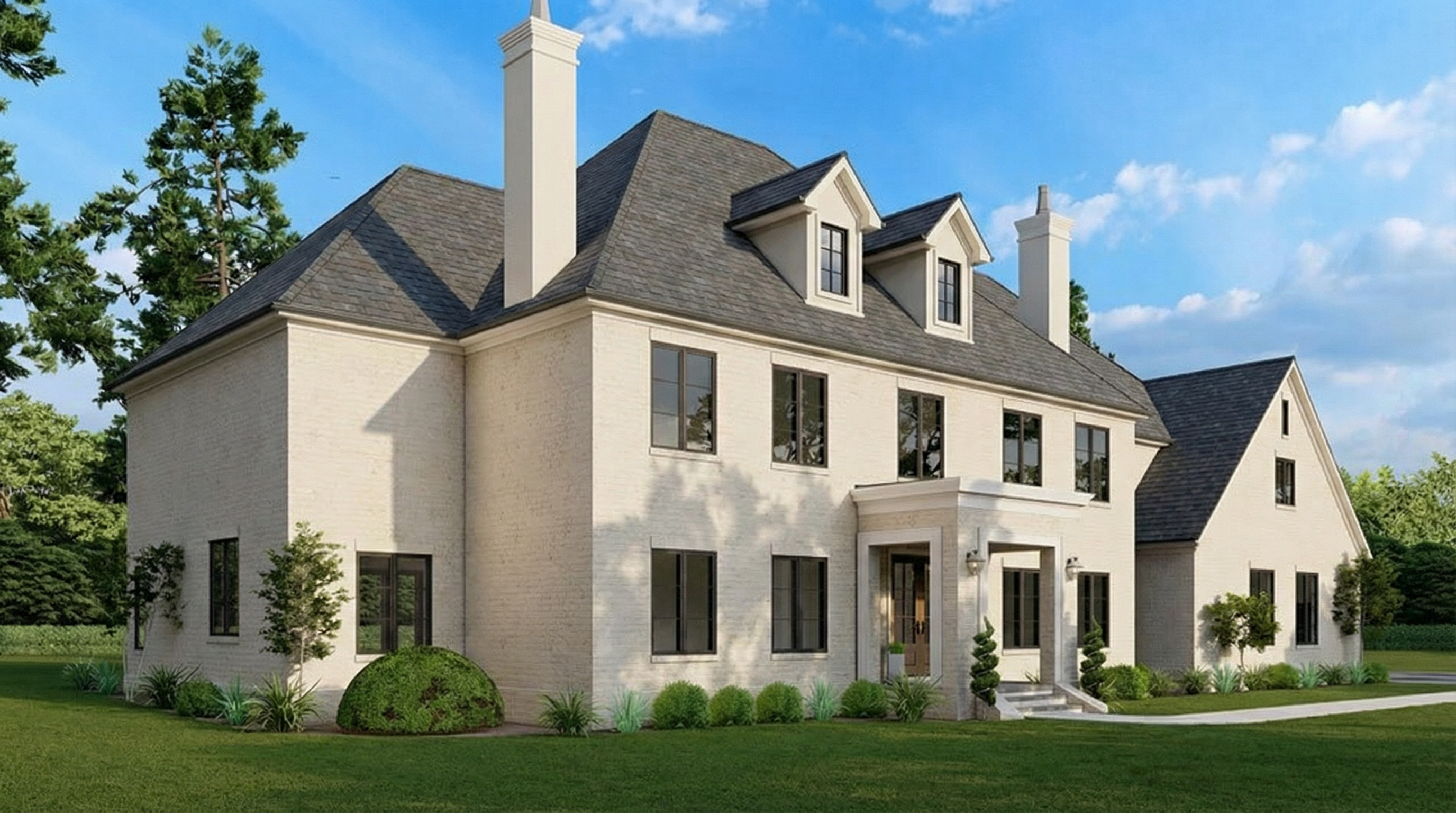

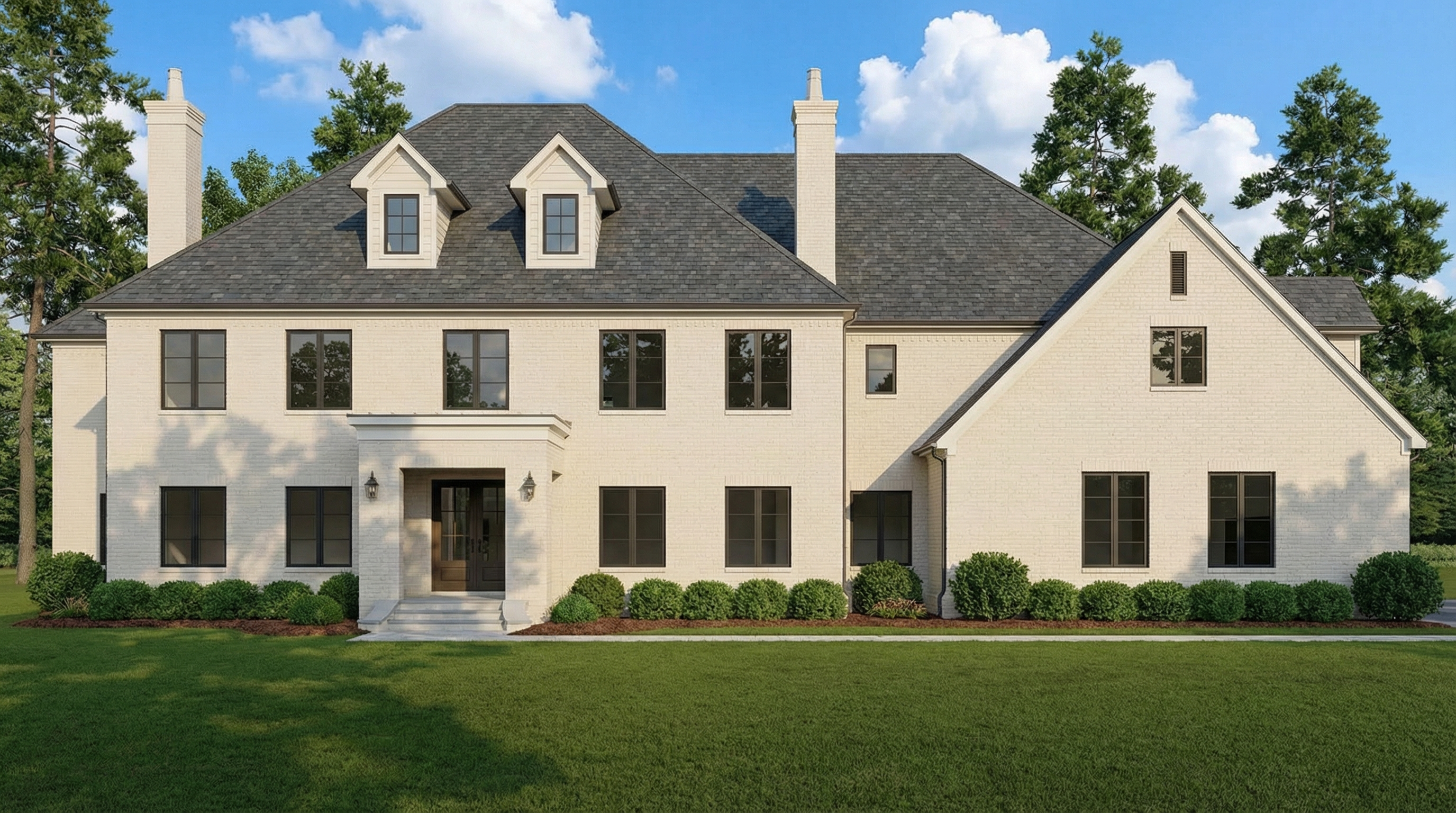

- Elegant Exterior: The home presents crisp lines and refined material accents in a stately façade that fits both upscale suburban lots and scenic settings.
- Grand Entry & Main Level: A welcoming entry leads into spacious common areas that include a great room and open kitchen. These zones promote connection and flexibility—ideal for both entertaining and comfortable everyday living.
- Kitchen & Dining: The kitchen features an island for casual dining or meal prep, flowing seamlessly into the eating area and nearby dining room, offering flexibility for formal gatherings or relaxed family meals.
- Private Retreats & Bedroom Wings: Bedrooms are thoughtfully placed to offer privacy and comfort. The master suite serves as a serene retreat with generous closet space and a high‑end bath, while secondary bedrooms include access to full baths and ample storage.

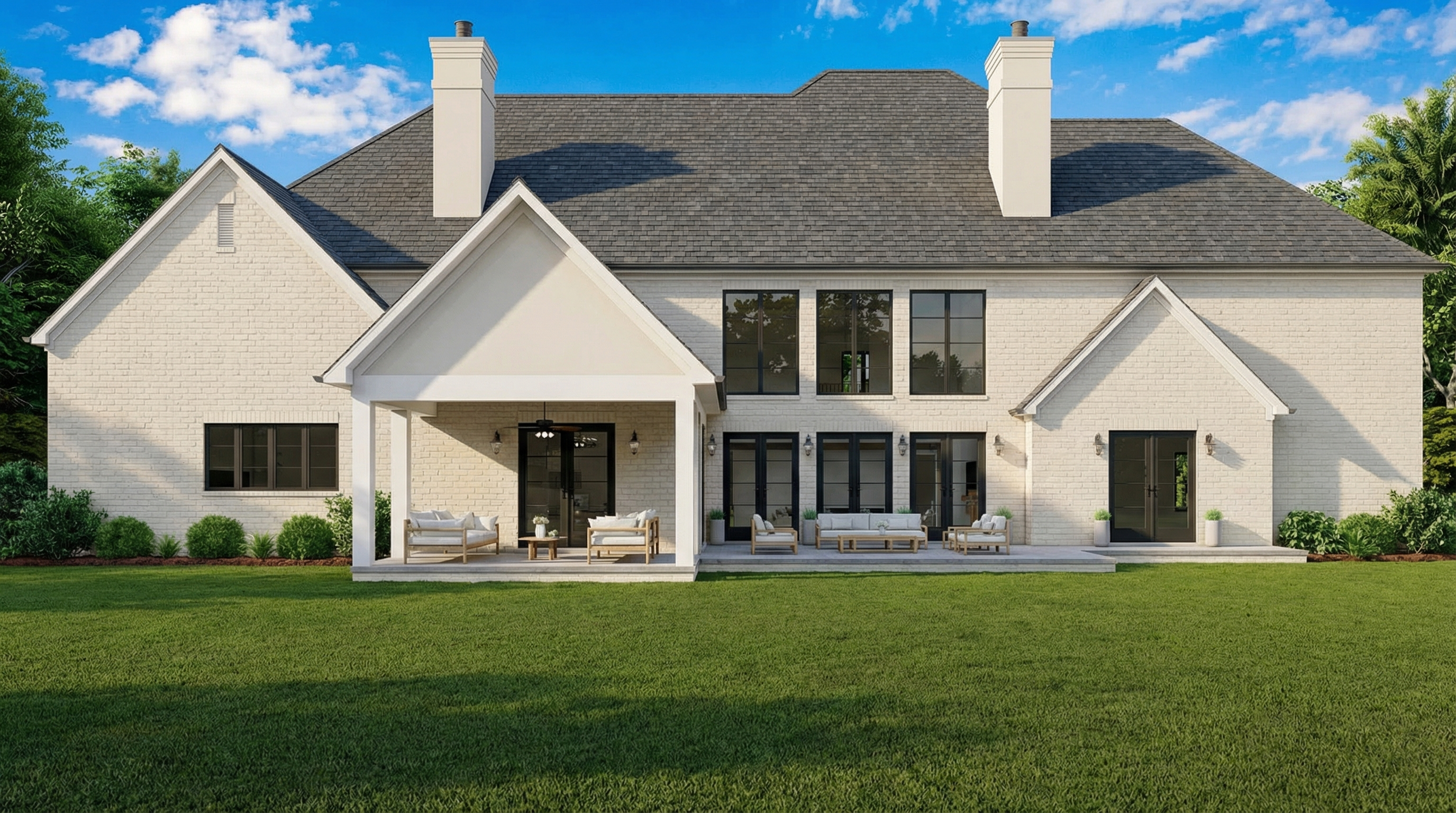

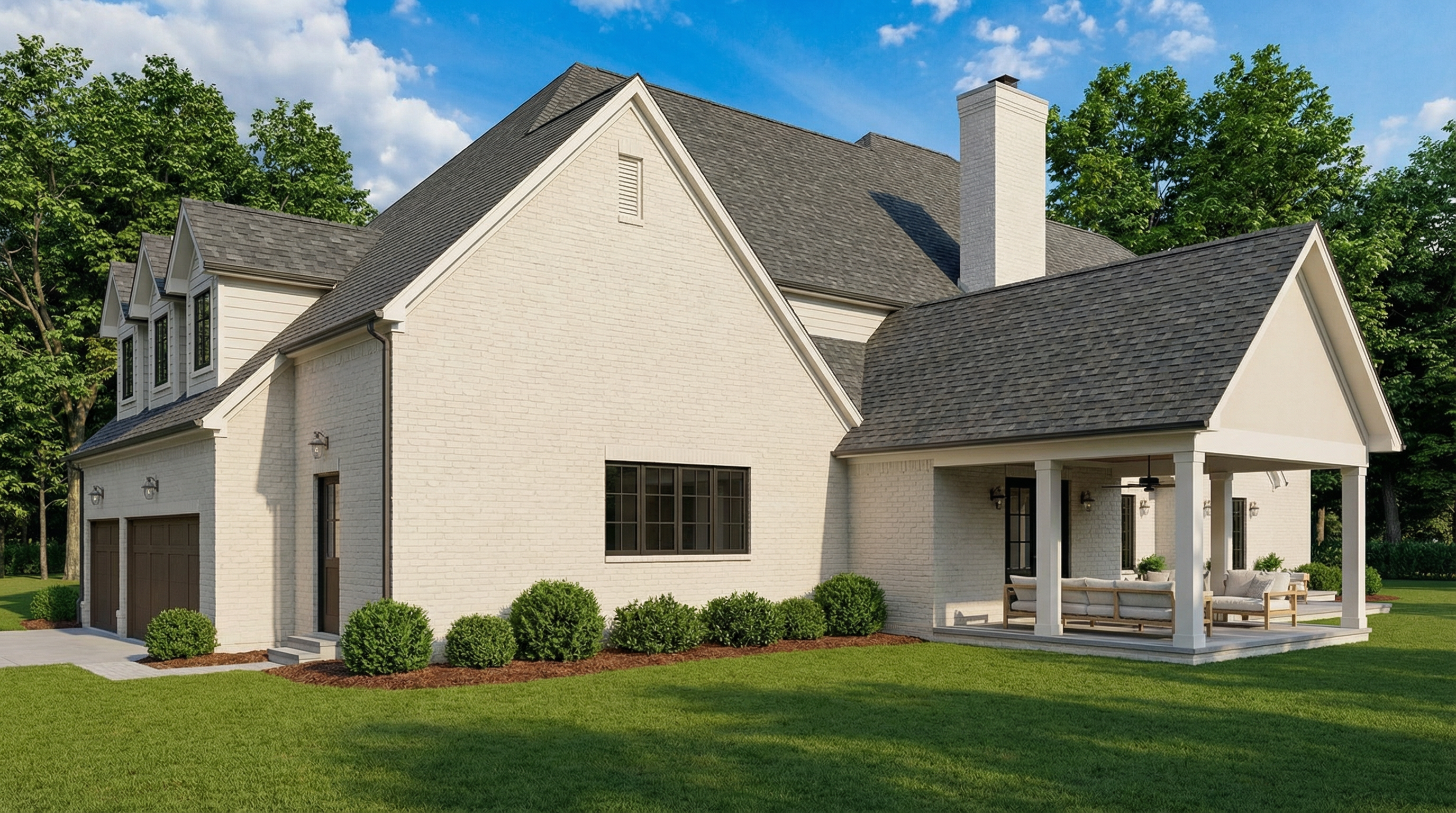

- Additional Flex Spaces: The design also incorporates rooms that can serve as a home office, media lounge, or hobby space. Outdoor living is enhanced with a covered porch, ideal for relaxing and entertaining outdoors.
Home Specifications
- Total Living Space: 4823
- Ridge Height (Ft.) 43
- Main Floor (Sq. Ft.): 3611 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): 1212 Sq.Ft.
- Main Ceiling Height: 10
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 9
- Porch (Sq. Ft.): 385 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 940 Sq.Ft.

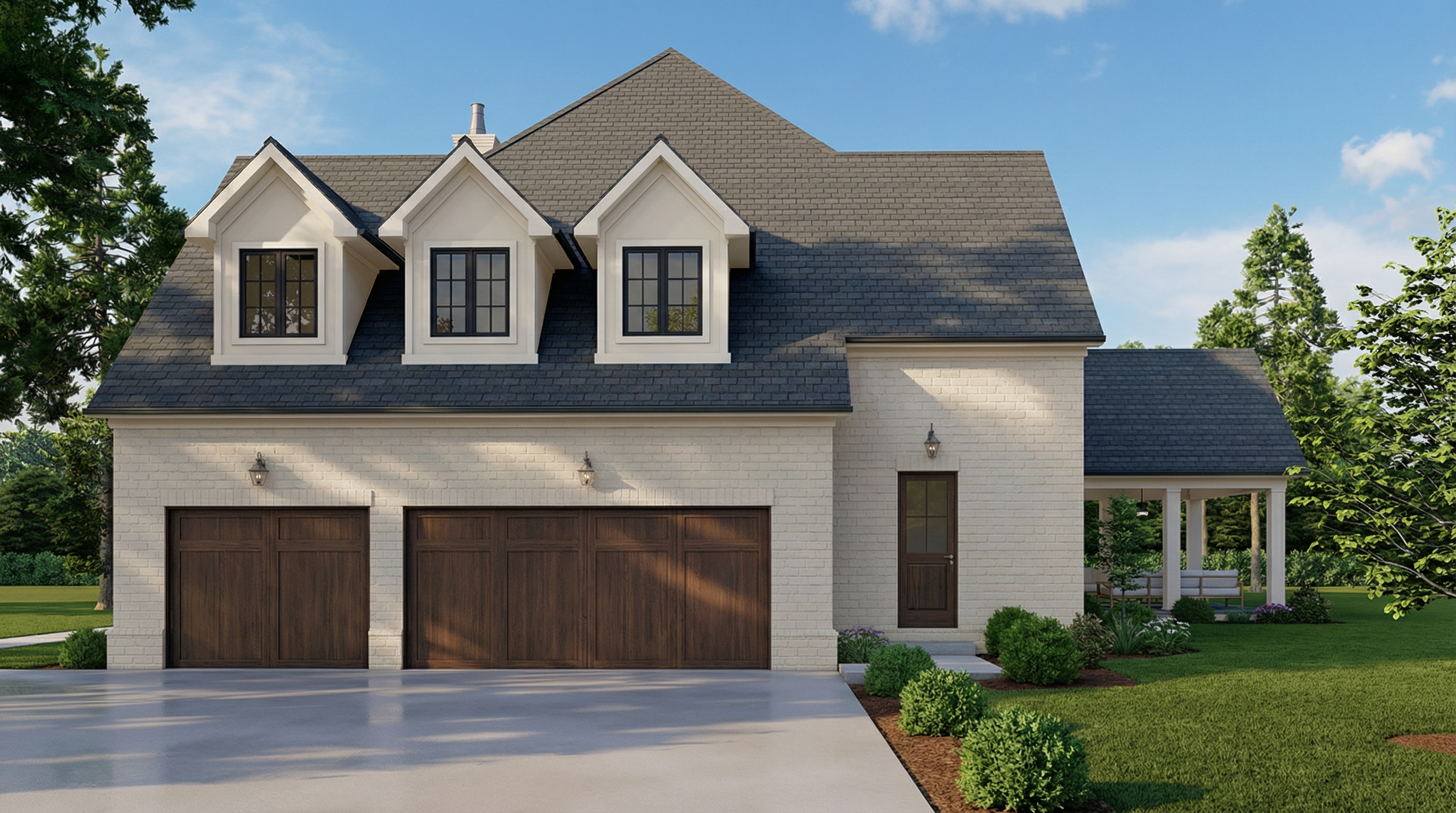

- Garage: 3 Bay Yes
- Bonus (Sq.Ft): 876 Sq.Ft.
- Garage/Carport Type:Side Load Side Load
- Bedrooms: 4
- Carport: No
- Full Baths: 4
- Roof Pitch: 12:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 2.0
- Wall Construction: 2x6
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: Yes
- Depth (Ft): 77
- Width (Ft): 104
- Depth (In.) 2
- Width (In.) 8
- Total Sq. Ft. 7024 Sq.Ft.
- Customizable: Yes
Key Features
- Balcony
- Bonus Room Over Garage
- Covered Front Porch
- Covered Rear Porch
- Decks Patios Balconies
- Formal Dining Room
- Great Room
- Home Office/Study
- Kitchen Island
- Main Floor Master
- Mudroom
- Open Floor Plan House Plans
- Outdoor Living Space
- Peninsula/Eating Bar
- Saferoom
- Split Bedroom Design
- Two Story
- Walk-in Closet
- Walk-in-Pantry
