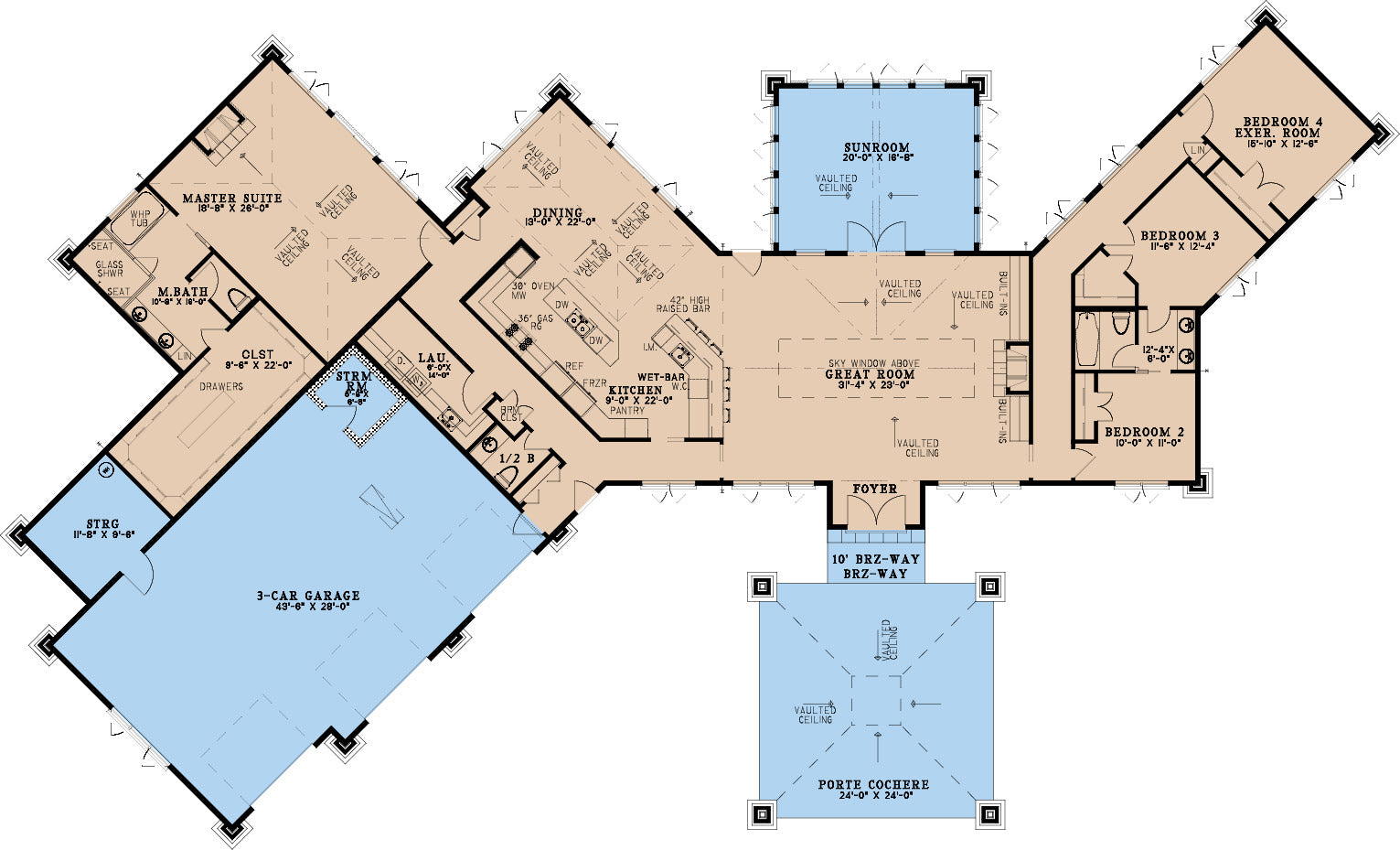

Floor Plans
Floor Plan #1
Description
Waters Edge Retreat – House Plan MEN 5406
The Waters Edge Retreat House Plan MEN 5406 by Nelson Design Group is a luxurious single-story Mediterranean-style home designed for comfort, style, and entertaining. With approximately 3,638 square feet of living space, this home features 3 bedrooms, 2 full baths, 1 half bath, and a 3-bay angled garage, making it an outstanding choice among today’s most sought-after house plans.
Elegant Design and Open Layout

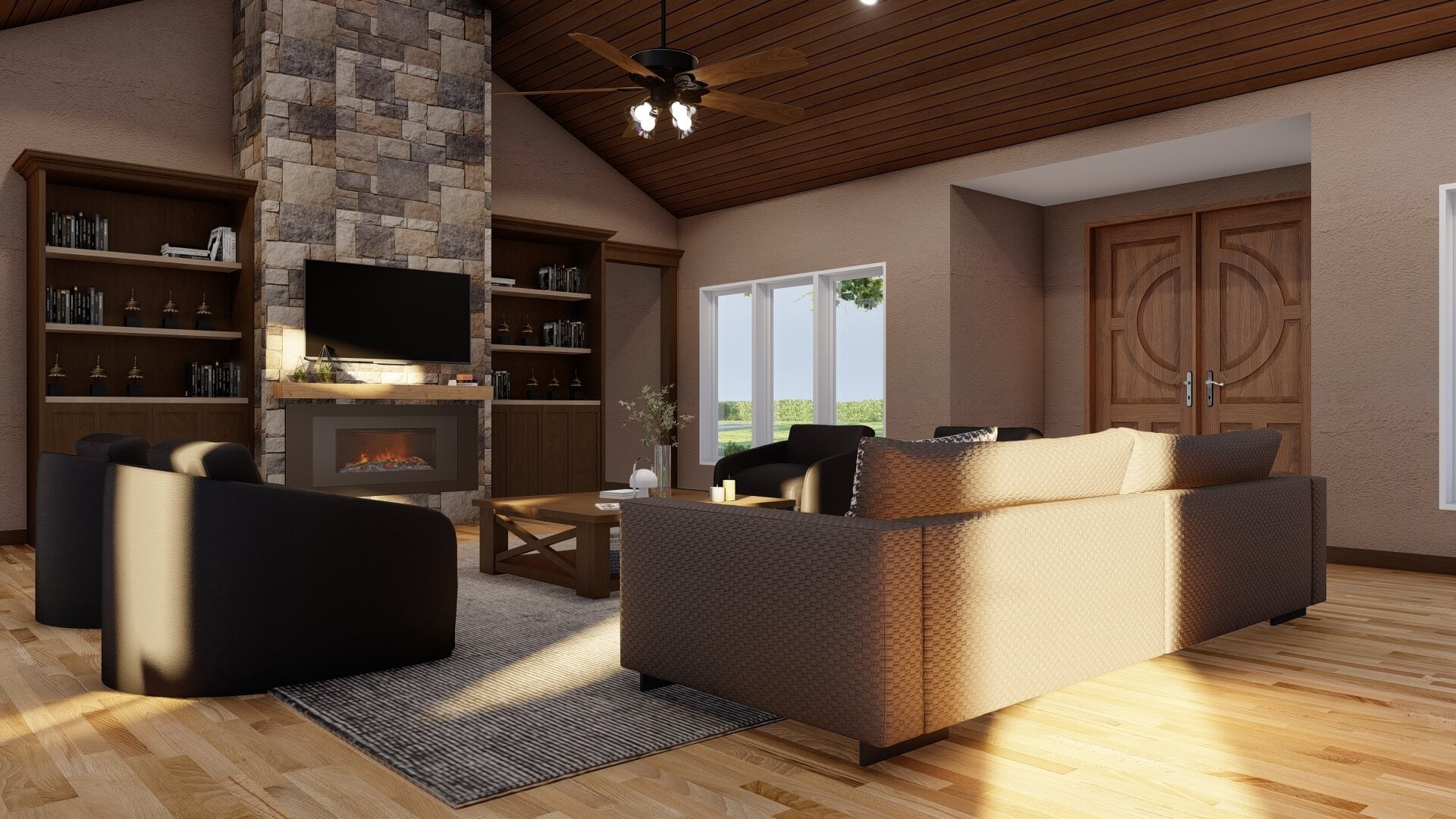

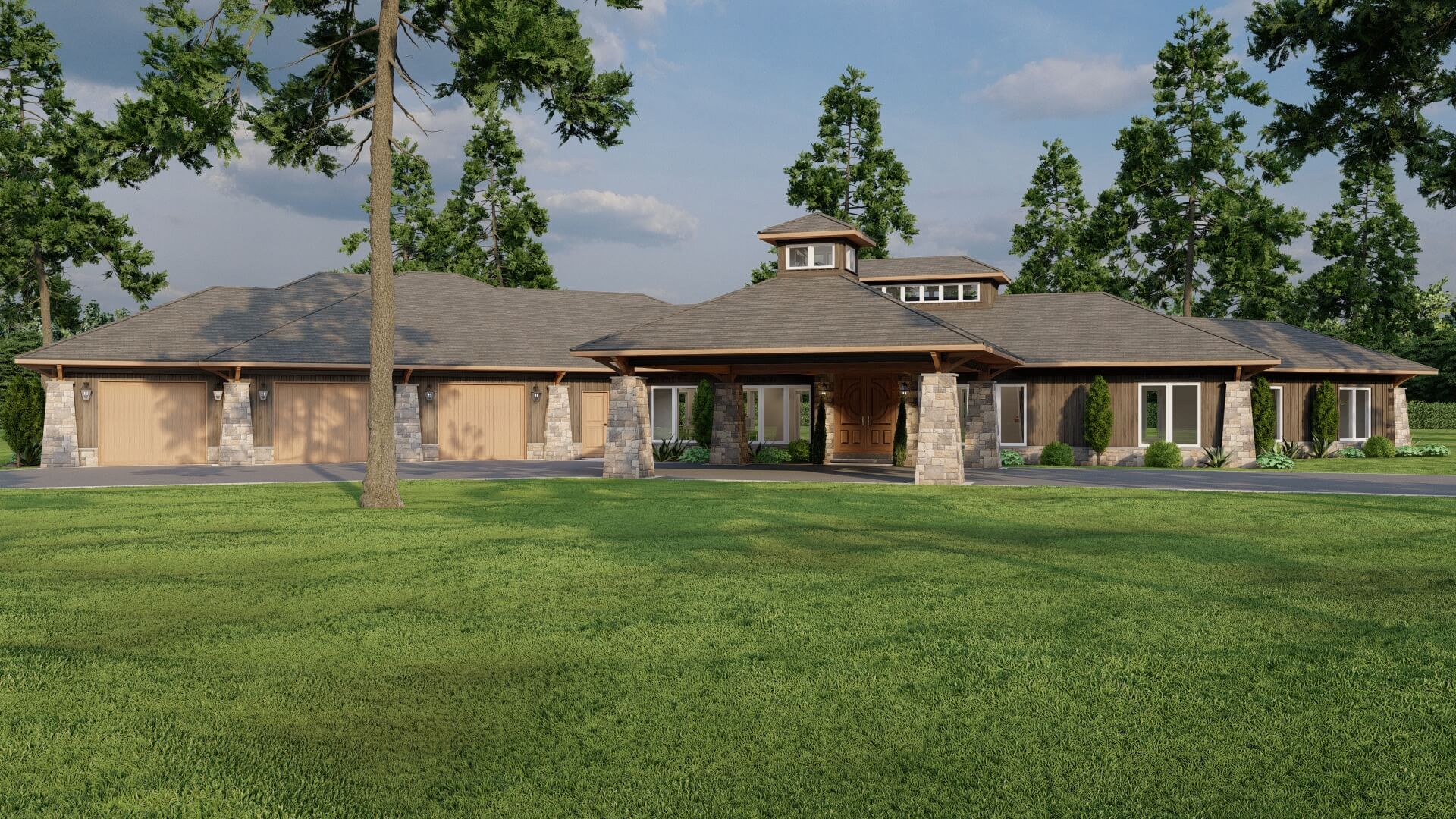

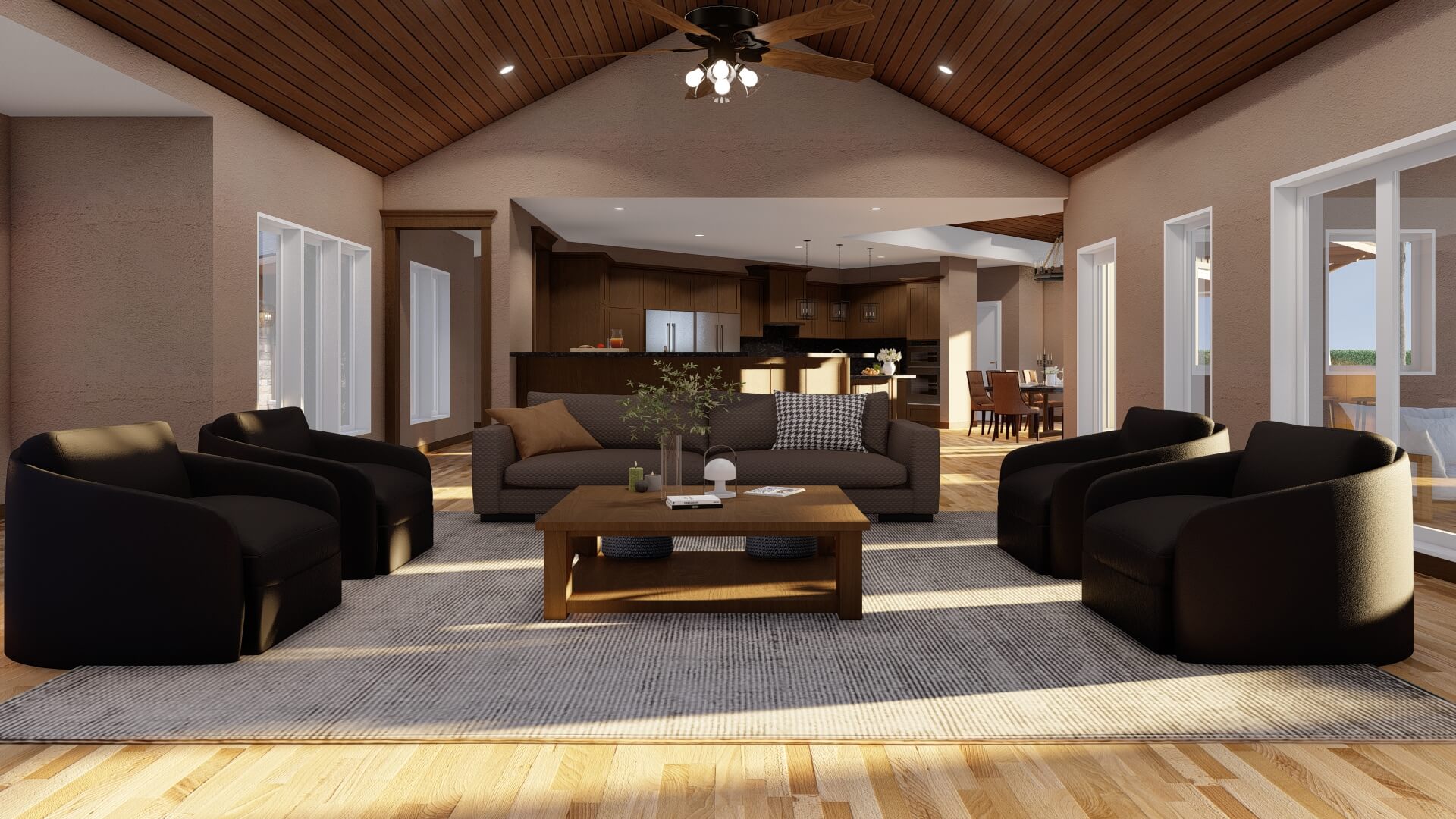

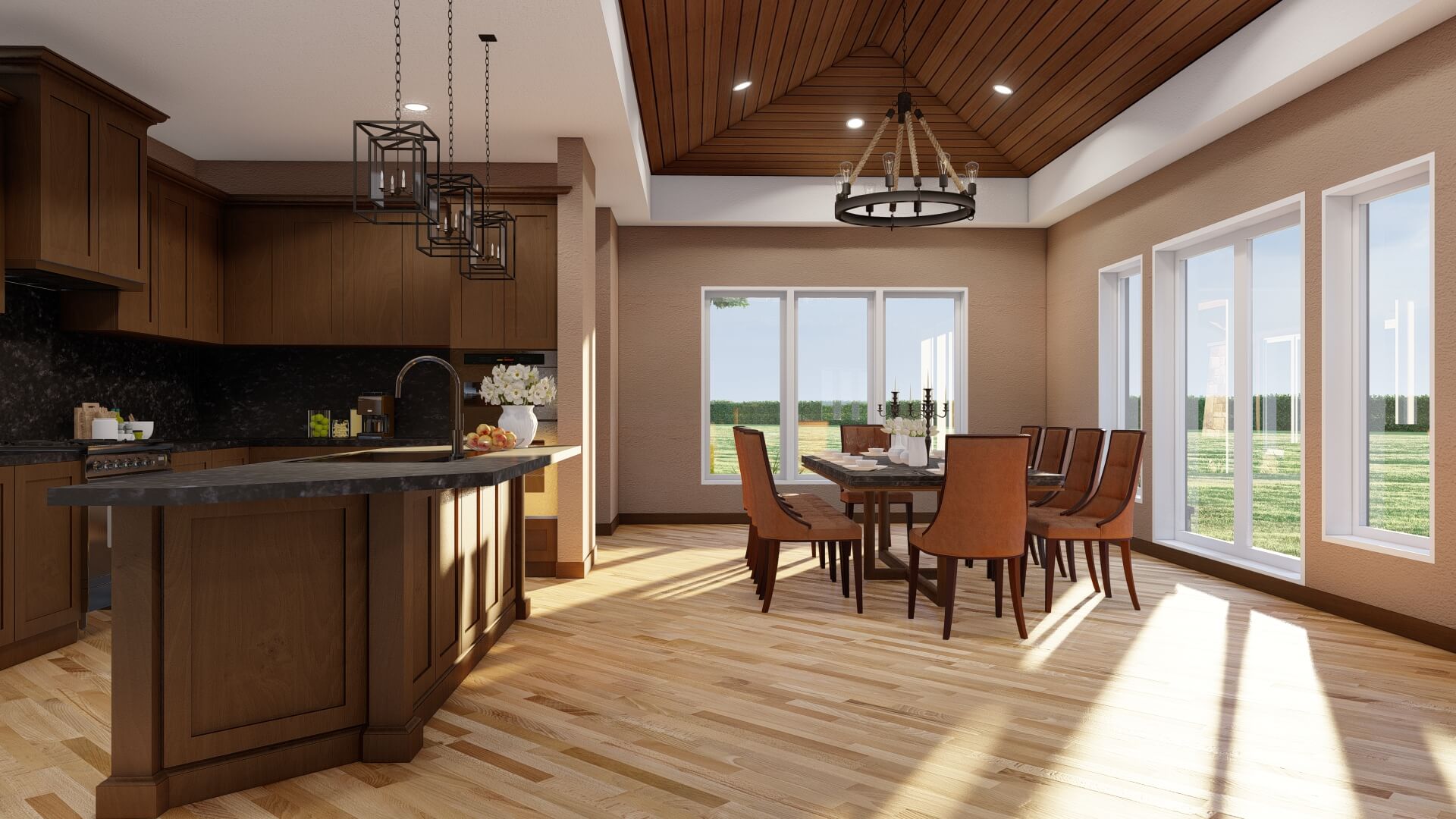

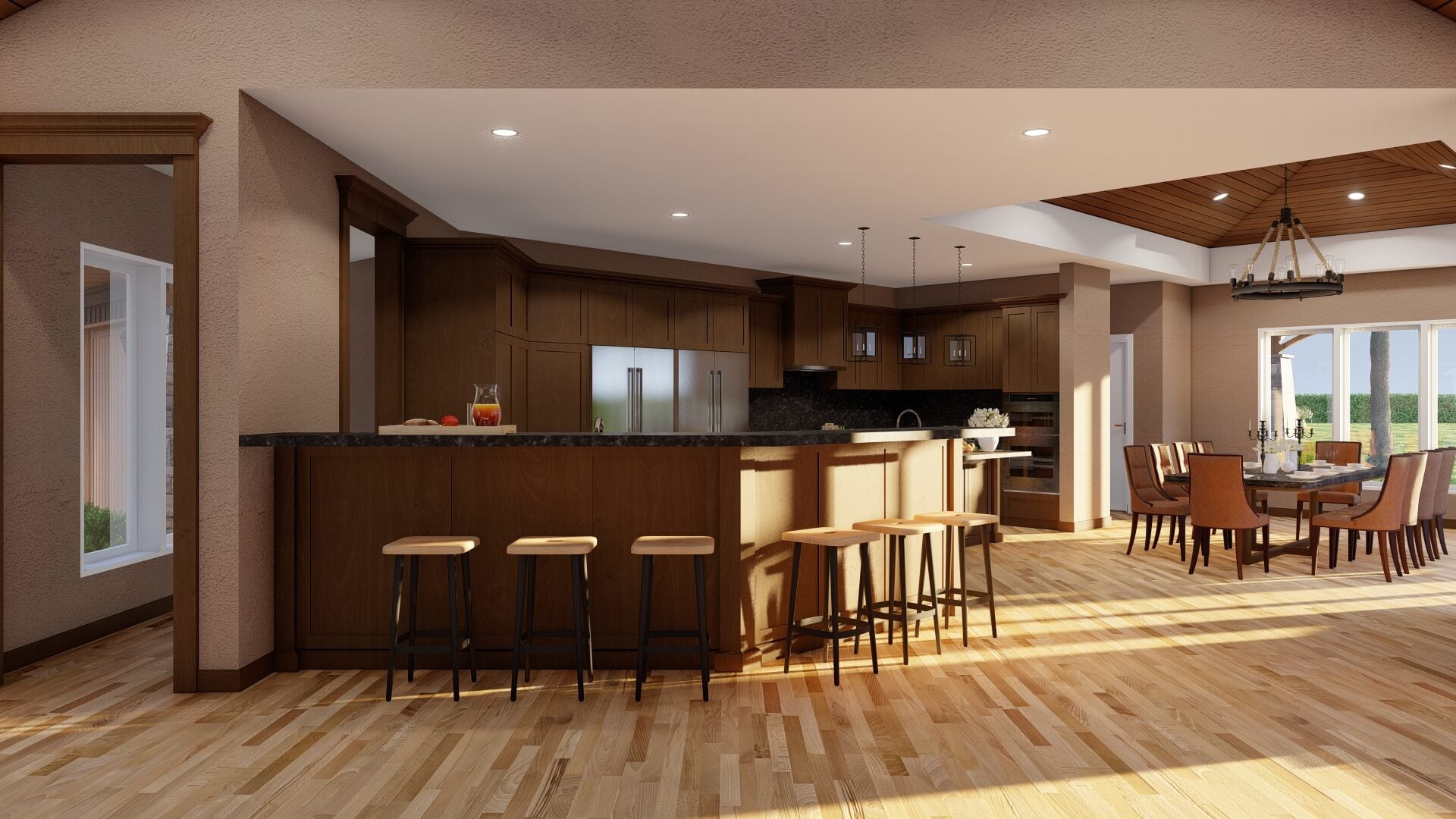

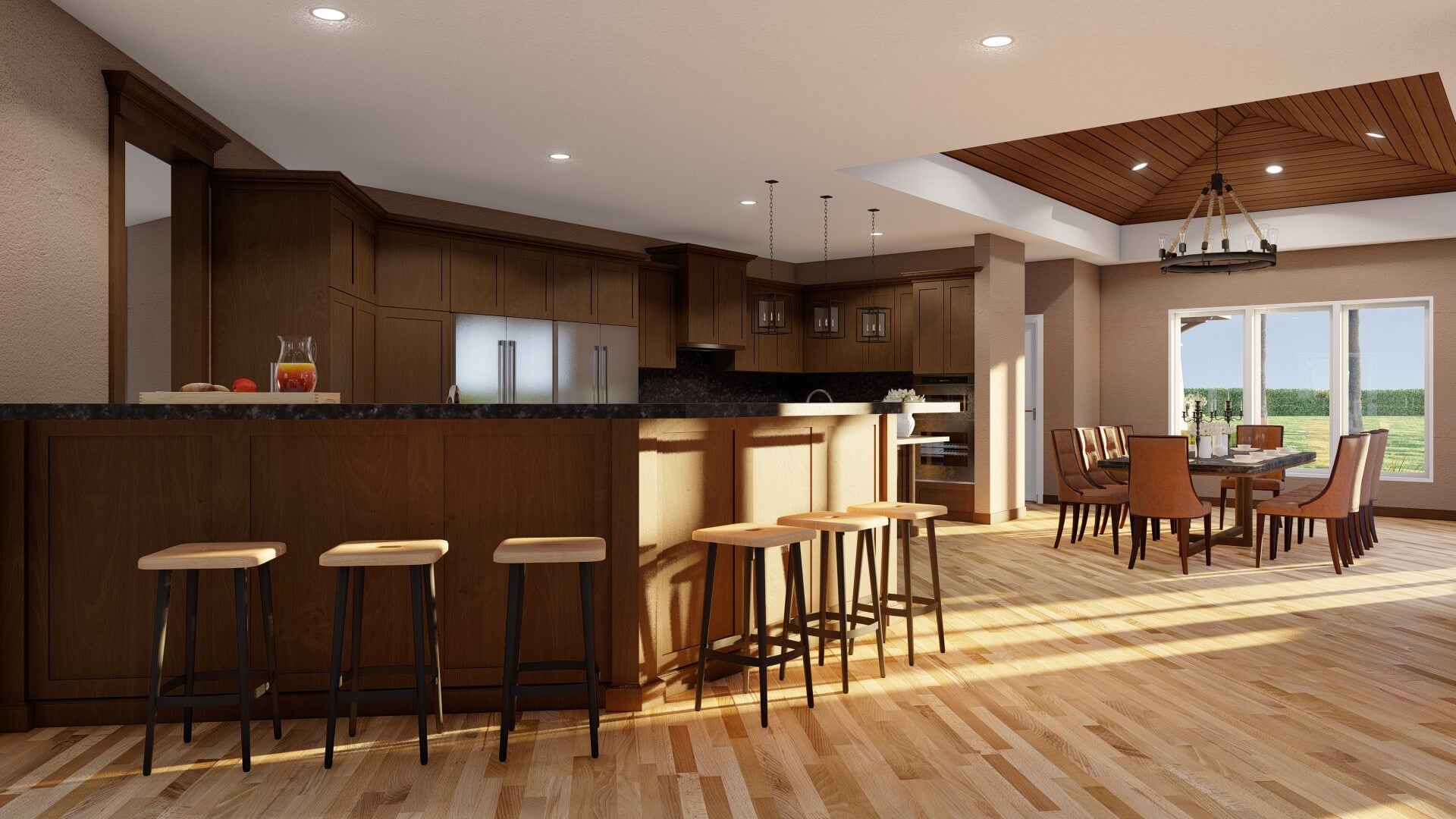

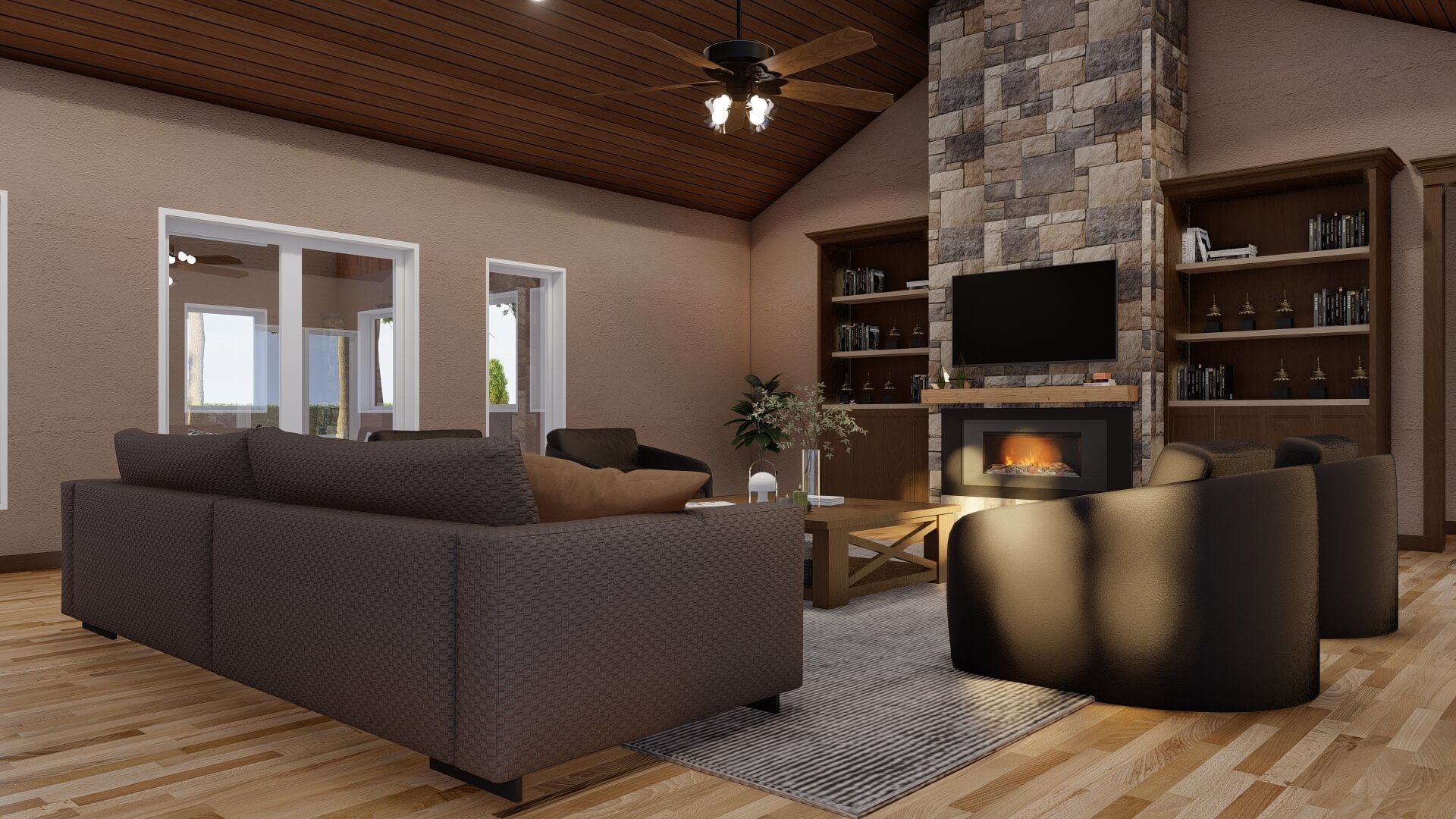

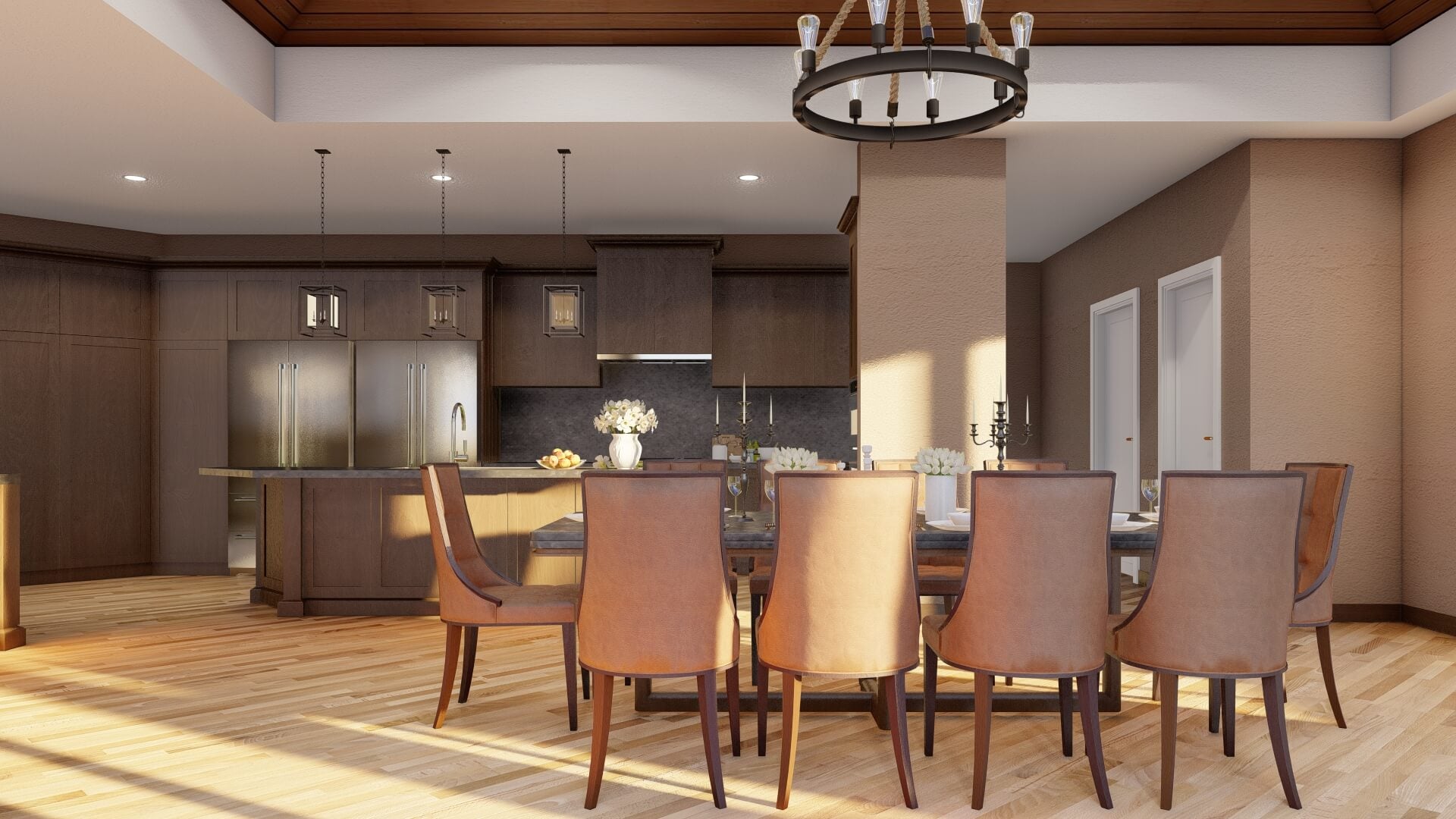

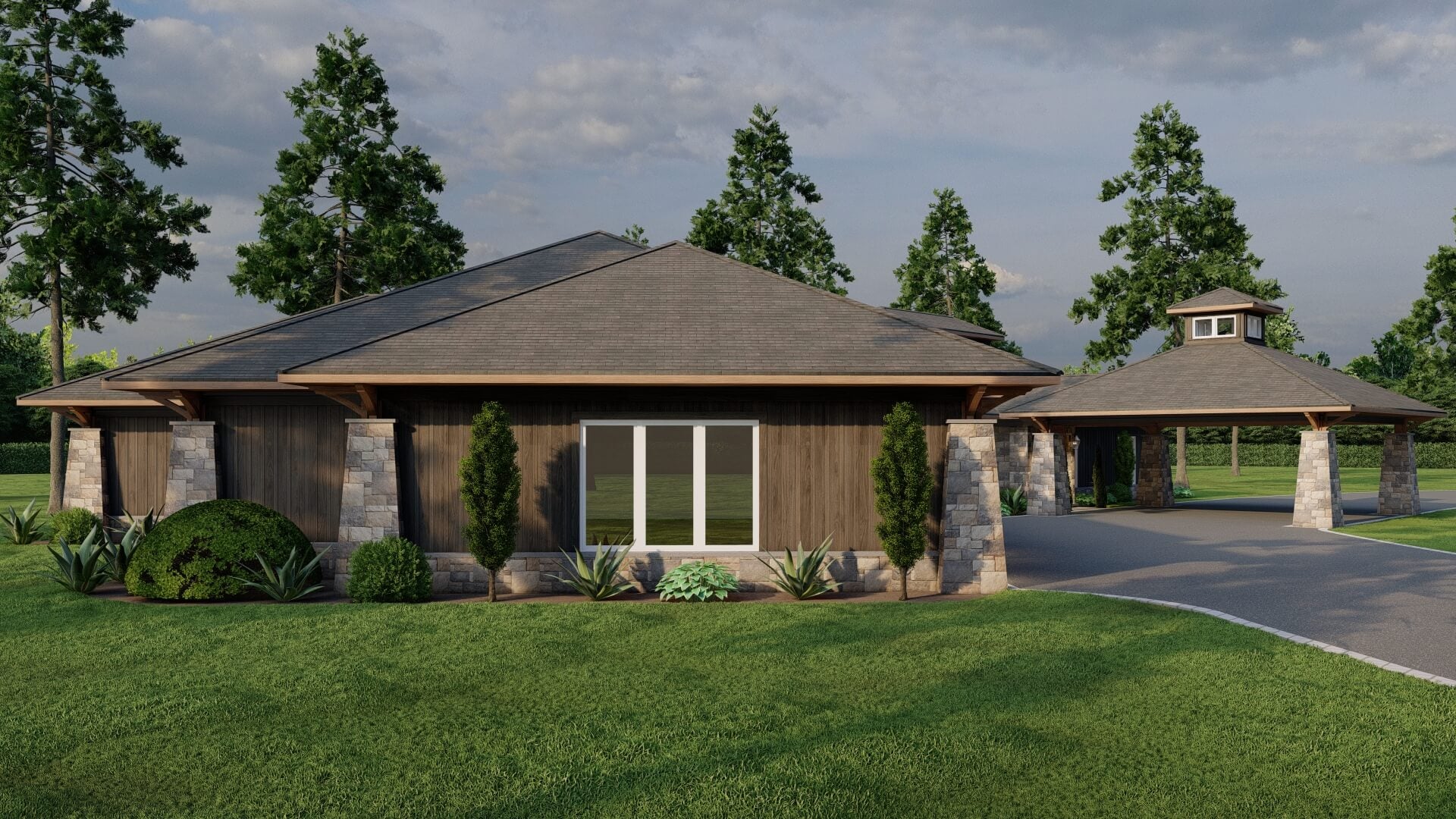

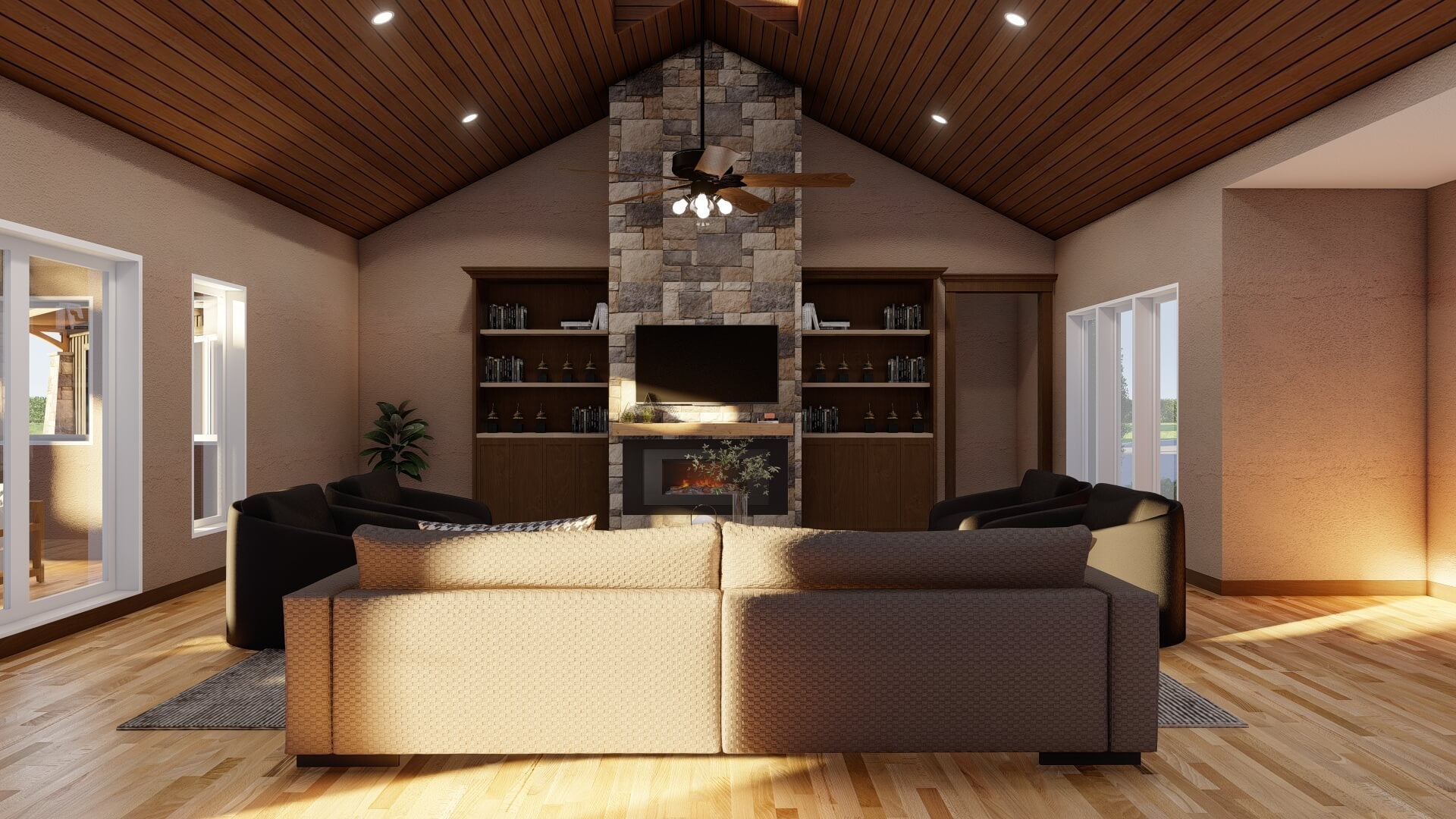

A dramatic porte-cochère greets visitors at the front entry, while inside, a vaulted great room with a sky window fills the space with natural light. The expansive kitchen includes a large center island, ample counter space, and a wet bar with seating, ideal for hosting gatherings. A vaulted sunroom provides a peaceful retreat and a bright connection to the outdoors.

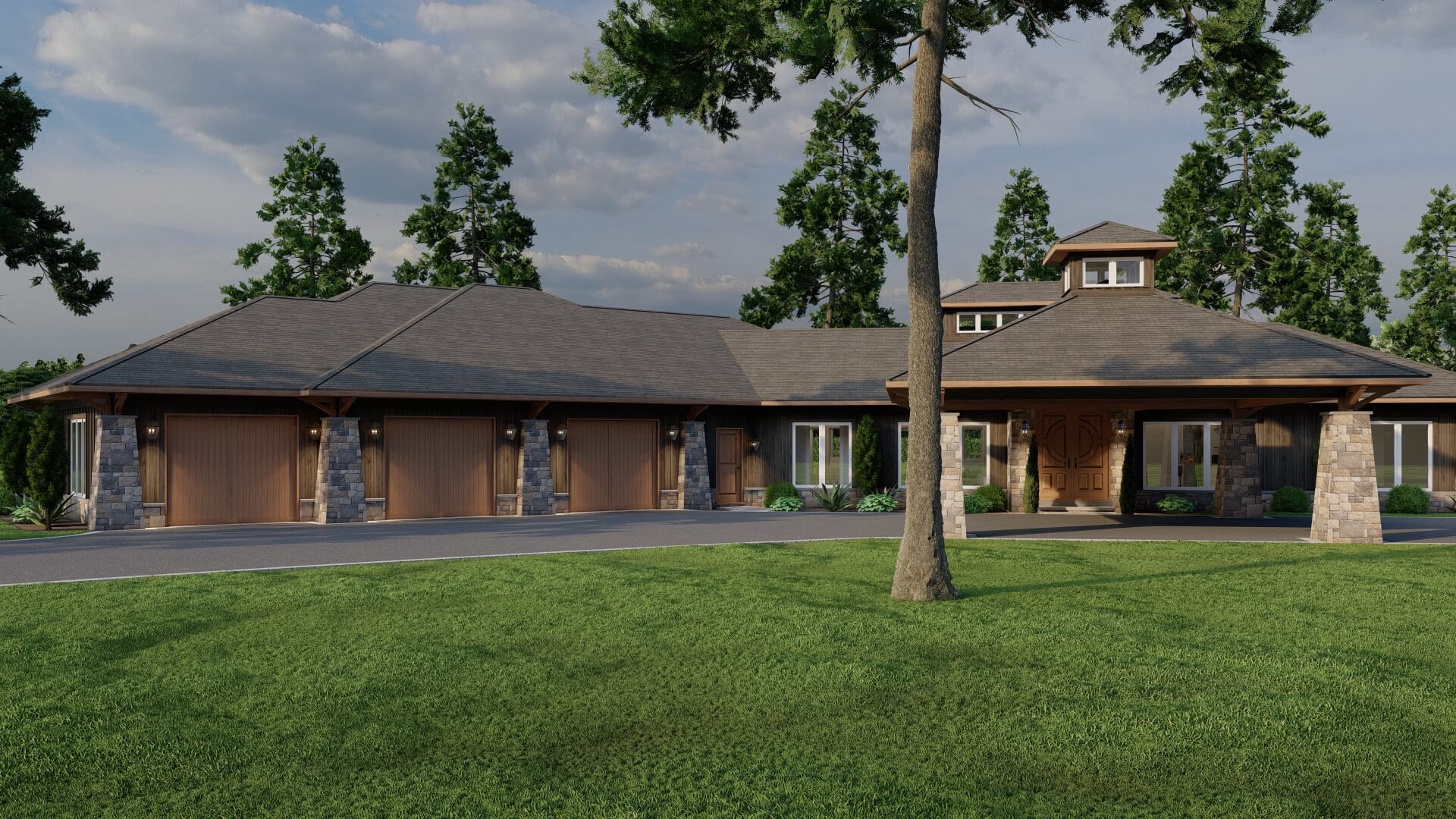

The master suite offers a private sanctuary with vaulted ceilings, a cozy fireplace, a spa-style bath with dual vanities, a glass walk-in shower, a whirlpool tub, and a spacious walk-in closet. Bedrooms 2 and 3 share a Jack & Jill bath, while an additional flexible bedroom can serve as a gym, home office, or guest suite. The 3-car garage includes extra storage space and a storm safe-room for peace of mind.
Key Features
- Open-concept layout: Seamlessly connects the great room, kitchen, dining, and sunroom for modern living and entertaining.
- Luxurious amenities: Fireplace, wet bar, spa-style master bath, and vaulted ceilings elevate the home’s appeal.
- One-level living: Ensures accessibility while maintaining a grand and spacious feel.
- Wide-lot friendly: The home’s footprint suits large or waterfront lots, perfect for retreats or upscale residences.
- Customizable: Can be tailored to your lifestyle, lot, or design preferences.
Home Specifications
- Total Living Space: 3638
- Ridge Height (Ft.) 20
- Main Floor (Sq. Ft.): 3638 Sq.Ft
- Ridge Height (In.) 8
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): 416 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 1933 Sq.Ft.
- Garage: 3 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Angled and Porte-Cochere Angled and Porte-Cochere
- Bedrooms: 3
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 6:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x6
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: Yes
- Depth (Ft): 85
- Width (Ft): 141
- Depth (In.) N/A
- Width (In.) 4
- Total Sq. Ft. 5987 Sq.Ft.
- Customizable: N/A
Key Features
- Covered Front Porch
- Exercise Room
- Fireplace in Master
- Formal Dining Room
- Great Room
- Jack & Jill Bathroom
- Kitchen Island
- Main Floor Master
- Open Floor Plan House Plans
- Oversized Garage
- Peninsula/Eating Bar
- Porte-Cochere
- Saferoom
- Single Story
- Split Bedroom Design
- Sunroom
- Vaulted High Cathedral Ceiling
- Walk-in Closet
