Floor Plans

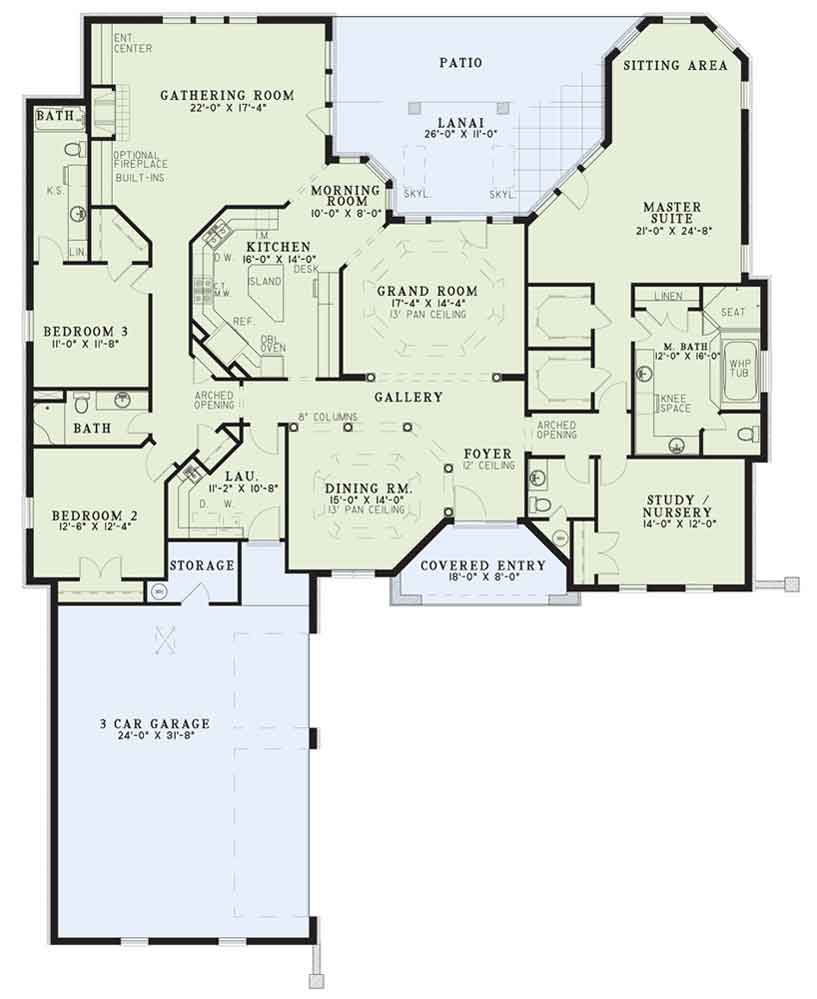

Floor Plan #1
Description
Note: 8-inch concrete wall construction and tile roofing; see NDG-112 for standard wood framing.
House Plan 553 – The Mansor: A Spacious Florida Retreat
Looking for a home that combines elegance with functionality? House Plan 553 – The Mansor offers 3,167 sq ft of thoughtfully designed space, featuring 4 bedrooms, 3.5 bathrooms, and a 3-car courtyard garage. Designed with Florida living in mind, this plan includes a spacious gathering room with a fireplace and a covered rear porch, perfect for enjoying the outdoors.
Key Features:
-
Open Floor Plan: The main living areas are accented with columns and pan ceilings, creating a welcoming atmosphere.
-
Split Bedroom Design: Each secondary bedroom has its own bath, providing privacy for all family members.
-
Luxurious Master Suite: The master suite includes twin walk-in closets, a large master bath, and an adjoining nursery or study.
Whether you're looking to build your dream home or seeking a vacation retreat, House Plan 553 – The Mansor offers a blend of style and practicality that enhances your property's value and functionality.
Home Specifications
- Total Living Space: 3167
- Ridge Height (Ft.) 24
- Main Floor (Sq. Ft.): 3167 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): 638 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 819 Sq.Ft.
- Garage: 3 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Court Yard Court Yard
- Bedrooms: 4
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 7:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: Concrete
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 88
- Width (Ft): 70
- Depth (In.) 6
- Width (In.) N/A
- Total Sq. Ft. 4624 Sq.Ft.
- Customizable: Yes
Key Features
- Arched Entry
- Covered Front Porch
- Covered Rear Porch
- Decks Patios Balconies
- Formal Dining Room
- Great Room
- Home Office/Study
- Kitchen Island
- Main Floor Master
- Open Floor Plan House Plans
- Outdoor Living Space
- Sitting Area
- Split Bedroom Design
- Vacation Golf Course
- Walk-in Closet
