House Plan 425 Cambridge Court, Multi-Family House Plan
House Plan:NDG 425
$1,550.00
/
Shipping calculated at checkout.
Or order by phone: (870) 931-5777

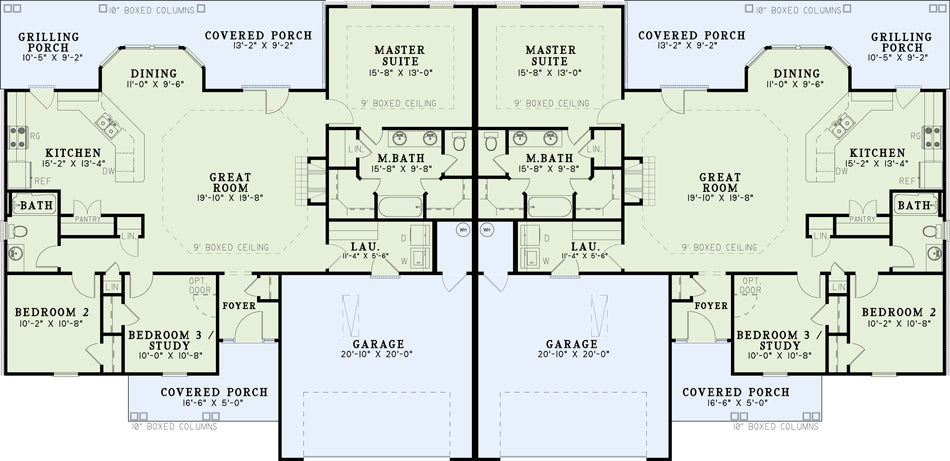

Floor Plans
Floor Plan #1
Description
The ultimate family home times two! This duplex offers the most luxurious family areas, which separates the master suite from the other bedrooms for privacy. The massive great room has a nine foot boxed ceiling, large fireplace, access to the rear-covered porch and opens to a large kitchen and dining area for the ultimate in entertaining options. One of the two front bedrooms will be conveniently suited for a study or home office, for that “work at home” mom or dad. And the best for last; a master bedroom suite with nine foot boxed ceiling and a master bath with all the amenities.
Entire duplex Main Level H/C SQ.FT is 3,060 Porch total SQ.FT is 760 Garage total SQ.FT is 918 Total SQ.FT is 4,738
Home Specifications
- Total Living Space: 1530
- Ridge Height (Ft.) 22
- Main Floor (Sq. Ft.): 1530 Sq.Ft
- Ridge Height (In.) 8
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 8
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: N/A
- Porch (Sq. Ft.): 380 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 459 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 3
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 49
- Width (Ft): 103
- Depth (In.) 10
- Width (In.) N/A
- Total Sq. Ft. 2369 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Main Floor Master
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
Plan Collections
- Multi-Family House Plans
Plan Styles
- Traditional House Plans
