House Plan 442 Carriage Hill, Multi-Family House Plan
House Plan:NDG 442
$1,650.00
/
Shipping calculated at checkout.
Or order by phone: (870) 931-5777

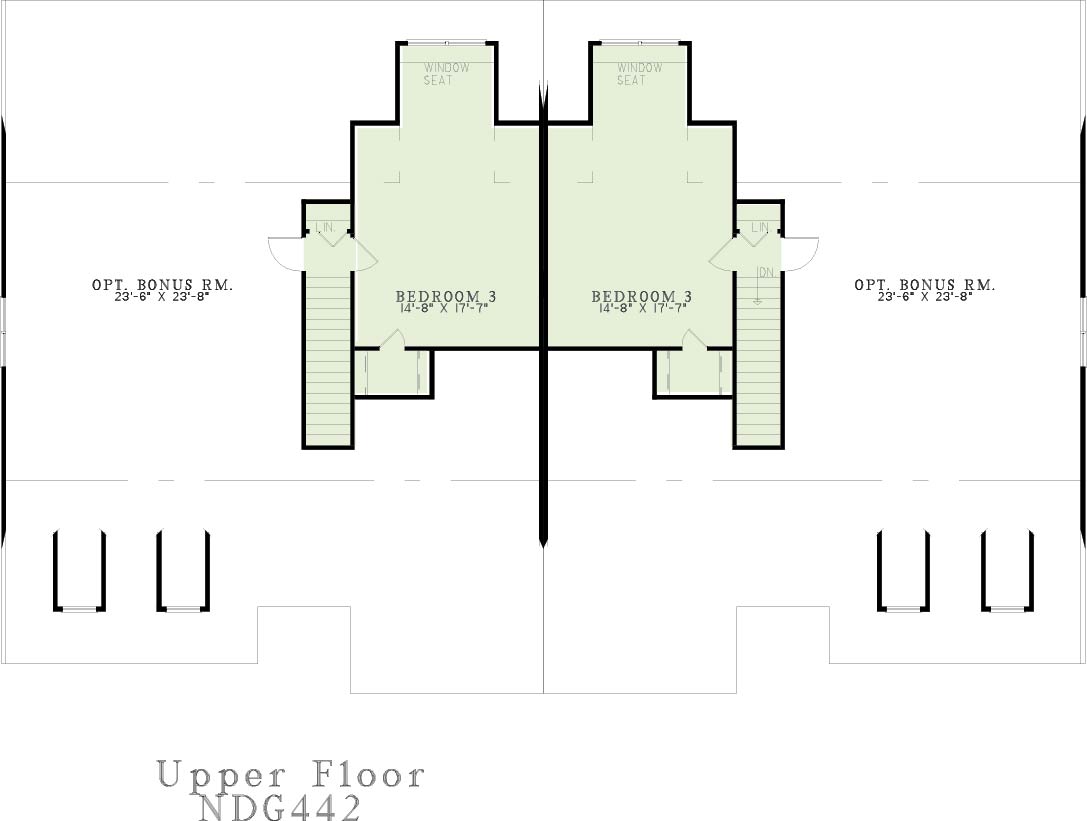

Floor Plans

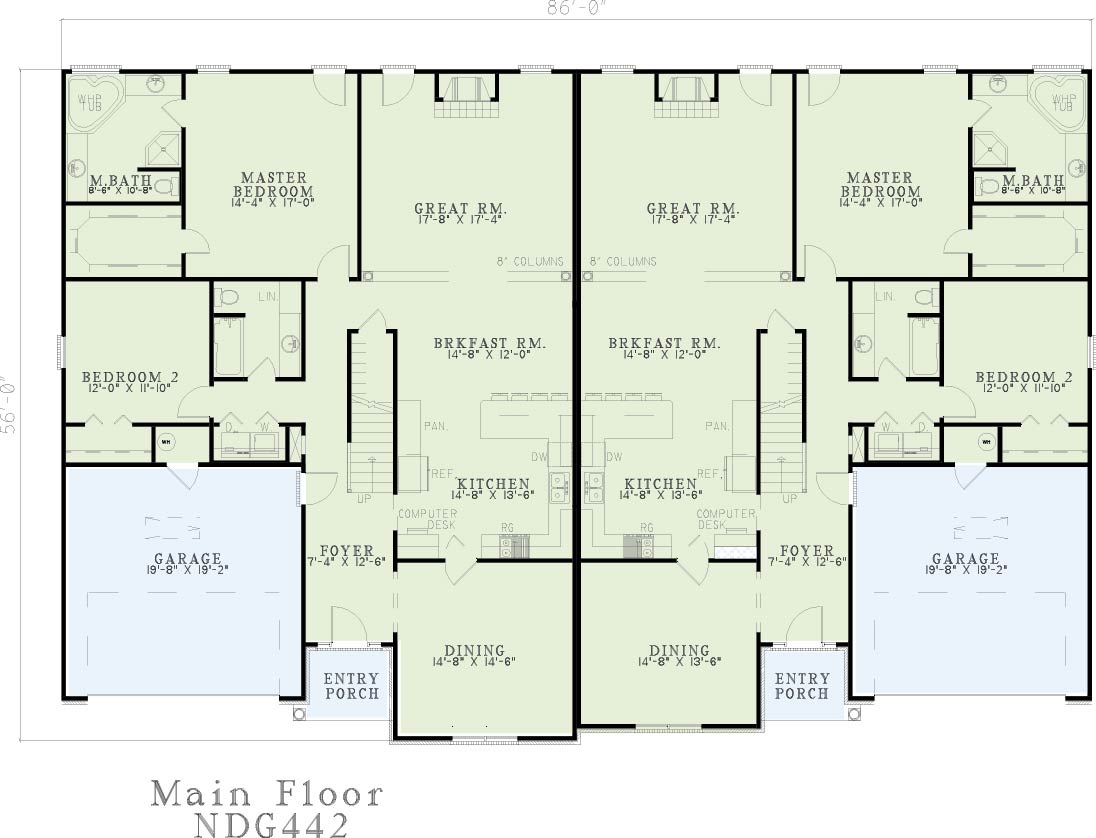

Floor Plan #1
Description
This duplex design features a spacious great room with columns, a cozy fireplace and access to a well-manicured backyard. Also opening to the great room is a large breakfast room with additional seating at the kitchen bar counter. A built-in computer desk in the kitchen will be great for study time and keeping an eye on computer time. The master suite is located on the main floor and has a large walk-in closet, private bathroom with corner whirlpool tub, separate shower and double vanities. The upstairs has an optional bonus room and a huge bedroom with window seat and walk-in closet.
Home Specifications
- Total Living Space: 2252
- Ridge Height (Ft.) 27
- Main Floor (Sq. Ft.): 1868 Sq.Ft
- Ridge Height (In.) 6
- Upper Floor (Sq. Ft.): 384 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 45 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 407 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 3
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 56
- Width (Ft): 86
- Depth (In.) N/A
- Width (In.) N/A
- Total Sq. Ft. 2704 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Formal Dining Room
- Great Room
- Main Floor Master
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
