House Plan NDG 319 – Maple Street | Nelson Design Group House Plans
Discover the perfect blend of traditional design and everyday comfort with House Plan NDG 319 – Maple Street, a thoughtfully designed home from Nelson Design Group that feels both inviting and functional. This charming single-story plan features 2 bedrooms and 2 full bathrooms within approximately 1,860 sq ft of living space, making it an ideal choice among popular “house plans” for couples, downsizers, or those looking for a stylish yet manageable footprint.

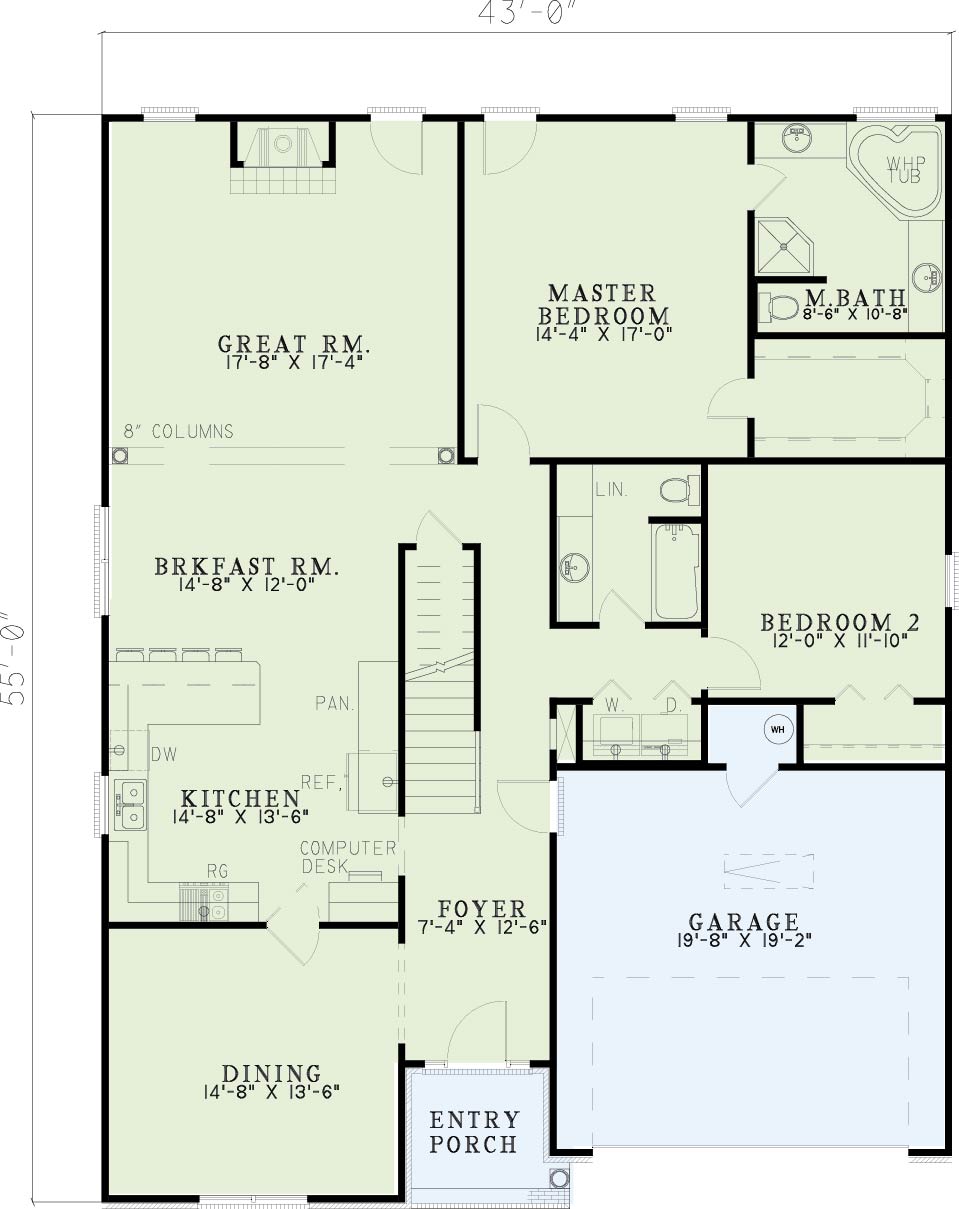

Step inside this well-proportioned layout and enjoy a comfortable floor plan that balances shared spaces and private retreats. The great room, defined by handsome columns, becomes the heart of your home — perfect for family gatherings or relaxing evenings. Adjacent to this space, the formal dining room with swinging door access connects seamlessly to the spacious kitchen, creating a purposeful flow for everyday meals and special occasions alike. A dedicated computer center adds modern convenience, letting you keep an eye on tasks while staying connected.

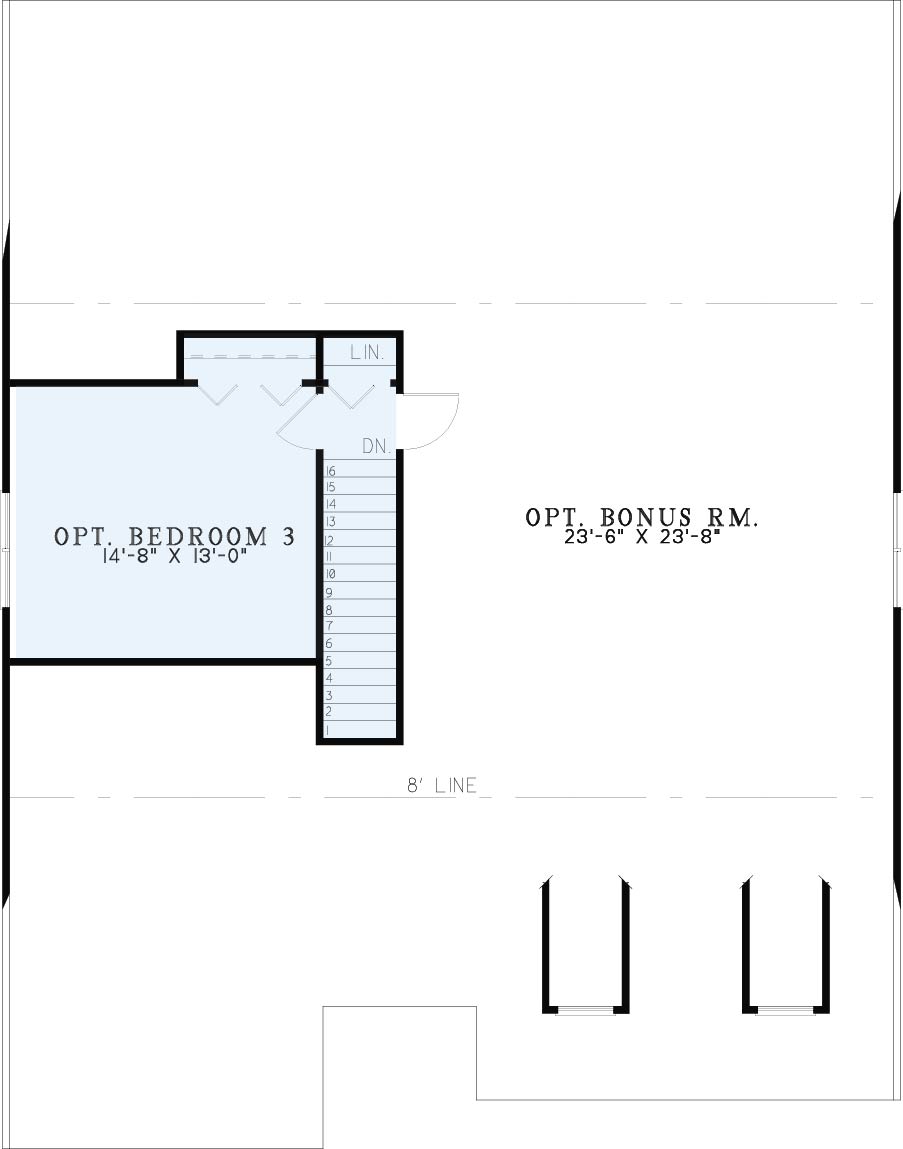

Your master suite offers a restful retreat, complete with a soothing full bath that includes a corner whirlpool tub, providing a private oasis to unwind each day. A second bedroom and full bathroom are thoughtfully arranged to support family members or guests with comfort and convenience. For added flexibility, an optional bonus room space upstairs gives you the freedom to add an extra bedroom, office, or hobby area if desired.
Home Specifications
- Total Living Space: 1860
- Ridge Height (Ft.) 27
- Main Floor (Sq. Ft.): 1860 Sq.Ft
- Ridge Height (In.) 4
- Upper Floor (Sq. Ft.): N/A
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 47 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 406 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 247 Sq.Ft.
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 2
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Stories: 1.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 55
- Width (Ft): 43
- Depth (In.) N/A
- Width (In.) N/A
- Total Sq. Ft. 2560 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus Room
- Covered Front Porch
- Formal Dining Room
- Great Room
- Main Floor Master
- Narrow Lot House Plans
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Walk-in Closet
