House Plan 5334 Stone Creek Falls, Riverbend House Plan

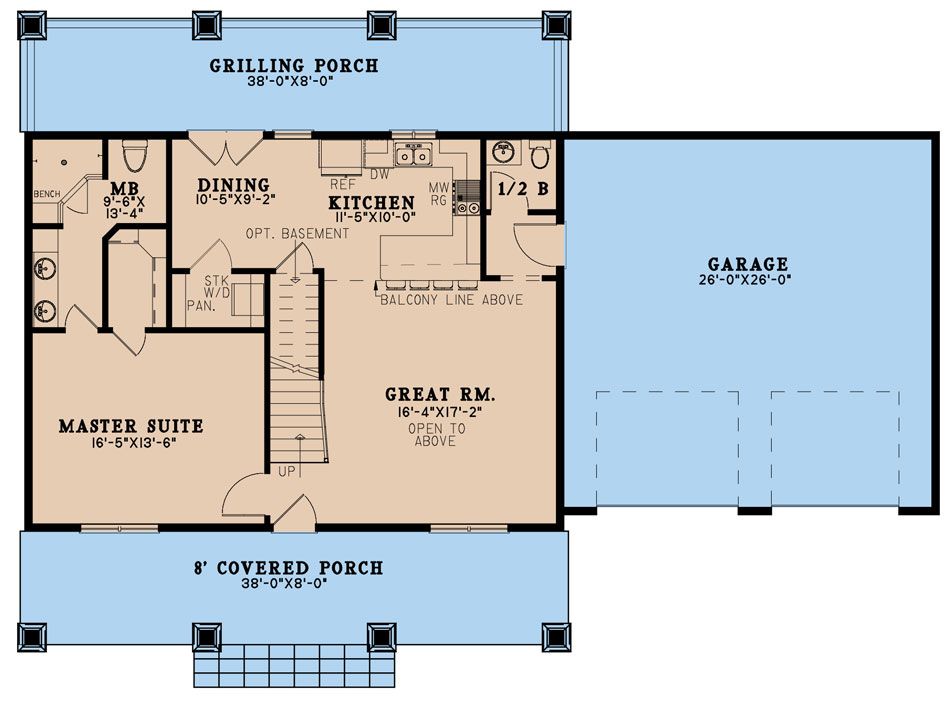

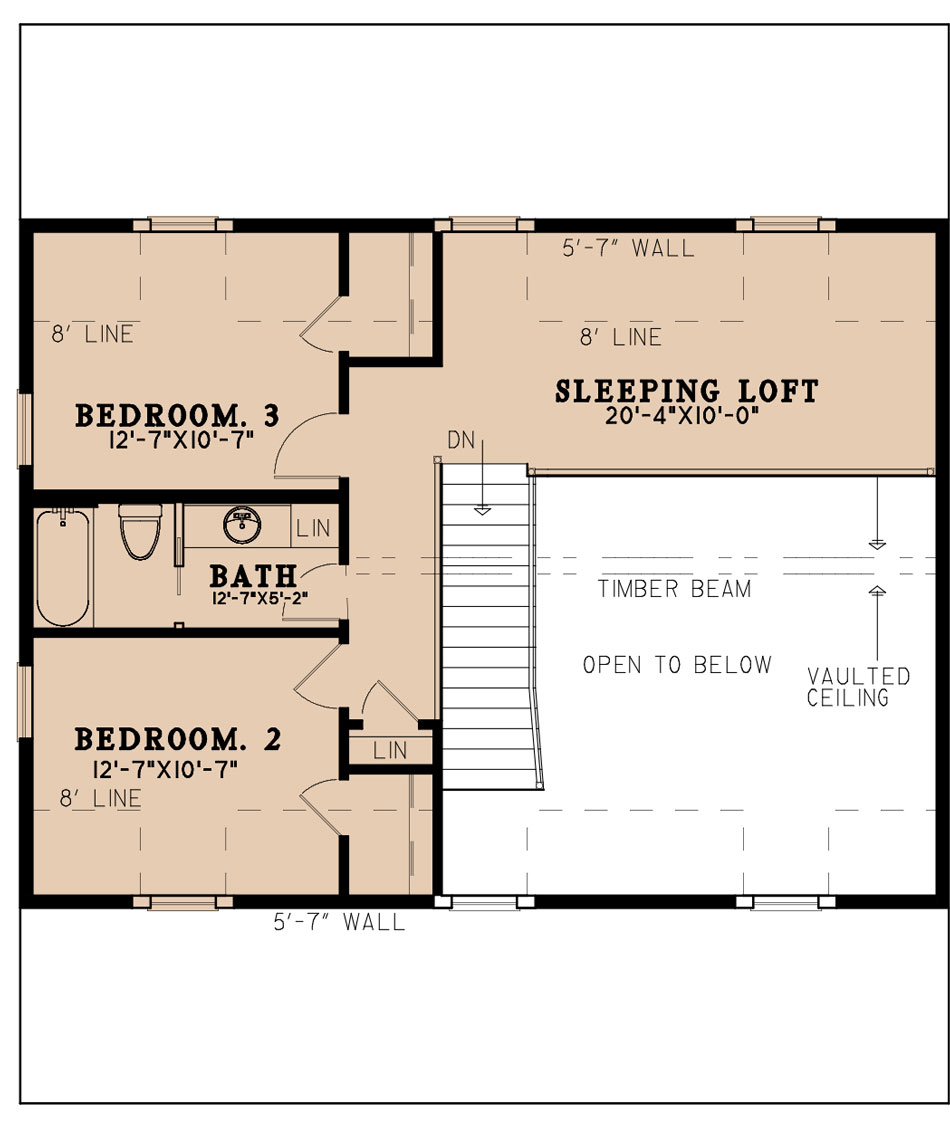

Floor plans

MEN 5334

House Plan 5334 Stone Creek Falls, Riverbend House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: MEN 5334
  • Total Living Space:1773Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 64
  • Width In.: 6
  • Depth Ft.: 44
  • Depth In.: 2

Description

Specifications

  • Total Living Space:1773Sq.Ft.
  • Main Floor: 1070 Sq.Ft
  • Upper Floor (Sq.Ft.): 703 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 608 Sq.Ft.
  • Garage (Sq.Ft.): 716 Sq.Ft.
  • Total Square Feet: 3097 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R19
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
