House Plan 1083 Maple Street, Arts and Crafts House Plan

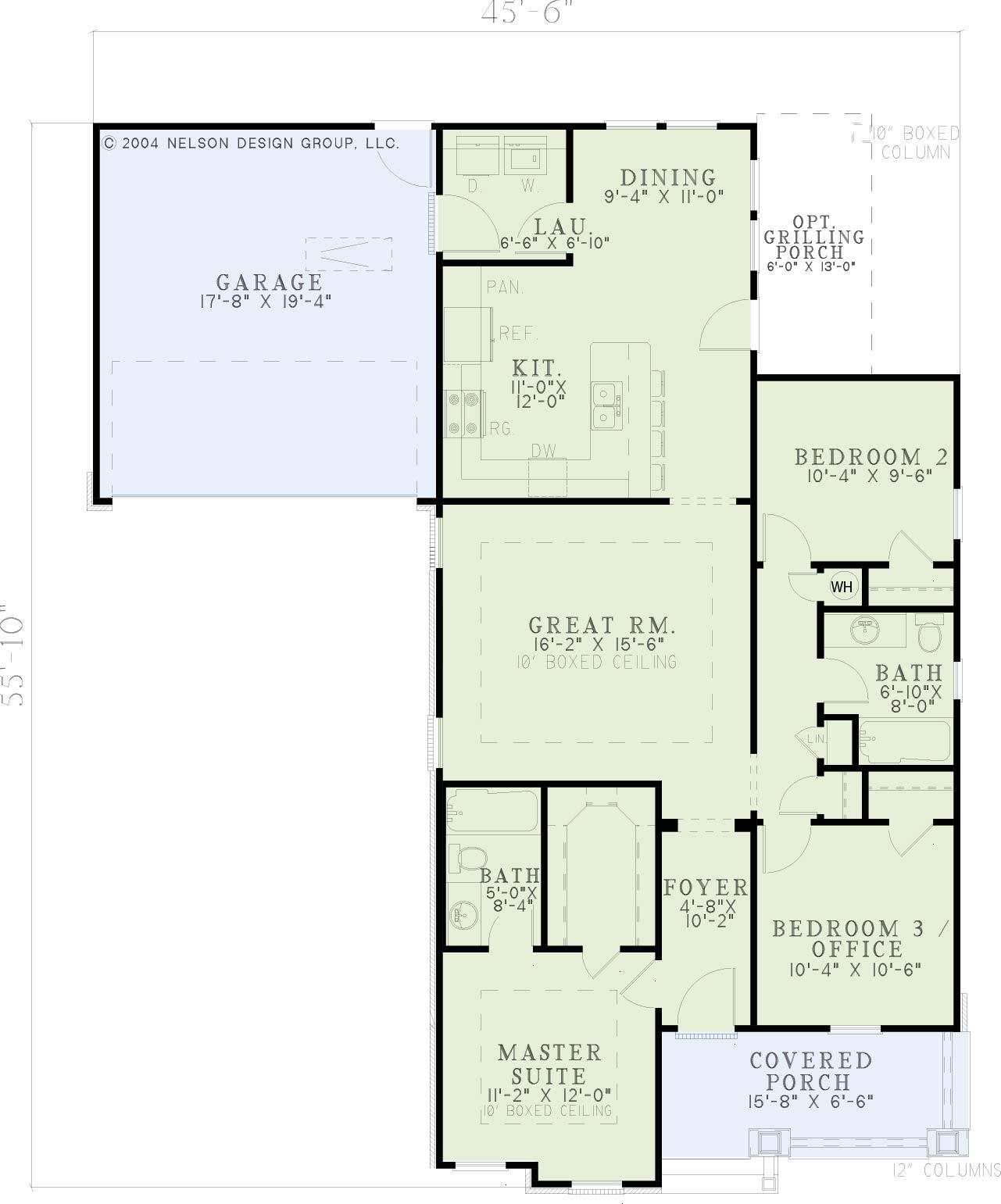

House Plan NDG 1083 Main Floor
House Plan NDG 1083 Main Floor

Floor plans

NDG 1083

House Plan 1083 Maple Street, Arts and Crafts House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1083
  • Total Living Space:1262Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 45
  • Width In.: 6
  • Depth Ft.: 55
  • Depth In.: 10

Description

Greet passersby from the covered front porch of this Nelson Design Group home. Through the foyer, enter the large great room accented by a boxed ceiling. Preparing and serving meals will be simplified with this amenity-filled kitchen and nearby dining area. A grilling porch option also lends to the possibility of outdoor meals. In addition to the comfortable master suite, two more bedrooms provide ample space for guests or the kids.

Specifications

  • Total Living Space:1262Sq.Ft.
  • Main Floor: 1262 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 103 Sq.Ft.
  • Garage (Sq.Ft.): 360 Sq.Ft.
  • Total Square Feet: 1725 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
