House Plan 1116 Olive Street, Country House Plan


Floor plans

NDG 1116

House Plan 1116 Olive Street, Country House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1116
  • Total Living Space:2394Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 76
  • Width In.: 4
  • Depth Ft.: 56
  • Depth In.: 4

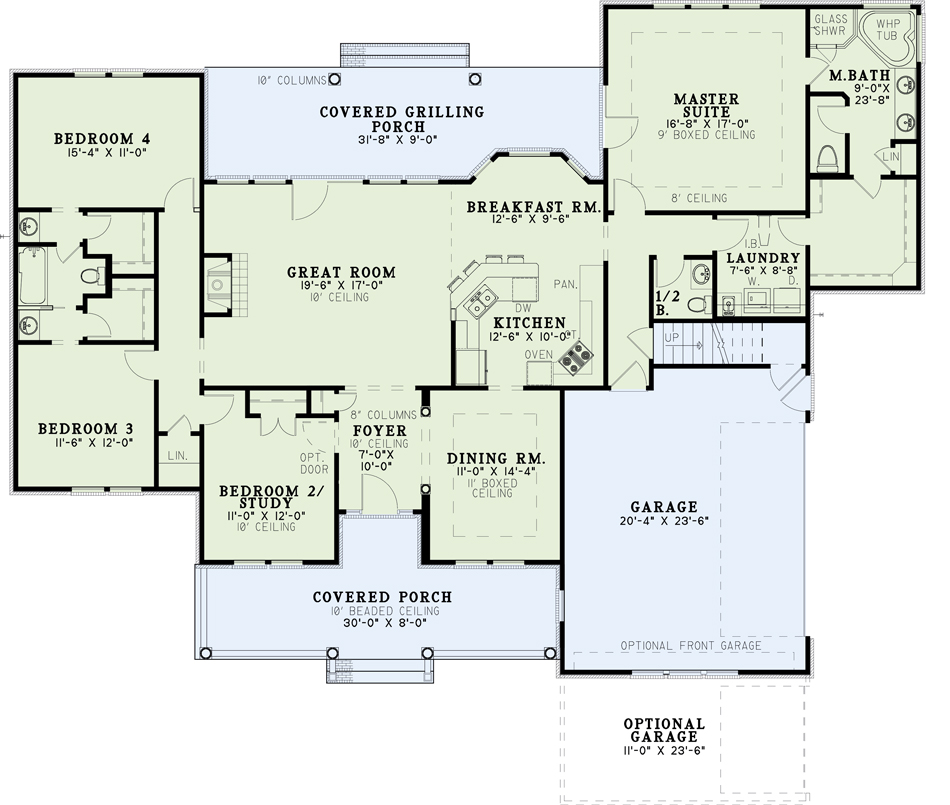

This extraordinary home showcases a master suite so elegant it demands its own wing. You’ll have a tough time deciding where to entertain with two impressive covered porches and a delightful great room with a cozy fireplace. The center foyer opens the elegant dining room with boxed ceiling and an optional study. This master suite includes amenities such as a nine foot boxed ceiling in the bedroom, a huge walk-in closet, and a corner whirlpool tub in the master bath. An upper bonus room option truly allows you to make this home your own.


  • Total Living Space:2394Sq.Ft.
  • Main Floor: 2394 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A

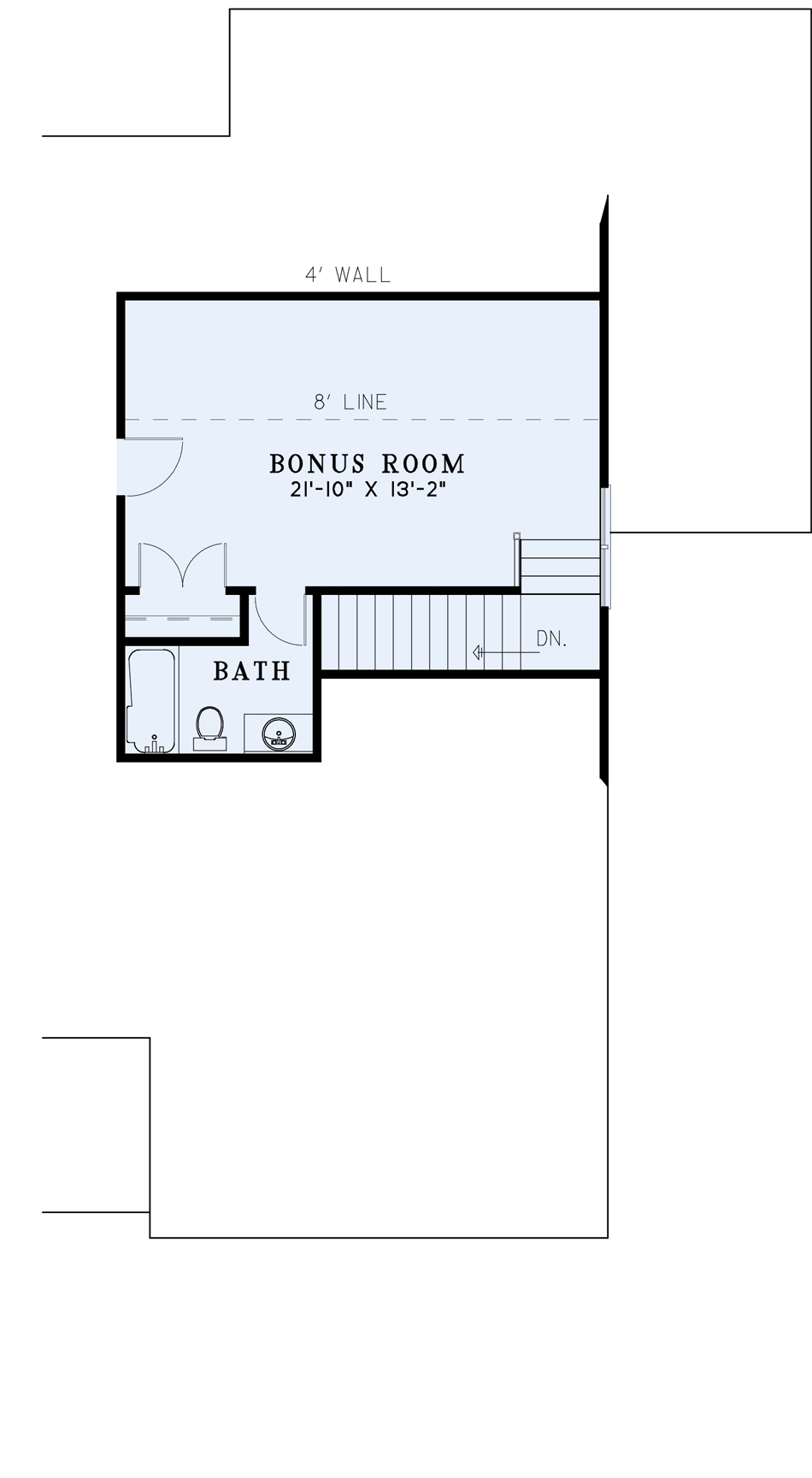

  • Bonus Room (Sq.Ft.): 367 Sq.Ft.
  • Porch (Sq.Ft.): 553 Sq.Ft.
  • Garage (Sq.Ft.): 521 Sq.Ft.
  • Total Square Feet: 3835 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
