House Plan 1174 Edison Lane, Heritage House Plan

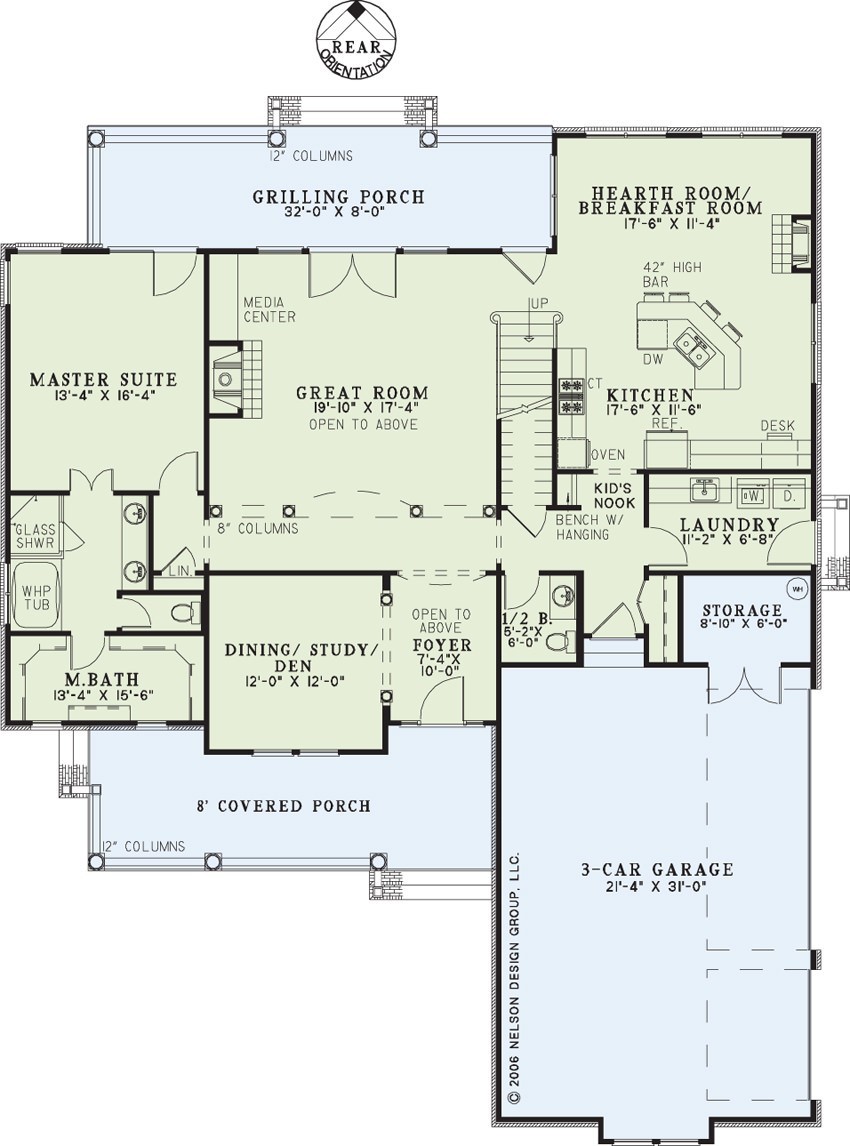

House Plan NDG 1174 Main Floor

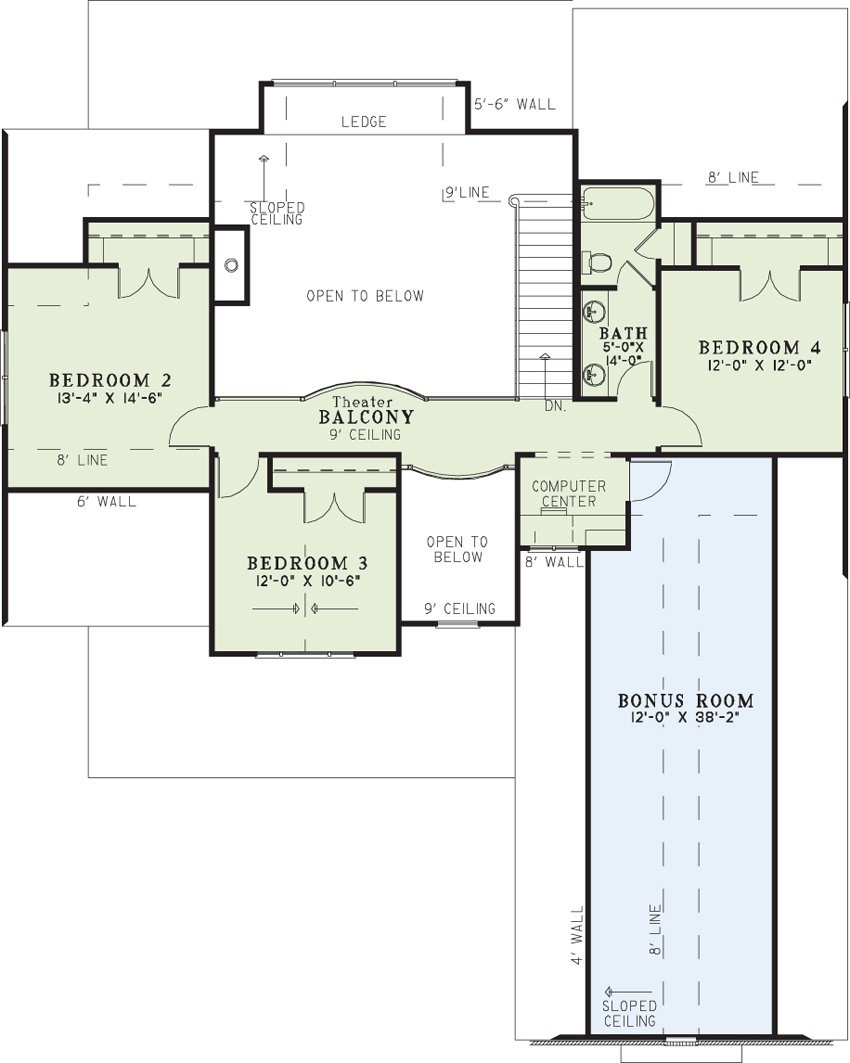

House Plan NDG 1174 Upper Floor
House Plan NDG 1174 Main Floor
House Plan NDG 1174 Upper Floor

Floor plans

NDG 1174

House Plan 1174 Edison Lane, Heritage House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1174
  • Total Living Space:2708Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 55
  • Width In.: 10
  • Depth Ft.: 69
  • Depth In.: 8

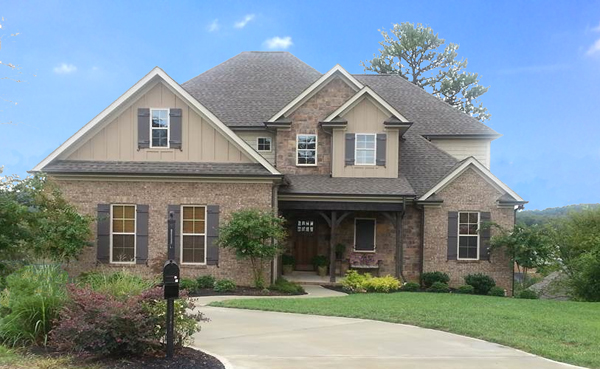

This 2 story Heritage Collection home is full of charm inside and out. Brick and siding grace the exterior with copper shed roofing detail and a large covered porch. The foyer opens to the great room featuring columns, a fireplace, media center, and French doors leading out to the grilling porch. The master suite is accessible to the grilling porch as well. The master bathroom has a whirlpool tub under a window for added relaxation and a glass shower. And the large walk-in close will have plenty of natural light with 2 windows. The kitchen features an island bar and is open to the hearth room/breakfast room with a fireplace. Upstairs are 2 theater balconies, one overlooking the great room, the other overlooking the foyer. 3 more bedrooms , a full bathroom and a computer center are also upstairs, as well as large bonus room, perfect for games, home theater or even both.


  • Total Living Space:2708Sq.Ft.
  • Main Floor: 1850 Sq.Ft
  • Upper Floor (Sq.Ft.): 858 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 469 Sq.Ft.
  • Porch (Sq.Ft.): 510 Sq.Ft.
  • Garage (Sq.Ft.): 766 Sq.Ft.
  • Total Square Feet: 4453 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
