House Plan 1219 Martin's Landing, Heritage House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1219
  • Total Living Space:2083Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: 8
  • Depth Ft.: 64
  • Depth In.: 4


This plan is loaded with character inside and out, from the decorative woodwork in the gables to the stone based columns on the front covered porch. Inside, the dining room features 8″ columns, a 10′ ceiling, and the doorway to the kitchen is on a 45 degree angle. The kitchen is open to the breakfast room and great room and has a peninsula bar, perfect for entertaining and quick meals. You can enjoy the fireplace in the great room or out on the grilling porch. Retreat into relaxation in the master suite featuring another fireplace and a 10′ boxed ceiling. And the master bath offers a large corner whirlpool tub and a large walk-in closet. Bedrooms 2 and 3 have walk-in closets and bedroom 4 has a pair of closets. There’s also a bonus room over the garage providing many different options.


  • Total Living Space:2083Sq.Ft.
  • Main Floor: 2083 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A

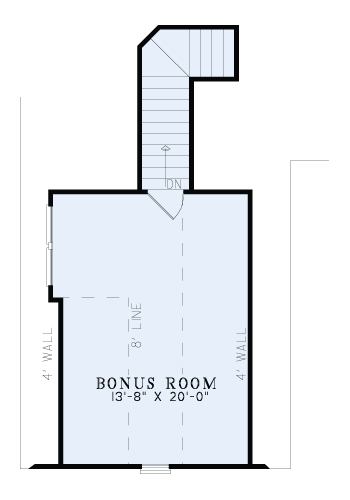

  • Bonus Room (Sq.Ft.): 302 Sq.Ft.
  • Porch (Sq.Ft.): 496 Sq.Ft.
  • Garage (Sq.Ft.): 442 Sq.Ft.
  • Total Square Feet: 3323 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
